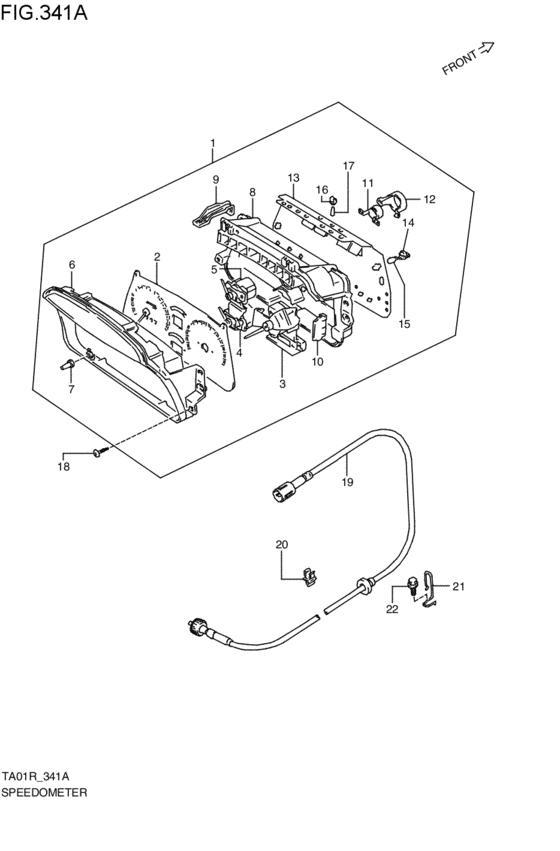

speed meter (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-61A10-000
スピードメータアッシ,コンビネーション
DENSO; 1988-05-01~1990-07-01 |
34100-61A10-000 |
— | ||
|
2
|
2
34120-60A50-000
ボディアッシ,スピードメータ
DENSO; 1988-05-01~1990-07-01 |
34120-60A50-000 |
— | ||
| replacement | |||||
|
2
|
2
34120-70E01-000 BODY ASSY,SPEEDOMETERDENSO; 1988-05-01~1990-07-01 |
34120-70E01-000 |
US $408.32 |
||
|
3
|
3
34220-60A10-000
ボディアッシ,タコメータ
DENSO; 1988-05-01~1990-07-01 |
34220-60A10-000 |
— | ||
|
4
|
4
34320-60A10-000
BODY ASSY,FUEL METER
DENSO; 1988-05-01~1990-07-01 |
34320-60A10-000 |
— | ||
|
5
|
5
34420-60A10-000 BODY ASSY,TEMP METERDENSO; 1988-05-01~1990-07-01 |
34420-60A10-000 |
US $76.54 |
||
|
6
|
6
34113-60A10-000
GLASS,FR
DENSO; 1988-05-01~1990-07-01 |
34113-60A10-000 |
— | ||
|
7
|
7
34145-80200-000 COVER,TRIP METER NOBDENSO; 1988-05-01~1990-07-01 |
34145-80200-000 |
US $2.24 |
||
|
8
|
8
34151-60A50-000
ケース,メータ
DENSO; 1988-05-01~1990-07-01 |
34151-60A50-000 |
— | ||
|
9
|
9
34950-60A10-000
BRACKET,METER
DENSO; 1988-05-01~1990-07-01 |
34950-60A10-000 |
— | ||
|
10
|
10
34155-80300-000
プレート,ヒートウォーニング
DENSO; 1988-05-01~1990-07-01 |
34155-80300-000 |
— | ||
|
11
|
11
34160-50A20-000
BUZZER ASSY
DENSO; 1988-05-01~1990-07-01 |
34160-50A20-000 |
— | ||
|
12
|
12
34161-60A50-000
カバー,スピードウォーナ
DENSO; 1988-05-01~1990-07-01 |
34161-60A50-000 |
— | ||
|
13
|
13
34152-61A10-000
プレート,プリンテッド
DENSO; 1988-05-01~1990-07-01 |
34152-61A10-000 |
— | ||
|
14
|
14
34172-82060-000
ソケット
DENSO; 1988-05-01~1990-07-01 |
34172-82060-000 |
— | ||
| replacement | |||||
|
14
|
14
34172-50E10-000 SOCKETDENSO; 1988-05-01~1990-07-01 |
34172-50E10-000 |
US $1.60 |
||
|
15
|
15
09471-12092-000 BULB(12V3.4W G30)DENSO; 1988-05-01~1990-07-01 |
09471-12092-000 |
US $2.56 |
||
|
16
|
16
34175-78900-000 SOCKETDENSO ブラック; 1988-05-01~1990-07-01 |
34175-78900-000 |
US $1.52 |
||
|
17
|
17
09471-12055-000 BULB(14V1.4W,T5)DENSO; 1988-05-01~1990-07-01 |
09471-12055-000 |
from US $2.40 |
||
|
18
|
18
03511-15208-000
スクリュ
1988-05-01~1990-07-01 |
03511-15208-000 |
— | ||
| replacement | |||||
|
18
|
18
03541-0520A-000 SCREW1988-05-01~1990-07-01 |
03541-0520A-000 |
from US $0.76 |
||
|
19
|
19
34910-60A00-000
ケーブルアッシ,スピードメータ
1988-05-01~1990-07-01 |
34910-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
34910-62A40-000 CABLE ASSY,SPEEDOMETER1988-05-01~1990-07-01 |
34910-62A40-000 |
US $92 |
||
|
20
|
20
09403-07306-000 CLAMPClamp 1988-05-01~1990-07-01 |
09403-07306-000 |
from US $2.56 |
||
|
21
|
21
34926-60A00-000 CLAMP,SPEEDOMETER CABLE,NO.31988-05-01~1990-07-01 |
34926-60A00-000 |
US $9.12 |
||
|
22
|
22
01517-06106-000
Bolt, t/f shift plate
1988-05-01~1990-07-01 |
01517-06106-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0610B-000 BoltBolt 1988-05-01~1990-07-01 |
01550-0610B-000 |
from US $0.80 |
||
|
22
|
22
01550-0610A-000 BOLT1988-05-01~1990-07-01 |
01550-0610A-000 |
from US $0.80 |
||
