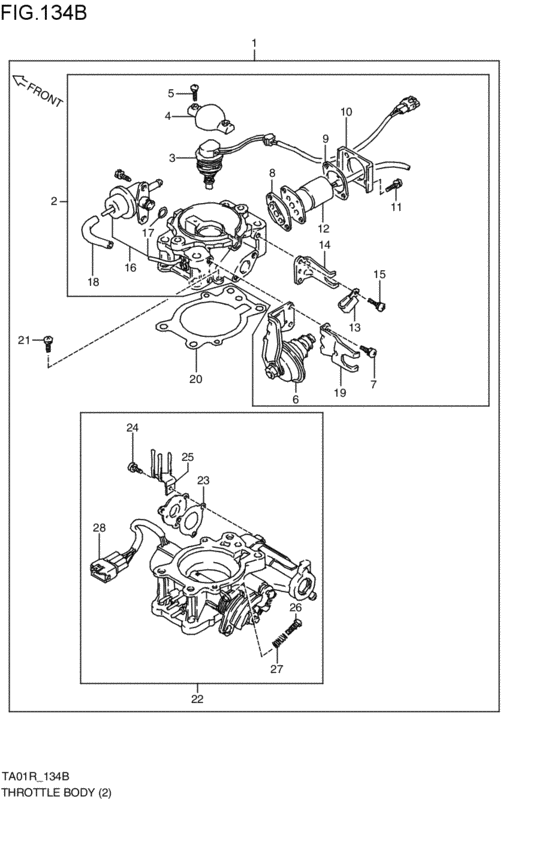

throttle body (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-61A50-000
ボディアッシ,スロットル
3AT; 1988-05-01~1990-07-01 |
13400-61A50-000 |
— | ||
| replacements | |||||
|
1
|
1
13400-61A70-000
Body assy,throttle
3AT; 1988-05-01~1990-07-01 |
13400-61A70-000 |
— | ||
|
1
|
1
15910-61A02-000 CABLE ASSY,ACCEL3AT; 1988-05-01~1990-07-01 |
15910-61A02-000 |
US $24.66 |
||
|
1
|
1
13400-61A51-000
ボディアッシ,スロットル
3AT; 1988-05-01~1990-07-01 |
13400-61A51-000 |
— | ||
| replacement | |||||
|
1
|
1
13400-61A70-000
Body assy,throttle
3AT; 1988-05-01~1990-07-01 |
13400-61A70-000 |
— | ||
|
2
|
2
13401-61A10-000
ボディアッシ,ミキシング
3AT; 1988-05-01~1990-07-01 |
13401-61A10-000 |
— | ||
|
2
|
2
13401-61A11-000
ボディアッシ,ミキシング
3AT; 1988-05-01~1990-07-01 |
13401-61A11-000 |
— | ||
|
3
|
3
15710-61A00-000
INJECTOR ASSY,FUEL
3AT; 1988-05-01~1990-07-01 |
15710-61A00-000 |
— | ||
|
4
|
4
13431-61A10-000
カバー
3AT; 1988-05-01~1990-07-01 |
13431-61A10-000 |
— | ||
|
5
|
5
13439-61A00-000 SCREW3AT; 1988-05-01~1990-07-01 |
13439-61A00-000 |
US $5.56 |
||
|
6
|
6
13432-61A00-000
BRACKET ASSY,DEPRESSION
3AT; 1988-05-01~1990-07-01 |
13432-61A00-000 |
— | ||
|
7
|
7
13438-61A00-000
スクリュ
3AT; 1988-05-01~1990-07-01 |
13438-61A00-000 |
— | ||
| replacements | |||||
|
7
|
7
02112-3512A-000 SCREW3AT; 1988-05-01~1990-07-01 |
02112-3512A-000 |
from US $1.47 |
||
|
7
|
7
02112-35123-000
Screw, rubber stop
3AT; 1988-05-01~1990-07-01 |
02112-35123-000 |
— | ||
|
8
|
8
13451-61A00-000
SEAT,RUBBER
3AT; 1988-05-01~1990-07-01 |
13451-61A00-000 |
— | ||
|
9
|
9
13452-61A00-000 FLANGE3AT; 1988-05-01~1990-07-01 |
13452-61A00-000 |
US $9.16 |
||
|
10
|
10
13453-61A00-000
HOLDER
3AT; 1988-05-01~1990-07-01 |
13453-61A00-000 |
— | ||
|
11
|
11
02112-35163-000
Screw
3AT; 1988-05-01~1990-07-01 |
02112-35163-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-3516A-000 SCREW3AT; 1988-05-01~1990-07-01 |
02112-3516A-000 |
from US $0.76 |
||
|
12
|
12
13450-61A00-000
SOLENOID ASSY
3AT; 1988-05-01~1990-07-01 |
13450-61A00-000 |
— | ||
|
13
|
13
13446-61A00-000
クリップ
3AT; 1988-05-01~1990-07-01 |
13446-61A00-000 |
— | ||
| replacements | |||||
|
13
|
13
09404-06432-000
CLAMP(L:65)
3AT; 1988-05-01~1990-07-01 |
09404-06432-000 |
— | ||
|
13
|
13
09404-06402-000
Clamp, hose (l:60)
3AT; 1988-05-01~1990-07-01 |
09404-06402-000 |
— | ||
|
13
|
13
09404-06206-000
CLAMP(L:45)
3AT; 1988-05-01~1990-07-01 |
09404-06206-000 |
— | ||
|
13
|
13
09404-06039-000 Clamp(L:65)3AT; 1988-05-01~1990-07-01 |
09404-06039-000 |
from US $1.82 |
||
|
13
|
13
09404-06031-000 Clamp,rsvr Tank Ovfl Hose3AT; 1988-05-01~1990-07-01 |
09404-06031-000 |
from US $1.37 |
||
|
14
|
14
13433-61A00-000
ブラケット
3AT; 1988-05-01~1988-12-01 |
13433-61A00-000 |
— | ||
|
14
|
14
13433-61A01-000
ブラケット
3AT; 1988-12-01~1990-07-01 |
13433-61A01-000 |
— | ||
|
15
|
15
02112-35123-000
Screw, rubber stop
3AT; 1988-05-01~1990-07-01 |
02112-35123-000 |
— | ||
|
16
|
16
15160-61A00-000
Regulator assy
3AT; 1988-05-01~1990-07-01 |
15160-61A00-000 |
— | ||
|
17
|
17
15167-61A00-000 O-RING3AT; 1988-05-01~1990-07-01 |
15167-61A00-000 |
US $6.07 |
||
|
18
|
18
13454-61A00-000
ホース
3AT; 1988-05-01~1990-07-01 |
13454-61A00-000 |
— | ||
| replacement | |||||
|
18
|
18
13687-72B00-000 HOSE,L:2753AT; 1988-05-01~1990-07-01 |
13687-72B00-000 |
US $12.44 |
||
|
19
|
19
13434-61A10-000
ブラケット
3AT; 1988-05-01~1990-07-01 |
13434-61A10-000 |
— | ||
|
20
|
20
13441-61A00-000 GASKET3AT; 1988-05-01~1990-07-01 |
13441-61A00-000 |
US $26.40 |
||
|
21
|
21
02112-35123-000
Screw, rubber stop
3AT; 1988-05-01~1990-07-01 |
02112-35123-000 |
— | ||
|
22
|
22
13402-61A50-000
ボディアッシ,スロットルバルブ
3AT; 1988-05-01~1988-12-01 |
13402-61A50-000 |
— | ||
| replacement | |||||
|
22
|
22
15910-61A02-000 CABLE ASSY,ACCEL3AT; 1988-05-01~1988-12-01 |
15910-61A02-000 |
US $24.66 |
||
|
22
|
22
13402-61A51-000
ボディアッシ,スロットルバルブ
3AT; 1988-12-01~1990-07-01 |
13402-61A51-000 |
— | ||
|
23
|
23
13442-61A00-000 GASKET3AT; 1988-05-01~1990-07-01 |
13442-61A00-000 |
US $11.52 |
||
|
24
|
24
02112-35123-000
Screw, rubber stop
3AT; 1988-05-01~1990-07-01 |
02112-35123-000 |
— | ||
|
25
|
25
13445-61A00-000
Clip
3AT; 1988-05-01~1990-07-01 |
13445-61A00-000 |
— | ||
|
26
|
26
13443-61A00-000
SCREW,ADJUST
3AT; 1988-05-01~1990-07-01 |
13443-61A00-000 |
— | ||
|
27
|
27
13444-61A00-000 SPRING3AT; 1988-05-01~1990-07-01 |
13444-61A00-000 |
from US $2.40 |
||
|
28
|
28
13420-56B00-000 SENSOR,THROTTLE POSITION3AT; 1988-05-01~1990-07-01 |
13420-56B00-000 |
US $320 |
||
