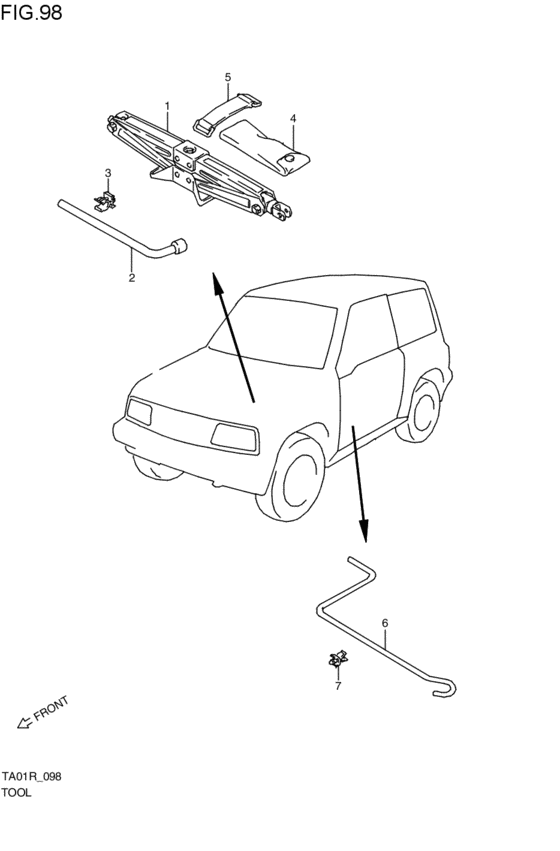

tool (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1989 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SB
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09824-00036-000
ジャッキアッシ
1988-05-01~1990-07-01 |
09824-00036-000 |
— | ||
| replacements | |||||
|
1
|
1
89913-77EVV-000 JACK ASSY1988-05-01~1990-07-01 |
89913-77EVV-000 |
US $160 |
||
|
1
|
1
89913-77EV1-000
JACK COMP
1988-05-01~1990-07-01 |
89913-77EV1-000 |
— | ||
|
1
|
1
89910-70A40-000
ジャッキアッシ
1988-05-01~1990-07-01 |
89910-70A40-000 |
— | ||
|
1
|
1
09824-00032-000
ジャッキアッシ
1988-05-01~1990-07-01 |
09824-00032-000 |
— | ||
|
1
|
1
89913-77EV0-000
ジャッキアッシ
1988-05-01~1990-07-01 |
89913-77EV0-000 |
— | ||
|
2
|
2
09816-00074-000 WRENCH,WHEEL(19)1988-05-01~1990-07-01 |
09816-00074-000 |
US $14.13 |
||
|
3
|
3
09403-13307-000 CLAMP1988-05-01~1990-07-01 |
09403-13307-000 |
US $21.30 |
||
|
4
|
4
09800-40005-000
ツールアッシ
1988-05-01~1990-07-01 |
09800-40005-000 |
— | ||
| replacement | |||||
|
4
|
4
09800-40024-000 TOOL ASSYSpanner, wheel wrench, pliers, screwdriver, jack handle; 1988-05-01~1990-07-01 |
09800-40024-000 |
US $135.20 |
||
|
5
|
5
09462-00008-000 BANDBand, battery 1988-05-01~1990-07-01 |
09462-00008-000 |
from US $4.80 |
||
|
6
|
6
09824-00056-000
ハンドル
1988-05-01~1990-07-01 |
09824-00056-000 |
— | ||
| replacement | |||||
|
6
|
6
89931-56B00-000 HANDLE,JACK1988-05-01~1990-07-01 |
89931-56B00-000 |
US $14.88 |
||
|
7
|
7
09403-08319-000
クランプ
1988-05-01~1990-07-01 |
09403-08319-000 |
— | ||
| replacement | |||||
|
7
|
7
09403-08323-000 CLAMP1988-05-01~1990-07-01 |
09403-08323-000 |
from US $1.76 |
||
