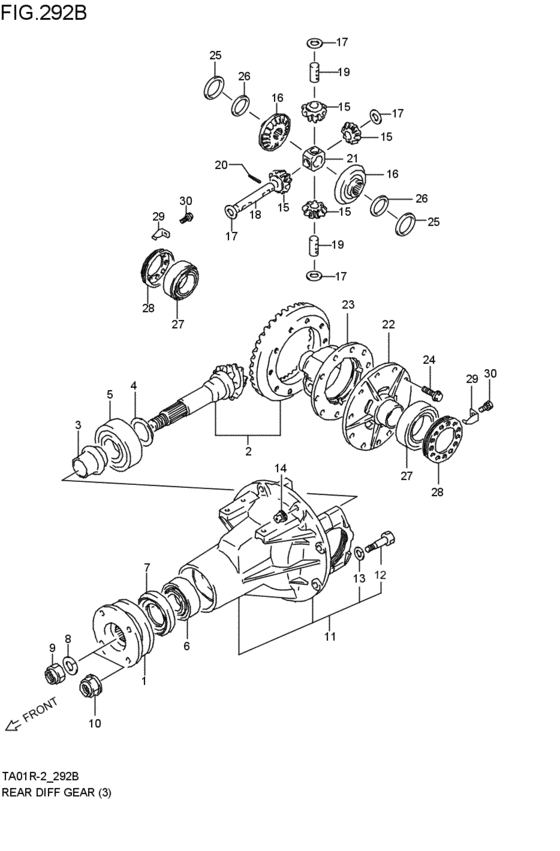

リヤデファレンシャルギヤ (LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~) Diagram Suzuki ESCUDO
- Year
- 1992 - 1993
- Sales region
- Japan
- Engine
- 4V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 4AT
- Number of doors
- 2DR
- grade
- SD3
- type
- T3
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINTLSDナシ; (SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3)):2DR; 1991-03-01~ |
27110-56B01-000 |
US $131.20 |
||
|
1
|
1
27110-60A00-000
フランジ,ユニバーサルジョイント
LSDナシ; (SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3)):2DR; 1990-08-01~1991-03-01 |
27110-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
27110-56B01-000 FLANGE,UNIVERSAL JOINTLSDナシ; (SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3)):2DR; 1990-08-01~1991-03-01 |
27110-56B01-000 |
US $131.20 |
||
|
2
|
2
27300-60840-000
ベベルピニオン/ギヤセット
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~1991-03-01 |
27300-60840-000 |
— | ||
| replacements | |||||
|
2
|
2
27300-60845-000
Bevel pinion & gear set
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~1991-03-01 |
27300-60845-000 |
— | ||
|
2
|
2
27110-56B01-000 FLANGE,UNIVERSAL JOINTLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~1991-03-01 |
27110-56B01-000 |
US $131.20 |
||
|
3
|
3
27300-60841-000
ベベルピニオン/ギヤセット
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1991-03-01~1992-05-01 |
27300-60841-000 |
— | ||
| replacement | |||||
|
3
|
3
27300-60845-000
Bevel pinion & gear set
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1991-03-01~1992-05-01 |
27300-60845-000 |
— | ||
|
3
|
3
27300-61821-000
ベベルピニオン/ギヤセット
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1992-05-01~ |
27300-61821-000 |
— | ||
| replacement | |||||
|
3
|
3
27300-61842-000
BEVEL PINION&GEAR SET
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1992-05-01~ |
27300-61842-000 |
— | ||
|
4
|
4
27315-60A01-000 SPACER,DRIVE BEVEL PINIONLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27315-60A01-000 |
US $28 |
||
|
5
|
5
09181-35012-000 SHIM(35X42X1)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35012-000 |
US $25 |
||
|
5
|
5
09181-35014-000
Shim 35x42x1.06
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35014-000 |
— | ||
|
5
|
5
09181-35016-000
シム,T:1.12
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35016-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-35117-000 SHIM(35X42X1.12)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35117-000 |
US $21.70 |
||
|
5
|
5
09181-35018-000
シム,T:1.18
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35018-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-35119-000 SHIM(35X42X1.18)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35119-000 |
from US $1.82 |
||
|
5
|
5
09181-35020-000
シム,T:1.24
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35020-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-35122-000 SHIM(35X42X1.24)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35122-000 |
US $21.70 |
||
|
5
|
5
09181-35022-000
シム,T:1.30
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35022-000 |
— | ||
| replacement | |||||
|
5
|
5
09181-35125-000 SHIM(35X42X1.3)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35125-000 |
US $21.70 |
||
|
5
|
5
09181-35023-000 SHIM(35X42X0.3)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35023-000 |
US $2.24 |
||
| replacement | |||||
|
5
|
5
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09181-35101-000 |
from US $1.35 |
||
|
6
|
6
09265-35002-000
ベアリング,35X80X22.75
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09265-35002-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-35011-000 BEARING(35X80X22.75)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09265-35011-000 |
US $40 |
||
|
7
|
7
09265-30010-000 BEARING(30X72X20.75)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09265-30010-000 |
US $45.60 |
||
|
8
|
8
09283-40027-000 SEAL,OIL(40x72x11x18)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09283-40027-000 |
from US $7.25 |
||
|
9
|
9
09160-20056-000 WASHER(20.1X36X4)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~1991-08-01 |
09160-20056-000 |
US $2.88 |
||
|
10
|
10
27375-60A00-000 NUT,UNIVERSAL JOINTLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~1991-08-01 |
27375-60A00-000 |
from US $5.11 |
||
|
11
|
11
27450-60840-000
Carrier set,diff
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27450-60840-000 |
— | ||
| replacement | |||||
|
11
|
11
27450-60850-000 CARRIER SET,DIFFLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27450-60850-000 |
US $397.44 |
||
|
12
|
12
09111-12009-000
ボルト,12X61
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09111-12009-000 |
— | ||
| replacement | |||||
|
12
|
12
09111-12010-000 BOLT(12X58)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09111-12010-000 |
US $2.43 |
||
|
13
|
13
08321-01123-000
Washer
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
08321-01123-000 |
— | ||
| replacement | |||||
|
13
|
13
08321-0112A-000 WASHER,LOCKLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
08321-0112A-000 |
from US $0.76 |
||
|
14
|
14
09159-10091-000 NUTLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09159-10091-000 |
US $2.88 |
||
|
15
|
15
27331-83020-000 PINION,DIFFERENTIALLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27331-83020-000 |
from US $31.39 |
||
| replacements | |||||
|
15
|
15
27331-76A20-000
PINION,DIFFERENTIAL
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27331-76A20-000 |
— | ||
|
15
|
15
27331-76A21-000 Pinion,differentialLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27331-76A21-000 |
from US $43.75 |
||
|
16
|
16
27341-60A10-000
GEAR,DIFF
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27341-60A10-000 |
— | ||
|
17
|
17
09164-15006-000 WASHERLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09164-15006-000 |
from US $1.58 |
||
|
18
|
18
27351-64B20-000 SHAFT,DIFF SIDE PINIONLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27351-64B20-000 |
US $20.80 |
||
|
19
|
19
27355-60A01-000
シャフト,ディファレンシャルピニオン,NO.2
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27355-60A01-000 |
— | ||
| replacement | |||||
|
19
|
19
27355-77E00-000 SHAFT,DIFF PINION NO.2LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27355-77E00-000 |
US $21.34 |
||
|
20
|
20
09205-05007-000 PIN,SPRING(5X36)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09205-05007-000 |
US $1.76 |
||
|
21
|
21
27356-86081-000 JOINT,DIFF PINION SHAFTLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27356-86081-000 |
from US $25.29 |
||
|
22
|
22
27411-60A20-000
CASE,DIFF,L
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~1992-05-01 |
27411-60A20-000 |
— | ||
|
22
|
22
27411-60A21-000
ケース,ディファレンシャル,レフト
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1992-05-01~ |
27411-60A21-000 |
— | ||
| replacements | |||||
|
22
|
22
27411-60A22-000 CASE,DIFF,LLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1992-05-01~ |
27411-60A22-000 |
US $114.45 |
||
|
22
|
22
27421-60A13-000 CASE,DIFF,RLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1992-05-01~ |
27421-60A13-000 |
US $195.04 |
||
|
23
|
23
27421-60A11-000
CASE,DIFF,R
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~1992-05-01 |
27421-60A11-000 |
— | ||
|
24
|
24
09103-10184-000 BOLT(10X25)LSDナシ; (SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3)):4AT; 1990-08-01~1990-11-01 |
09103-10184-000 |
US $30.20 |
||
|
24
|
24
27415-56B00-000
ボルト,ドライブベベルギヤ
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-10-01~1992-05-01 |
27415-56B00-000 |
— | ||
| replacements | |||||
|
24
|
24
09103-10253-000
Bolt,10x28
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-10-01~1992-05-01 |
09103-10253-000 |
— | ||
|
24
|
24
09103-10184-000 BOLT(10X25)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-10-01~1992-05-01 |
09103-10184-000 |
US $30.20 |
||
|
24
|
24
27421-60A13-000 CASE,DIFF,RLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1992-05-01~ |
27421-60A13-000 |
US $195.04 |
||
|
25
|
25
09160-35013-000 WASHER(35X46X0.8)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09160-35013-000 |
from US $2.74 |
||
|
25
|
25
09103-10184-000 BOLT(10X25)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1992-05-01~ |
09103-10184-000 |
US $30.20 |
||
|
25
|
25
09160-35014-000 WASHER(35X46X0.7)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09160-35014-000 |
from US $2.74 |
||
|
25
|
25
09160-35015-000 WASHER(35X46X0.6)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09160-35015-000 |
from US $3.13 |
||
|
26
|
26
09164-35003-000 WASHERLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09164-35003-000 |
from US $3.74 |
||
|
27
|
27
09265-45002-000 BEARING(45.2X80X19.84)LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
09265-45002-000 |
from US $45.60 |
||
|
28
|
28
27461-83000-000 ADJUSTER,DIFF SIDE BEARINGLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27461-83000-000 |
from US $7.52 |
||
|
29
|
29
27462-63202-000 PLATE,BEARING LOCKLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
27462-63202-000 |
US $2.74 |
||
|
30
|
30
01570-08123-000
Bolt
LSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
01570-08123-000 |
— | ||
| replacement | |||||
|
30
|
30
01570-0812A-000 BoltLSDナシ; SC:(SC2,SC3,SF3),SD:(SD2,SD3,SD4,SH3); 1990-08-01~ |
01570-0812A-000 |
US $14.40 |
||
