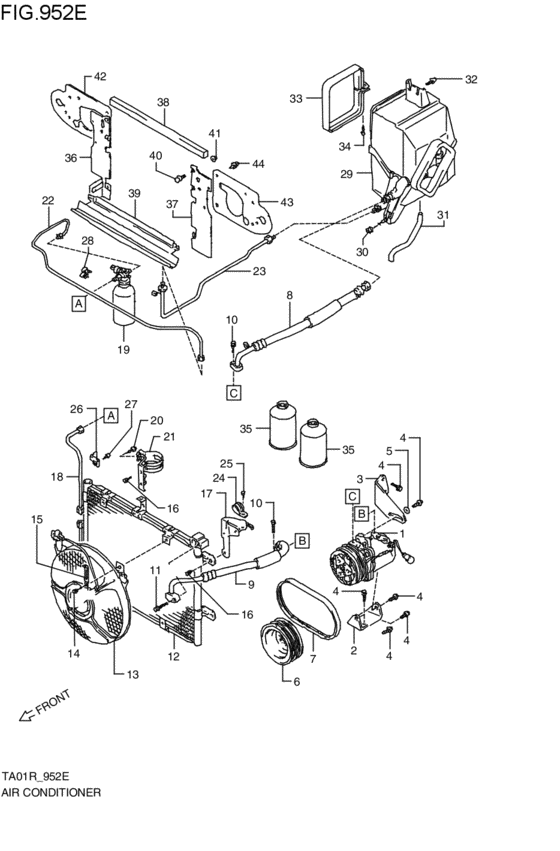

air-conditioner (ヘリーハンセン,ゴールドウィン,Gリミテッド2; SB,SC,SD,SE; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-60A02-000
COMPRESSOR&MAGNET CLUTCH
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95200-60A02-000 |
— | ||
|
2
|
2
95113-60A10-000
Bracket,compressor,power strg
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95113-60A10-000 |
— | ||
|
3
|
3
95112-60A00-000
STAY,COMPRESSOR
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95112-60A00-000 |
— | ||
|
4
|
4
01517-08203-000
ボルト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
4
|
4
01550-0820B-000 BoltSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
5
|
5
09160-08093-000
Washer 8.5x24x2
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
09160-08093-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-08501-000 WASHER(8.5X24X2.3)Washer SB,SC,SD,SE; 1988-05-01~1990-07-01 |
09160-08501-000 |
from US $1.60 |
||
|
6
|
6
12610-60A50-000
PULLEY,CRANKSHAFT
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
12610-60A50-000 |
— | ||
|
7
|
7
95141-60A20-000 V-BELT,4PK 925SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95141-60A20-000 |
US $60.35 |
||
| replacement | |||||
|
7
|
7
95141-60A20-CDN
Belt,air cond.
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95141-60A20-CDN |
— | ||
|
8
|
8
95710-60A00-000
ホース,コンプレッササクション
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95710-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
95710-57B01-000
HOSE,CPRSR SUCT
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95710-57B01-000 |
— | ||
|
9
|
9
95720-60A02-000
Hose,compressor delivery
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95720-60A02-000 |
— | ||
|
10
|
10
01517-08303-000
ボルト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-08303-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0830A-000 BOLTBolt, mount oil seal cover SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0830A-000 |
from US $1.12 |
||
|
10
|
10
01550-0830B-000 BoltSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0830B-000 |
from US $1.06 |
||
|
11
|
11
01517-08303-000
ボルト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-08303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0830A-000 |
from US $1.12 |
||
|
11
|
11
01550-0830B-000 BoltSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0830B-000 |
from US $1.06 |
||
|
12
|
12
95310-60A00-000
コンデンサ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95310-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
95310-60A01-000
Condenser
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95310-60A01-000 |
— | ||
|
13
|
13
95320-60A00-000
ファンアッシ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95320-60A00-000 |
— | ||
| replacement | |||||
|
13
|
13
95320-55X51-000 FAN ASSY,CONDSB,SC,SD,SE; 1988-05-01~1990-07-01 |
95320-55X51-000 |
from US $241.05 |
||
|
14
|
14
01517-06103-000
ボルト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-06103-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0610A-000 BOLTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0610A-000 |
from US $0.80 |
||
|
14
|
14
01550-0610B-000 BoltBolt SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0610B-000 |
from US $0.80 |
||
|
15
|
15
09404-06402-000
Clamp, hose (l:60)
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
09404-06402-000 |
— | ||
| replacements | |||||
|
15
|
15
09404-06432-000
CLAMP(L:65)
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
09404-06432-000 |
— | ||
|
15
|
15
09404-06206-000
CLAMP(L:45)
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
09404-06206-000 |
— | ||
|
15
|
15
09404-06039-000 Clamp(L:65)SB,SC,SD,SE; 1988-05-01~1990-07-01 |
09404-06039-000 |
from US $1.82 |
||
|
15
|
15
09404-06031-000 Clamp,rsvr Tank Ovfl HoseSB,SC,SD,SE; 1988-05-01~1990-07-01 |
09404-06031-000 |
from US $1.37 |
||
|
16
|
16
01517-06123-000
Bolt
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BOLTBolt, clamp SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BOLTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
95772-60A00-000
ステー,デリバリホースクランプ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95772-60A00-000 |
— | ||
|
18
|
18
95733-60A01-000
PIPE,RECEIVER DRYER INLET
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95733-60A01-000 |
— | ||
|
19
|
19
95330-60A00-000
Receiver dryer
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95330-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
95330-60A01-000
RECEIVER DRYER
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95330-60A01-000 |
— | ||
|
20
|
20
01517-06203-000
Bolt
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-06203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0620B-000 BOLTBolt, inspection cap SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0620B-000 |
from US $0.76 |
||
|
20
|
20
01550-0620A-000 BOLTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0620A-000 |
from US $0.76 |
||
|
21
|
21
95930-60A00-000
ブラケット,レシーバドライヤ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95930-60A00-000 |
— | ||
|
22
|
22
95734-60A01-000
パイプ,レシーバドライヤ,アウトレット
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95734-60A01-000 |
— | ||
|
23
|
23
95732-60A00-000
PIPE,EVAPORATOR INLET
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95732-60A00-000 |
— | ||
|
24
|
24
09403-23402-000 CLAMPSB,SC,SD,SE; 1988-05-01~1990-07-01 |
09403-23402-000 |
US $23.90 |
||
|
25
|
25
01517-06123-000
Bolt
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0612B-000 BOLTBolt, clamp SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
25
|
25
01550-0612A-000 BOLTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
26
|
26
95775-60A00-000
ステー,レシーバドライヤアウトレットパイプ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95775-60A00-000 |
— | ||
|
27
|
27
01517-06123-000
Bolt
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0612B-000 BOLTBolt, clamp SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
27
|
27
01550-0612A-000 BOLTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
28
|
28
95778-60A00-000
クランプ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95778-60A00-000 |
— | ||
| replacements | |||||
|
28
|
28
09403-08406-000 CLAMPSB,SC,SD,SE; 1988-05-01~1990-07-01 |
09403-08406-000 |
from US $1.44 |
||
|
28
|
28
09408-00149-000
クランプ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
09408-00149-000 |
— | ||
|
29
|
29
95400-60A00-000
ユニット,エバポレータ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95400-60A00-000 |
— | ||
| replacements | |||||
|
29
|
29
95400-64A00-000
UNIT,EVAPORATOR
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95400-64A00-000 |
— | ||
|
29
|
29
95710-57B01-000
HOSE,CPRSR SUCT
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95710-57B01-000 |
— | ||
|
30
|
30
08316-16083-000 NutNut SB,SC,SD,SE; 1988-05-01~1990-07-01 |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
30
|
30
08316-1008B-000 NUTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
08316-1008B-000 |
from US $0.76 |
||
|
31
|
31
95491-60A00-000
ホース,ドレーン
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95491-60A00-000 |
— | ||
| replacement | |||||
|
31
|
31
95480-67A00-000
HOSE,DRAIN
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95480-67A00-000 |
— | ||
|
32
|
32
01517-06123-000
Bolt
SD,SE; 1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0612B-000 BOLTBolt, clamp SD,SE; 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
32
|
32
01550-0612A-000 BOLTSD,SE; 1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
33
|
33
95779-60A00-000 CLAMP,EVAPSB,SC,SD,SE; 1988-05-01~1990-07-01 |
95779-60A00-000 |
US $17.15 |
||
|
34
|
34
02112-35308-000
Screw
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
02112-35308-000 |
— | ||
| replacement | |||||
|
34
|
34
02112-35307-000 SCREWSB,SC,SD,SE; 1988-05-01~1990-07-01 |
02112-35307-000 |
from US $3.96 |
||
|
35
|
35
95790-60B00-000
ドラム,レフリジェラント
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95790-60B00-000 |
— | ||
|
36
|
36
95340-60A30-000
インシュレータ,ラジエータサイド,ライト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95340-60A30-000 |
— | ||
| replacement | |||||
|
36
|
36
95340-60A31-000
INSULATOR ASSY,RADIATOR SIDE,R
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95340-60A31-000 |
— | ||
|
37
|
37
95350-60A30-000
インシュレータ,ラジエータサイド,レフト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95350-60A30-000 |
— | ||
| replacement | |||||
|
37
|
37
95350-60A31-000
INSULATOR ASSY,RADIATOR SIDE,L
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95350-60A31-000 |
— | ||
|
38
|
38
95364-60A20-000
インシュレータ,ラジエータ,アッパ
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95364-60A20-000 |
— | ||
| replacement | |||||
|
38
|
38
95364-60A02-000
INSULATOR,RADIATOR UPR
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95364-60A02-000 |
— | ||
|
39
|
39
95361-60A20-000
パネル,ラジエータロアシールド
SD; 1988-05-01~1990-07-01 |
95361-60A20-000 |
— | ||
| replacement | |||||
|
39
|
39
95361-60A32-000
PANEL,RADIATOR LOWER SHIELD
SD; 1988-05-01~1990-07-01 |
95361-60A32-000 |
— | ||
|
39
|
39
95361-60A21-000
パネル,ラジエータロアシールド
SE,SD; 1988-05-01~1990-07-01 |
95361-60A21-000 |
— | ||
| replacement | |||||
|
39
|
39
95361-60A32-000
PANEL,RADIATOR LOWER SHIELD
SE,SD; 1988-05-01~1990-07-01 |
95361-60A32-000 |
— | ||
|
40
|
40
01517-06123-000
Bolt
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01517-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BOLTBolt, clamp SB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
08316-26063-000
Nut
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
08316-26063-000 |
— | ||
| replacements | |||||
|
41
|
41
08316-2006A-000 NUTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
08316-2006A-000 |
from US $0.76 |
||
|
41
|
41
08316-1006B-000 NUTSB,SC,SD,SE; 1988-05-01~1990-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
42
|
42
95362-60A20-000
インシュレータ,ランプサポートパネル,ライト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95362-60A20-000 |
— | ||
| replacement | |||||
|
42
|
42
95362-60A21-000
INSULATOR,LAMP SUPPORT PANEL,R
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95362-60A21-000 |
— | ||
|
43
|
43
95363-60A20-000
インシュレータ,ランプサポートパネル,レフト
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95363-60A20-000 |
— | ||
| replacement | |||||
|
43
|
43
95363-60A21-000
Insulator,lamp support panel,l
SB,SC,SD,SE; 1988-05-01~1990-07-01 |
95363-60A21-000 |
— | ||
|
44
|
44
09409-07022-000 CLIPSB,SC,SD,SE; 1988-05-01~1990-07-01 |
09409-07022-000 |
from US $1.40 |
||
