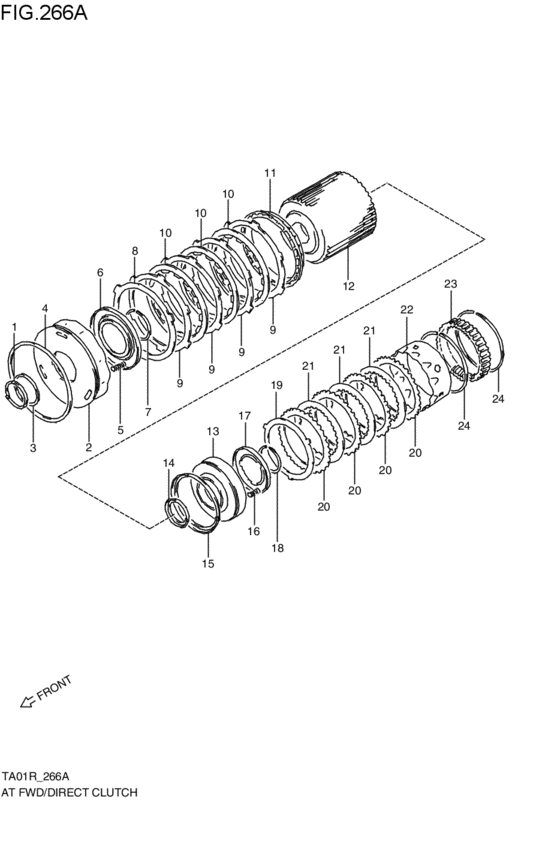

at - forward / direct clutch (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22858-61A00-000
ワッシャ,スラスト,NO.1(イエロ)
イエロ-; 3AT; 1988-05-01~1990-07-01 |
22858-61A00-000 |
— | ||
| replacement | |||||
|
1
|
1
22800-61810-000
WASHER SET
イエロ-; 3AT; 1988-05-01~1990-07-01 |
22800-61810-000 |
— | ||
|
1
|
1
22859-61A00-000
ワッシャ,スラスト,NO.2(レッド)
レッド; 3AT; 1988-05-01~1990-07-01 |
22859-61A00-000 |
— | ||
|
1
|
1
22861-61A00-000
ワッシャ,スラスト,NO.3(ブラック)
ブラック; 3AT; 1988-05-01~1990-07-01 |
22861-61A00-000 |
— | ||
|
1
|
1
22862-61A00-000
ワッシャ,スラスト,NO.4(ナチュラル)
ナチュラル; 3AT; 1988-05-01~1990-07-01 |
22862-61A00-000 |
— | ||
|
1
|
1
22863-61A00-000
ワッシャ,スラスト,NO.5(グリーン)
グリ-ン; 3AT; 1988-05-01~1990-07-01 |
22863-61A00-000 |
— | ||
|
1
|
1
22864-61A00-000
ワッシャ,スラスト,NO.6(ブルー)
ブル-; 3AT; 1988-05-01~1990-07-01 |
22864-61A00-000 |
— | ||
|
2
|
2
22867-61A00-000
PISTON,REVERSE CLUTCH
3AT; 1988-05-01~1990-07-01 |
22867-61A00-000 |
— | ||
|
3
|
3
22871-61A00-000 SEAL,REV CLUTCH INNER3AT; 1988-05-01~1990-07-01 |
22871-61A00-000 |
US $5.15 |
||
|
4
|
4
22869-61A00-000 SEAL,REV CLUTCH OUTER3AT; 1988-05-01~1990-07-01 |
22869-61A00-000 |
US $9.38 |
||
|
5
|
5
26637-61A00-000
SPRING
3AT; 1988-05-01~1990-07-01 |
26637-61A00-000 |
— | ||
|
6
|
6
22872-61A00-000
SEAT,REV CLUTCH RETURN SPRING
3AT; 1988-05-01~1990-07-01 |
22872-61A00-000 |
— | ||
|
7
|
7
22873-61A00-000
RING,SPRING SEAT RETAINING
3AT; 1988-05-01~1990-07-01 |
22873-61A00-000 |
— | ||
|
8
|
8
22878-61A00-000 PLATE ASSY,CL SPRING CUSHION3AT; 1988-05-01~1990-07-01 |
22878-61A00-000 |
US $28.89 |
||
|
9
|
9
22877-61A00-000
PLATE,REV CLUTCH STEEL
スチール; 3AT; 1988-05-01~1990-07-01 |
22877-61A00-000 |
— | ||
|
10
|
10
22876-61A00-000 PLATE ASSY,REV CLUTCH LINEDリンネル; 3AT; 1988-05-01~1990-07-01 |
22876-61A00-000 |
US $31.28 |
||
|
11
|
11
22875-61A00-000
プレート,リバースクラッチプレッシャ,NO.1
T:6.30>6.40; 3AT; 1988-05-01~1990-07-01 |
22875-61A00-000 |
— | ||
|
11
|
11
22879-61A00-000
プレート,リバースクラッチプレッシャ,NO.2
T:6.59>6.69; 3AT; 1988-05-01~1990-07-01 |
22879-61A00-000 |
— | ||
|
11
|
11
22883-61A00-000
プレート,リバースクラッチプレッシャ,NO.3
T:6.88>6.98; 3AT; 1988-05-01~1990-07-01 |
22883-61A00-000 |
— | ||
|
11
|
11
22884-61A00-000
プレート,リバースクラッチプレッシャ,NO.4
T:7.17>7.27; 3AT; 1988-05-01~1990-07-01 |
22884-61A00-000 |
— | ||
|
12
|
12
26720-61A00-000
DRUM ASSY,2ND CLUTCH
3AT; 1988-05-01~1990-07-01 |
26720-61A00-000 |
— | ||
|
13
|
13
26730-61A00-000
ピストンアッシ,セカンドクラッチ
3AT; 1988-05-01~1990-07-01 |
26730-61A00-000 |
— | ||
|
14
|
14
26741-61A00-000 SEAL,2ND CL PISTON INNER3AT; 1988-05-01~1990-07-01 |
26741-61A00-000 |
US $5.70 |
||
|
15
|
15
26742-61A00-000 SEAL,2ND CL PISTON OUTER3AT; 1988-05-01~1990-07-01 |
26742-61A00-000 |
US $7.43 |
||
|
16
|
16
26637-61A00-000
SPRING
3AT; 1988-05-01~1990-07-01 |
26637-61A00-000 |
— | ||
|
17
|
17
26744-61A00-000
SEAT,2ND CL PSTN SPRING
3AT; 1988-05-01~1990-07-01 |
26744-61A00-000 |
— | ||
|
18
|
18
22873-61A00-000
RING,SPRING SEAT RETAINING
3AT; 1988-05-01~1990-07-01 |
22873-61A00-000 |
— | ||
|
19
|
19
26747-61A00-000
PLATE,2ND CL SPRING CUSHION
3AT; 1988-05-01~1990-07-01 |
26747-61A00-000 |
— | ||
|
20
|
20
26746-61A00-000
PLATE,2ND CLUTCH STEEL
スチール; 3AT; 1988-05-01~1990-07-01 |
26746-61A00-000 |
— | ||
|
21
|
21
26764-61A00-000 PLATE ASSY,2ND CLUTCH LINEDリンネル; 3AT; 1988-05-01~1990-07-01 |
26764-61A00-000 |
US $19.69 |
||
|
22
|
22
26748-61A00-000
SPACER,2ND CLUTCH
3AT; 1988-05-01~1990-07-01 |
26748-61A00-000 |
— | ||
|
23
|
23
26749-61A00-000
ギヤ,プラネタリリング
M.NO.3444309マデ; 3AT; 1988-05-01~1990-07-01 |
26749-61A00-000 |
— | ||
|
23
|
23
26749-61A01-000
ギヤ,プラネタリリング
M.NO.3444310ヨリ; 3AT; 1988-05-01~1990-07-01 |
26749-61A01-000 |
— | ||
|
24
|
24
26761-61A00-000
リング,リングギヤリテーナ
3AT; 1988-05-01~1990-07-01 |
26761-61A00-000 |
— | ||
