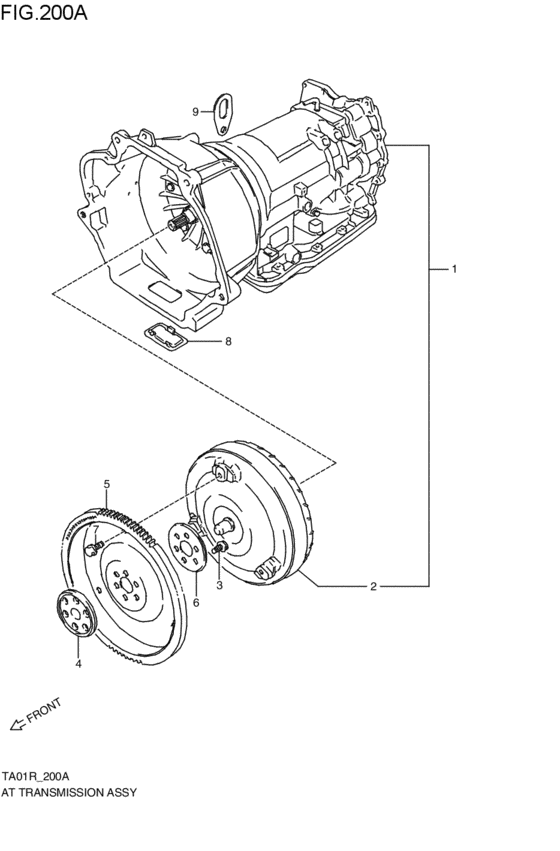

at - transmission assy (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-61A00-000
トランスミッションアッシ,オートマチック
3AT; 1988-05-01~1990-07-01 |
21000-61A00-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-61A00-REM
Auto transmission assy
3AT; 1988-05-01~1990-07-01 |
21000-61A00-REM |
— | ||
|
2
|
2
22700-61A00-000
コンバータ,トルク
3AT; 1988-05-01~1990-07-01 |
22700-61A00-000 |
— | ||
|
3
|
3
09103-10200-000
ボルト,10X18.5
3AT; 1988-05-01~1990-07-01 |
09103-10200-000 |
— | ||
| replacements | |||||
|
3
|
3
09100-10275-000 BOLT(10X18.5)3AT; 1988-05-01~1990-07-01 |
09100-10275-000 |
US $1.44 |
||
|
3
|
3
09103-10305-000 BOLT(10X18.5)3AT; 1988-05-01~1990-07-01 |
09103-10305-000 |
US $22.40 |
||
|
4
|
4
22611-61A01-000
フランジ,ドライブプレート,フロント
3AT; 1988-05-01~1990-07-01 |
22611-61A01-000 |
— | ||
| replacement | |||||
|
4
|
4
22611-61A02-000
FLANGE,T/C DRIVE PLATE FR
3AT; 1988-05-01~1990-07-01 |
22611-61A02-000 |
— | ||
|
5
|
5
22620-61A01-000 PLATE,TC DRIVE3AT; 1988-05-01~1990-07-01 |
22620-61A01-000 |
US $280 |
||
|
6
|
6
22631-61A00-000 FLANGE,T/C DRIVE PLATE RR3AT; 1988-05-01~1990-07-01 |
22631-61A00-000 |
US $23.20 |
||
|
7
|
7
01517-10163-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-10163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-1016A-000 BoltPlug, oil gallery 3AT; 1988-05-01~1990-07-01 |
01550-1016A-000 |
from US $4.96 |
||
|
7
|
7
01550-1016B-000 BoltPlug, oil gallery 3AT; 1988-05-01~1990-07-01 |
01550-1016B-000 |
from US $0.96 |
||
|
8
|
8
22641-61A01-000 CAP,T/C,HOUSING3AT; 1988-05-01~1990-07-01 |
22641-61A01-000 |
US $11.04 |
||
|
9
|
9
11851-73001-000
フック,エンジン
3AT; 1988-05-01~1990-07-01 |
11851-73001-000 |
— | ||
| replacement | |||||
|
9
|
9
11851-62B00-000 HOOK3AT; 1988-05-01~1990-07-01 |
11851-62B00-000 |
US $5.02 |
||
