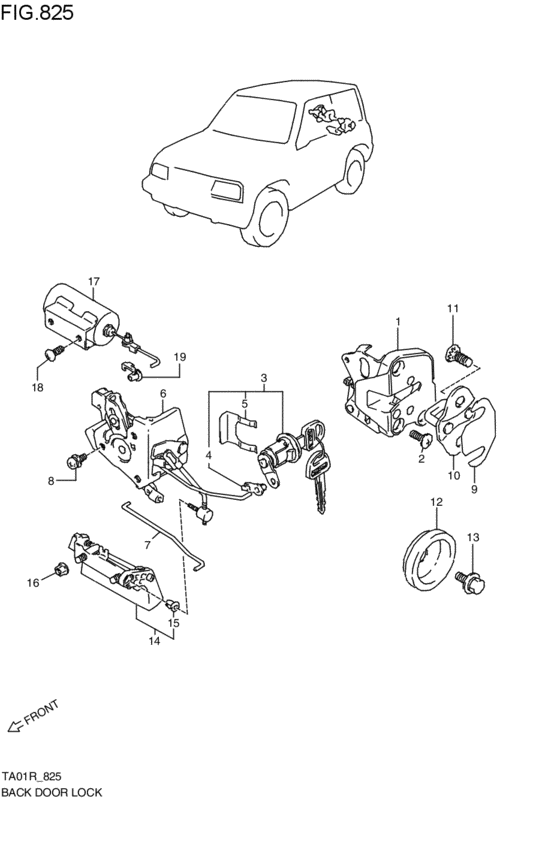

back door lock (ハードトップ; V,W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82530-61A00-000 LATCH ASSY,BACK DRV,W; 1988-05-01~1990-07-01 |
82530-61A00-000 |
US $132 |
||
|
2
|
2
02132-56163-000
スクリュ
V,W; 1988-05-01~1990-07-01 |
02132-56163-000 |
— | ||
| replacement | |||||
|
2
|
2
02122-5616B-000 SCREWV,W; 1988-05-01~1990-07-01 |
02122-5616B-000 |
US $0.80 |
||
|
3
|
3
82500-60830-000
シリンダセット,バックドアラッチロック
V,W; 1988-05-01~1990-07-01 |
82500-60830-000 |
— | ||
| replacement | |||||
|
3
|
3
82500-60831-000 CYLINDER,BACK DR LOCKV,W; 1988-05-01~1990-07-01 |
82500-60831-000 |
US $71.44 |
||
|
4
|
4
82287-60A00-000 HOLDERV,W; 1988-05-01~1990-07-01 |
82287-60A00-000 |
US $1.60 |
||
|
5
|
5
82577-61A00-000 RETAINER,RR GATE LATCHV,W; 1988-05-01~1990-07-01 |
82577-61A00-000 |
US $11.20 |
||
|
6
|
6
83170-61A00-000 LINK,BACK DR LATCHV,W; 1988-05-01~1990-07-01 |
83170-61A00-000 |
US $53.73 |
||
|
7
|
7
83175-61A00-000 ROD,BACK DOOR LATCHV,W; 1988-05-01~1990-07-01 |
83175-61A00-000 |
US $2.24 |
||
|
8
|
8
02112-76126-000
スクリュ
V,W; 1988-05-01~1990-07-01 |
02112-76126-000 |
— | ||
| replacement | |||||
|
8
|
8
02112-7612B-000 SCREWV,W; 1988-05-01~1990-07-01 |
02112-7612B-000 |
from US $0.96 |
||
|
9
|
9
78199-78000-000 SPACER,DOOR LOCK STRIKERV,W; 1988-05-01~1990-07-01 |
78199-78000-000 |
US $1.60 |
||
|
10
|
10
82660-61A00-000
ストライカ,バックドアラッチ
V,W; 1988-05-01~1990-07-01 |
82660-61A00-000 |
— | ||
| replacement | |||||
|
10
|
10
82660-61A01-000 STRIKER,BACK DOOR LATCHV,W; 1988-05-01~1990-07-01 |
82660-61A01-000 |
US $43.20 |
||
|
11
|
11
09137-08006-000
Screw
V,W; 1988-05-01~1990-07-01 |
09137-08006-000 |
— | ||
| replacements | |||||
|
11
|
11
09137-08011-000 SCREW(8X18)V,W; 1988-05-01~1990-07-01 |
09137-08011-000 |
US $1.44 |
||
|
11
|
11
09137-08004-000 SCREW(8X18)V,W; 1988-05-01~1990-07-01 |
09137-08004-000 |
from US $0.90 |
||
|
12
|
12
82761-61A00-000 MALE,BACK DR STOP DRV,W; 1988-05-01~1990-07-01 |
82761-61A00-000 |
US $19.20 |
||
|
13
|
13
09118-08128-000 BOLT(8X16)Bolt, front fender, front V,W; 1988-05-01~1990-07-01 |
09118-08128-000 |
US $1.28 |
||
|
14
|
14
82850-61A00-000
ハンドル,バックドア,アウトサイド
V,W; 1988-05-01~1990-07-01 |
82850-61A00-000 |
— | ||
| replacement | |||||
|
14
|
14
82850-61A01-000 HANDLE,BACK DOOR OUTV,W; 1988-05-01~1990-07-01 |
82850-61A01-000 |
from US $41.02 |
||
|
15
|
15
82816-82001-000 SNAP,ADJUSTING JOINTV,W; 1988-05-01~1990-07-01 |
82816-82001-000 |
US $1.60 |
||
|
16
|
16
08316-26066-000
Nut 6mm
V,W; 1988-05-01~1990-07-01 |
08316-26066-000 |
— | ||
| replacements | |||||
|
16
|
16
08316-2006A-000 NUTV,W; 1988-05-01~1990-07-01 |
08316-2006A-000 |
from US $0.76 |
||
|
16
|
16
08316-1006B-000 NUTV,W; 1988-05-01~1990-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
17
|
17
82550-61A10-000
SOLENOID,BACK DOOR LATCH
V,W; 1988-05-01~1990-07-01 |
82550-61A10-000 |
— | ||
|
18
|
18
02112-76126-000
スクリュ
V,W; 1988-05-01~1990-07-01 |
02112-76126-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-7612B-000 SCREWV,W; 1988-05-01~1990-07-01 |
02112-7612B-000 |
from US $0.96 |
||
|
19
|
19
09209-05021-000
PIN
V,W; 1988-05-01~1990-07-01 |
09209-05021-000 |
— | ||
