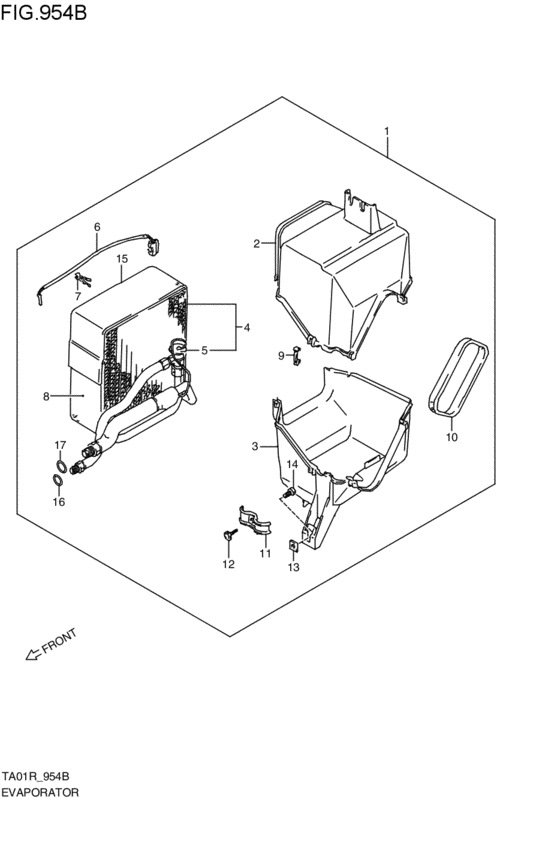

evaporator (ヘリィハンセン2,ゴールドウィン,Gリミテッド2; W:(SC,SD,SE); 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95400-60A00-000
ユニット,エバポレータ
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95400-60A00-000 |
— | ||
| replacements | |||||
|
1
|
1
95400-64A00-000
UNIT,EVAPORATOR
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95400-64A00-000 |
— | ||
|
1
|
1
95710-57B01-000
HOSE,CPRSR SUCT
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95710-57B01-000 |
— | ||
|
2
|
2
95421-60A01-000
CASE,EVAPO,UPPER
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95421-60A01-000 |
— | ||
|
3
|
3
95422-60A01-000 CASE,EVAPO,LOWERGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95422-60A01-000 |
US $96.05 |
||
|
4
|
4
95410-60A00-000
コア,エバポレータ
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95410-60A00-000 |
— | ||
| replacements | |||||
|
4
|
4
95410-64A01-000
Core
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95410-64A01-000 |
— | ||
|
4
|
4
95710-57B01-000
HOSE,CPRSR SUCT
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95710-57B01-000 |
— | ||
|
5
|
5
95431-60A00-000
バルブ,エキスパンション
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95431-60A00-000 |
— | ||
| replacement | |||||
|
5
|
5
95431-64A10-000
VALVE,EXPANSION
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95431-64A10-000 |
— | ||
|
6
|
6
95451-82400-000
サーミスタ,エバポレータ
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95451-82400-000 |
— | ||
| replacement | |||||
|
6
|
6
95451-78041-000 THERMISTOR,EVAPGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95451-78041-000 |
US $39.74 |
||
|
7
|
7
95452-84040-000
クランプ,サーミスタ
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95452-84040-000 |
— | ||
| replacement | |||||
|
7
|
7
95452-70B21-000
CLAMP,THERMISTER
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95452-70B21-000 |
— | ||
|
8
|
8
95481-60A00-000 PACKING,EVAPORATORGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95481-60A00-000 |
US $12.73 |
||
|
9
|
9
74316-85500-000 CLAMPClamp, case GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
74316-85500-000 |
US $1.82 |
||
|
10
|
10
95482-60A00-000 PACKING,EVAPORATOR CASEGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95482-60A00-000 |
US $6.88 |
||
|
11
|
11
95771-60A00-000
Clamp,evapo pipe
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95771-60A00-000 |
— | ||
|
12
|
12
03541-05108-000
Screw
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
03541-05108-000 |
— | ||
| replacements | |||||
|
12
|
12
03541-0510B-000 SCREWGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
03541-0510B-000 |
from US $0.80 |
||
|
12
|
12
03541-0510A-000 SCREWScrew, rr cover GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
03541-0510A-000 |
from US $0.68 |
||
|
13
|
13
74172-80000-000
パッド
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
74172-80000-000 |
— | ||
| replacement | |||||
|
13
|
13
61544-94500-000 PADGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
61544-94500-000 |
from US $0.99 |
||
|
14
|
14
01107-08163-000
Bolt m8x1.25x16
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
01107-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01500-0816B-000 BoltBolt GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
01500-0816B-000 |
from US $0.80 |
||
|
14
|
14
01500-08163-000
Bolt
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
01500-08163-000 |
— | ||
|
16
|
16
95753-84040-000
Oリング,パイプ,ハイ
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95753-84040-000 |
— | ||
| replacements | |||||
|
16
|
16
95891-60E00-000 O-RINGGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95891-60E00-000 |
US $0.70 |
||
|
16
|
16
09280-07005-000
Oリング,D:1.42,ID:6.8
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
09280-07005-000 |
— | ||
|
17
|
17
95752-84040-000
Oリング,ホースデリバリ
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95752-84040-000 |
— | ||
| replacements | |||||
|
17
|
17
95894-60E00-000 O-RINGGW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
95894-60E00-000 |
US $1.28 |
||
|
17
|
17
09280-11006-000
Oリング,D:1.78,ID:10.8
GW,GL2,HH2; W:(SC,SD,SE); 1988-05-01~1990-07-01 |
09280-11006-000 |
— | ||
