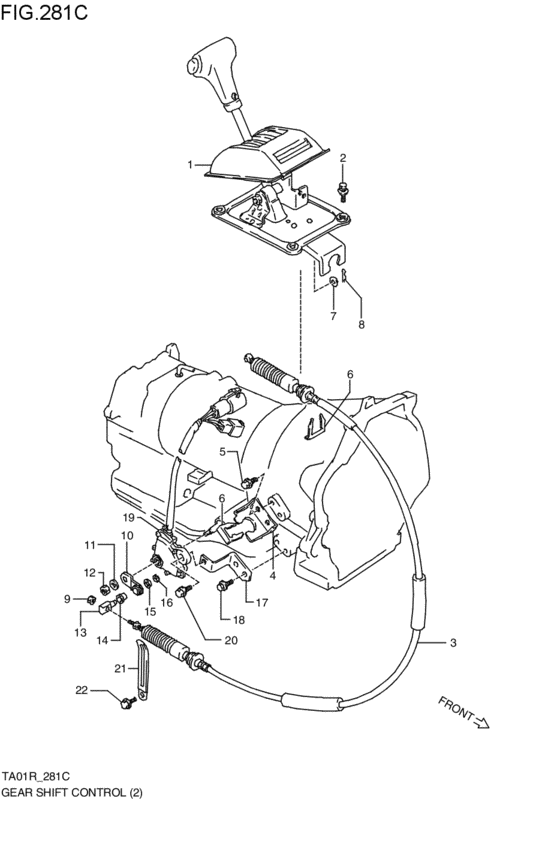

gearlever control (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28100-61A31-000
セレクタアッシ,マニュアル
3AT; 1988-05-01~1988-09-01 |
28100-61A31-000 |
— | ||
|
1
|
1
28100-61A42-000
セレクタアッシ,マニュアル
3AT; 1988-08-01~1990-07-01 |
28100-61A42-000 |
— | ||
|
2
|
2
09118-08118-000 BOLT(8X20)3AT; 1988-05-01~1990-07-01 |
09118-08118-000 |
US $12.50 |
||
|
3
|
3
28210-61A00-000
CABLE ASSY,SELECT
3AT; 1988-05-01~1990-07-01 |
28210-61A00-000 |
— | ||
|
4
|
4
28221-61A00-000
BRACKET,SELECT CABLE
3AT; 1988-05-01~1990-07-01 |
28221-61A00-000 |
— | ||
|
5
|
5
01517-08203-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-08203-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0820A-000 BOLTBolt, funnel bracket 3AT; 1988-05-01~1990-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
01550-0820B-000 Bolt3AT; 1988-05-01~1990-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
09383-19001-000 E RINGClip CHKK; 3AT; 1988-05-01~1990-07-01 |
09383-19001-000 |
from US $2.72 |
||
|
7
|
7
08322-21083-000 ワッシャ3AT; 1988-05-01~1990-07-01 |
08322-21083-000 |
US $0.54 |
||
| replacements | |||||
|
7
|
7
08322-0108A-000 WASHER3AT; 1988-05-01~1990-07-01 |
08322-0108A-000 |
from US $0.80 |
||
|
7
|
7
08322-0108B-000 WASHER3AT; 1988-05-01~1990-07-01 |
08322-0108B-000 |
from US $0.80 |
||
|
8
|
8
09385-08004-000 PIN,SNAP3AT; 1988-05-01~1990-07-01 |
09385-08004-000 |
from US $1.28 |
||
|
9
|
9
09140-06017-000
ナット
3AT; 1988-05-01~1990-07-01 |
09140-06017-000 |
— | ||
| replacements | |||||
|
9
|
9
08310-0006A-000 NUT3AT; 1988-05-01~1990-07-01 |
08310-0006A-000 |
from US $0.76 |
||
|
9
|
9
08310-0006B-000 NUTNut gear shift link rod 3AT; 1988-05-01~1990-07-01 |
08310-0006B-000 |
from US $0.76 |
||
|
10
|
10
28231-61A00-000 LEVER,MANUAL SLT3AT; 1988-05-01~1990-07-01 |
28231-61A00-000 |
US $6.15 |
||
|
11
|
11
08321-21103-000 Lock washer3AT; 1988-05-01~1990-07-01 |
08321-21103-000 |
from US $0.77 |
||
| replacements | |||||
|
11
|
11
08321-0110B-000 WASHER,LOCKWasher, knuckle end 3AT; 1988-05-01~1990-07-01 |
08321-0110B-000 |
from US $0.80 |
||
|
11
|
11
08321-0110A-000 WASHER,LOCK3AT; 1988-05-01~1990-07-01 |
08321-0110A-000 |
from US $0.80 |
||
|
12
|
12
08310-12103-000 Nut3AT; 1988-05-01~1990-07-01 |
08310-12103-000 |
US $0.63 |
||
| replacements | |||||
|
12
|
12
08310-0010B-000 NUT3AT; 1988-05-01~1990-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
12
|
12
08310-0010A-000 NUT3AT; 1988-05-01~1990-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
13
|
13
28291-78233-000 JOINT,CABLE3AT; 1988-05-01~1990-07-01 |
28291-78233-000 |
US $12.32 |
||
|
14
|
14
09305-08012-000 BUSH3AT; 1988-05-01~1990-07-01 |
09305-08012-000 |
US $1.28 |
||
|
15
|
15
08322-11083-000 WasherWasher 3AT; 1988-05-01~1990-07-01 |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
08322-0108B-000 WASHER3AT; 1988-05-01~1990-07-01 |
08322-0108B-000 |
from US $0.80 |
||
|
15
|
15
08322-0108A-000 WASHER3AT; 1988-05-01~1990-07-01 |
08322-0108A-000 |
from US $0.80 |
||
|
16
|
16
08332-11063-000
E ring
3AT; 1988-05-01~1990-07-01 |
08332-11063-000 |
— | ||
| replacements | |||||
|
16
|
16
08332-1106B-000 E RINGCirclip 3AT; 1988-05-01~1990-07-01 |
08332-1106B-000 |
from US $0.90 |
||
|
16
|
16
08332-1106A-000 E RINGE ring, pinion 3AT; 1988-05-01~1990-07-01 |
08332-1106A-000 |
from US $0.77 |
||
|
17
|
17
28271-61A01-000
ブラケット,ポジションスイッチ
3AT; 1988-05-01~1990-07-01 |
28271-61A01-000 |
— | ||
|
18
|
18
01517-08203-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-08203-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0820A-000 BOLTBolt, funnel bracket 3AT; 1988-05-01~1990-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
18
|
18
01550-0820B-000 Bolt3AT; 1988-05-01~1990-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
19
|
19
37720-61A00-000
SWITCH ASSY,SHIFT
3AT; 1988-05-01~1990-07-01 |
37720-61A00-000 |
— | ||
|
20
|
20
01517-08203-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0820A-000 BOLTBolt, funnel bracket 3AT; 1988-05-01~1990-07-01 |
01550-0820A-000 |
from US $0.96 |
||
|
20
|
20
01550-0820B-000 Bolt3AT; 1988-05-01~1990-07-01 |
01550-0820B-000 |
from US $0.91 |
||
|
21
|
21
09404-08405-000
Clamp, drain tube
3AT; 1988-05-01~1990-07-01 |
09404-08405-000 |
— | ||
| replacement | |||||
|
21
|
21
09404-08420-000 CLAMP(L:120 T:1.0)3AT; 1988-05-01~1990-07-01 |
09404-08420-000 |
from US $2.08 |
||
|
22
|
22
01517-08123-000
ボルト
3AT; 1988-05-01~1990-07-01 |
01517-08123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0812B-000 BoltPlug, drain 3AT; 1988-05-01~1990-07-01 |
01550-0812B-000 |
from US $0.96 |
||
|
22
|
22
01550-0812A-000 BOLT3AT; 1988-05-01~1990-07-01 |
01550-0812A-000 |
from US $0.91 |
||
