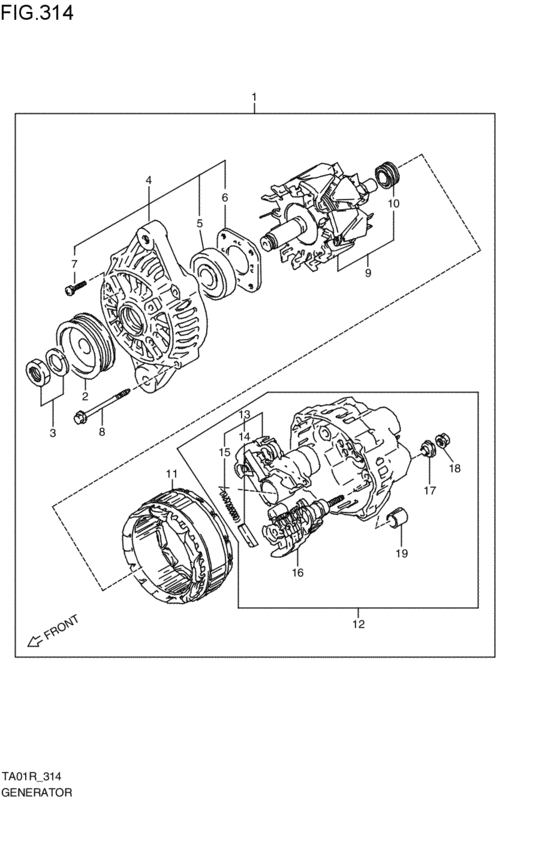

generator (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-60A10-000
ジェネレータアッシ
1988-05-01~1990-07-01 |
31400-60A10-000 |
— | ||
| replacements | |||||
|
1
|
1
31400-60A13-000
GENERATOR ASSY
1988-05-01~1990-07-01 |
31400-60A13-000 |
— | ||
|
1
|
1
31400-60A14-000 Generator Assy1988-05-01~1990-07-01 |
31400-60A14-000 |
US $693.44 |
||
|
2
|
2
31171-86520-000
PULLEY
1988-05-01~1990-07-01 |
31171-86520-000 |
— | ||
|
3
|
3
31775-70030-000
ナットアッシ
1988-05-01~1990-07-01 |
31775-70030-000 |
— | ||
| replacements | |||||
|
3
|
3
31775-50F20-000 NUT1988-05-01~1990-07-01 |
31775-50F20-000 |
US $2.72 |
||
|
3
|
3
31775-60C10-000 NUT,PULLEY1988-05-01~1990-07-01 |
31775-60C10-000 |
US $4.31 |
||
|
4
|
4
31580-60A10-000
ブラケットアッシ,フロント
1988-05-01~1990-07-01 |
31580-60A10-000 |
— | ||
|
5
|
5
31582-60A21-000 BEARING1988-05-01~1990-07-01 |
31582-60A21-000 |
US $48.21 |
||
|
6
|
6
31585-60A10-000 RETAINER,BEARING1988-05-01~1990-07-01 |
31585-60A10-000 |
US $6.66 |
||
|
7
|
7
31586-60A10-000 SCREW SET1988-05-01~1990-07-01 |
31586-60A10-000 |
US $5.56 |
||
|
8
|
8
31651-86520-000 SCREW SET1988-05-01~1990-07-01 |
31651-86520-000 |
US $5.78 |
||
|
9
|
9
31710-60A10-000
ROTOR ASSY
1988-05-01~1990-07-01 |
31710-60A10-000 |
— | ||
|
10
|
10
31612-60A10-000
Bearing,rr
1988-05-01~1990-07-01 |
31612-60A10-000 |
— | ||
| replacement | |||||
|
10
|
10
31612-60A11-000 BEARING,REAR1988-05-01~1990-07-01 |
31612-60A11-000 |
US $24 |
||
|
11
|
11
31410-60A10-000 STATOR ASSY1988-05-01~1990-07-01 |
31410-60A10-000 |
US $360.64 |
||
|
12
|
12
31611-60A10-000
ブラケットアッシ,リヤ
1988-05-01~1990-07-01 |
31611-60A10-000 |
— | ||
|
13
|
13
32500-60A10-000
REGULATOR ASSY
1988-05-01~1990-07-01 |
32500-60A10-000 |
— | ||
|
14
|
14
31631-60A10-000
ブラシ
1988-05-01~1990-07-01 |
31631-60A10-000 |
— | ||
| replacement | |||||
|
14
|
14
31631-60F30-000 BRUSH SET1988-05-01~1990-07-01 |
31631-60F30-000 |
US $13.28 |
||
|
15
|
15
31653-86520-000
スプリング,ブラシ
1988-05-01~1990-07-01 |
31653-86520-000 |
— | ||
| replacement | |||||
|
15
|
15
31631-60F30-000 BRUSH SET1988-05-01~1990-07-01 |
31631-60F30-000 |
US $13.28 |
||
|
16
|
16
31621-60A10-000
Rectifier Assy
1988-05-01~1990-07-01 |
31621-60A10-000 |
— | ||
|
17
|
17
31514-82630-000 INSULATOR1988-05-01~1990-07-01 |
31514-82630-000 |
US $2.88 |
||
|
18
|
18
31456-86030-000
ナット
1988-05-01~1990-07-01 |
31456-86030-000 |
— | ||
| replacements | |||||
|
18
|
18
08316-1006A-000 NUT1988-05-01~1990-07-01 |
08316-1006A-000 |
from US $0.80 |
||
|
18
|
18
08316-1006B-000 NUT1988-05-01~1990-07-01 |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
08319-31067-000 NUTNut, center 1988-05-01~1990-07-01 |
08319-31067-000 |
from US $1.44 |
||
|
18
|
18
08316-10063-000
Nut
1988-05-01~1990-07-01 |
08316-10063-000 |
— | ||
|
19
|
19
31616-82131-000 BUSH1988-05-01~1990-07-01 |
31616-82131-000 |
US $5.30 |
||
| replacement | |||||
|
19
|
19
31616-82C20-000 BUSH1988-05-01~1990-07-01 |
31616-82C20-000 |
US $4.97 |
||
