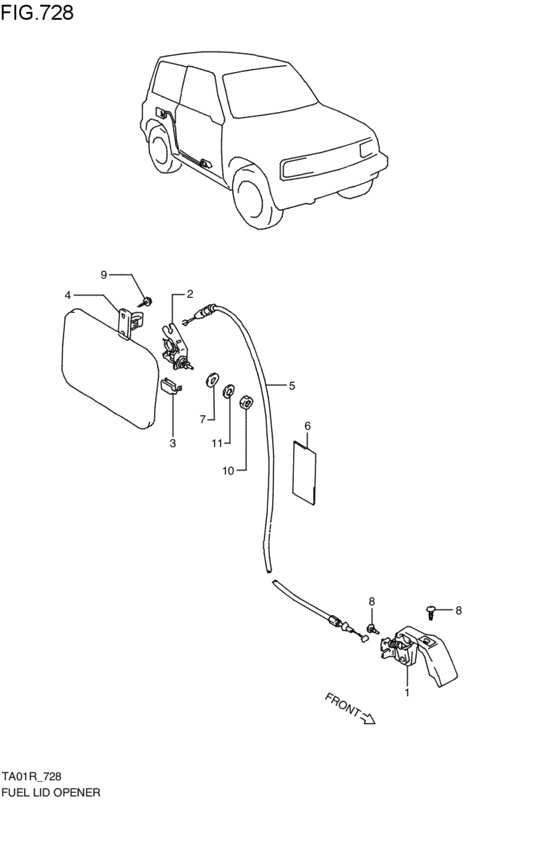

フューエルリッドオープナ (ワゴン; R,W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76510-60A00-000 HANDLE ASSY,FUEL OPENERR,W; 1988-05-01~1990-07-01 |
76510-60A00-000 |
from US $15.37 |
||
|
2
|
2
76520-60A00-000 OPENER ASSY,FUEL LIDR,W; 1988-05-01~1990-07-01 |
76520-60A00-000 |
US $43.20 |
||
|
3
|
3
76531-60A00-000
SPRING,FUEL LID NO.2
R,W; 1988-05-01~1989-12-01 |
76531-60A00-000 |
— | ||
|
3
|
3
76531-60A20-000 SPRING,FUEL LID NO.2R,W; 1989-12-01~1990-07-01 |
76531-60A20-000 |
US $5.67 |
||
|
4
|
4
76541-60A00-000
Hook,fuel lid
R,W; 1988-05-01~1990-07-01 |
76541-60A00-000 |
— | ||
|
5
|
5
76550-60A00-000 CABLE ASSY,FUEL OPENER,RR,W; 1988-05-01~1990-07-01 |
76550-60A00-000 |
US $23 |
||
|
6
|
6
76561-60A00-000
TAPE
R,W; 1988-05-01~1990-07-01 |
76561-60A00-000 |
— | ||
|
7
|
7
09160-13011-000 WASHER(13X21X2.5)R,W; 1988-05-01~1990-07-01 |
09160-13011-000 |
US $13.20 |
||
|
8
|
8
03141-06126-000
スクリュ
R,W; 1988-05-01~1990-07-01 |
03141-06126-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0612A-000 SCREWR,W; 1988-05-01~1990-07-01 |
03141-0612A-000 |
US $0.76 |
||
|
9
|
9
03511-05103-000
Screw
R,W; 1988-05-01~1990-07-01 |
03511-05103-000 |
— | ||
| replacement | |||||
|
9
|
9
03511-0510A-000 SCREWR,W; 1988-05-01~1990-07-01 |
03511-0510A-000 |
from US $2.72 |
||
|
10
|
10
08310-22103-000 ナットR,W; 1988-05-01~1990-07-01 |
08310-22103-000 |
US $1.07 |
||
| replacements | |||||
|
10
|
10
08310-0010A-000 NUTR,W; 1988-05-01~1990-07-01 |
08310-0010A-000 |
from US $0.80 |
||
|
10
|
10
08310-0010B-000 NUTR,W; 1988-05-01~1990-07-01 |
08310-0010B-000 |
from US $0.80 |
||
|
11
|
11
08322-21103-000 ワッシャR,W; 1988-05-01~1990-07-01 |
08322-21103-000 |
US $2.73 |
||
| replacements | |||||
|
11
|
11
08322-0110A-000 WASHERWasher, knuckle end R,W; 1988-05-01~1990-07-01 |
08322-0110A-000 |
from US $0.80 |
||
|
11
|
11
08322-0110B-000 WASHERWasher, knuckle end R,W; 1988-05-01~1990-07-01 |
08322-0110B-000 |
from US $0.76 |
||
