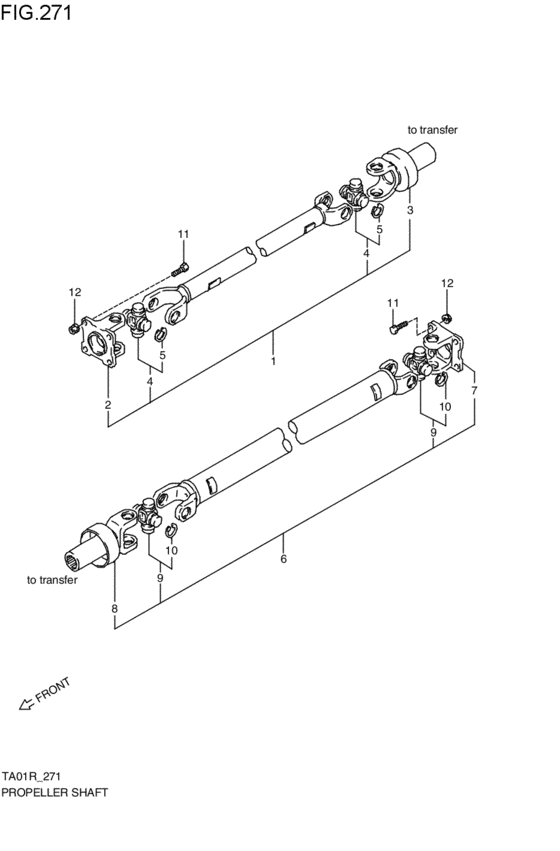

propeller shaft (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-60A01-000
シャフトアッシ,プロペラ,フロント
1988-05-01~1990-07-01 |
27101-60A01-000 |
— | ||
| replacement | |||||
|
1
|
1
27101-60A02-000 SHAFT ASSY,PROPELLER FRONT1988-05-01~1990-07-01 |
27101-60A02-000 |
US $408.32 |
||
|
2
|
2
27131-60A01-000
ヨーク,クロスジョイントフランジ
1988-05-01~1990-07-01 |
27131-60A01-000 |
— | ||
| replacement | |||||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE1988-05-01~1990-07-01 |
27131-56B00-000 |
US $55.94 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDING1988-05-01~1990-07-01 |
27140-60A00-000 |
US $174.80 |
||
|
4
|
4
27200-60811-000
ジョイントアッシ,ユニバーサル
1988-05-01~1990-07-01 |
27200-60811-000 |
— | ||
| replacements | |||||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
1988-05-01~1990-07-01 |
27200-83812-000 |
— | ||
|
4
|
4
27200-83813-000 Joint Set,universal1988-05-01~1990-07-01 |
27200-83813-000 |
from US $53.48 |
||
|
5
|
5
27225-60A00-000
サークリップ,ユニバーサルジョイント
1988-05-01~1990-07-01 |
27225-60A00-000 |
— | ||
| replacements | |||||
|
5
|
5
51118-36213-000 RING,SNAP1988-05-01~1990-07-01 |
51118-36213-000 |
from US $2.24 |
||
|
5
|
5
08331-41256-000
サークリップ
1988-05-01~1990-07-01 |
08331-41256-000 |
— | ||
|
6
|
6
27102-60A01-000
シャフトアッシ,プロペラ,リヤ
1988-05-01~1990-07-01 |
27102-60A01-000 |
— | ||
| replacement | |||||
|
6
|
6
27102-60A02-000
SHAFT ASSY,PROPELLER REAR
1988-05-01~1990-07-01 |
27102-60A02-000 |
— | ||
|
7
|
7
27131-60A01-000
ヨーク,クロスジョイントフランジ
1988-05-01~1990-07-01 |
27131-60A01-000 |
— | ||
| replacement | |||||
|
7
|
7
27131-56B00-000 YOKE,CROSS JOINT FLANGE1988-05-01~1990-07-01 |
27131-56B00-000 |
US $55.94 |
||
|
8
|
8
27140-60A00-000 YOKE,SLIDING1988-05-01~1990-07-01 |
27140-60A00-000 |
US $174.80 |
||
|
9
|
9
27200-60811-000
ジョイントアッシ,ユニバーサル
1988-05-01~1990-07-01 |
27200-60811-000 |
— | ||
| replacements | |||||
|
9
|
9
27200-83812-000
JOINT SET,UNIVERSAL
1988-05-01~1990-07-01 |
27200-83812-000 |
— | ||
|
9
|
9
27200-83813-000 Joint Set,universal1988-05-01~1990-07-01 |
27200-83813-000 |
from US $53.48 |
||
|
10
|
10
27225-60A00-000
サークリップ,ユニバーサルジョイント
1988-05-01~1990-07-01 |
27225-60A00-000 |
— | ||
| replacements | |||||
|
10
|
10
51118-36213-000 RING,SNAP1988-05-01~1990-07-01 |
51118-36213-000 |
from US $2.24 |
||
|
10
|
10
08331-41256-000
サークリップ
1988-05-01~1990-07-01 |
08331-41256-000 |
— | ||
|
11
|
11
01107-10303-000 ボルト1988-05-01~1990-07-01 |
01107-10303-000 |
US $1.72 |
||
| replacement | |||||
|
11
|
11
01500-1030A-000 BOLT1988-05-01~1990-07-01 |
01500-1030A-000 |
from US $0.96 |
||
|
12
|
12
09159-10090-000
ナット
1988-05-01~1990-07-01 |
09159-10090-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-10091-000 NUT1988-05-01~1990-07-01 |
09159-10091-000 |
US $2.88 |
||
