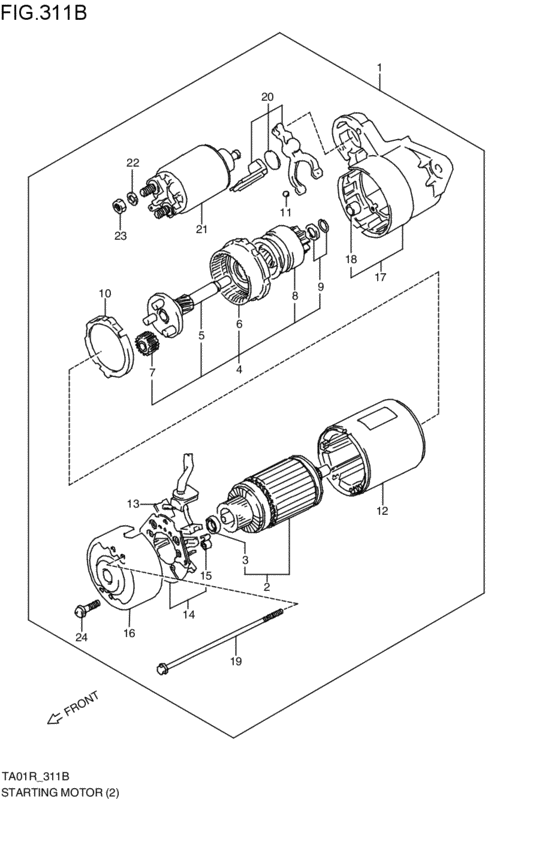

starting motor (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SD
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A10-000
モータアッシ,スターティング
3AT; 1988-05-01~1990-07-01 |
31100-60A10-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
3AT; 1988-05-01~1990-07-01 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTING3AT; 1988-05-01~1990-07-01 |
31100-60A24-000 |
US $668.80 |
||
|
2
|
2
31311-60A10-000
アマチュア
3AT; 1988-05-01~1990-07-01 |
31311-60A10-000 |
— | ||
| replacement | |||||
|
2
|
2
31311-60A11-000
アマチュア
3AT; 1988-05-01~1990-07-01 |
31311-60A11-000 |
— | ||
|
3
|
3
31172-86030-000
Bearing
3AT; 1988-05-01~1990-07-01 |
31172-86030-000 |
— | ||
|
4
|
4
31340-60A10-000
シャフトアッシ,クラッチ
3AT; 1988-05-01~1990-07-01 |
31340-60A10-000 |
— | ||
|
5
|
5
31341-60A10-000
SHAFT,GEAR
3AT; 1988-05-01~1990-07-01 |
31341-60A10-000 |
— | ||
|
6
|
6
31343-86030-000
ギヤアッシ
3AT; 1988-05-01~1990-07-01 |
31343-86030-000 |
— | ||
| replacement | |||||
|
6
|
6
31343-50F40-000
GEAR,INTERNAL
3AT; 1988-05-01~1990-07-01 |
31343-50F40-000 |
— | ||
|
7
|
7
31344-86030-000 GEAR,PLNTY3AT; 1988-05-01~1990-07-01 |
31344-86030-000 |
US $27.60 |
||
|
8
|
8
31320-60A10-000
クラッチ,オーバランニング
3AT; 1988-05-01~1990-07-01 |
31320-60A10-000 |
— | ||
|
9
|
9
31313-86030-000
STOPPER SET
3AT; 1988-05-01~1990-07-01 |
31313-86030-000 |
— | ||
| replacement | |||||
|
9
|
9
31314-86030-000 Stopper Set3AT; 1988-05-01~1990-07-01 |
31314-86030-000 |
from US $10.53 |
||
|
10
|
10
31345-86030-000
Packing
3AT; 1988-05-01~1990-07-01 |
31345-86030-000 |
— | ||
| replacement | |||||
|
10
|
10
31345-60A00-000 PACKING3AT; 1988-05-01~1990-07-01 |
31345-60A00-000 |
US $5.37 |
||
|
11
|
11
31193-86030-000 BALL3AT; 1988-05-01~1990-07-01 |
31193-86030-000 |
US $2.80 |
||
|
12
|
12
31110-60A10-000
ヨークアッシ
3AT; 1988-05-01~1990-07-01 |
31110-60A10-000 |
— | ||
| replacement | |||||
|
12
|
12
31110-56B10-000
YOKE ASSY
3AT; 1988-05-01~1990-07-01 |
31110-56B10-000 |
— | ||
|
13
|
13
31131-60A10-000 BRUSH ASSY3AT; 1988-05-01~1990-07-01 |
31131-60A10-000 |
US $13.47 |
||
|
14
|
14
31173-60A10-000
ホルダアッシ,ブラシ
3AT; 1988-05-01~1990-07-01 |
31173-60A10-000 |
— | ||
| replacement | |||||
|
14
|
14
31173-60A20-000 HOLDER ASSY,BRUSH3AT; 1988-05-01~1990-07-01 |
31173-60A20-000 |
US $61.09 |
||
|
15
|
15
31135-60A10-000
スプリング,ブラシ
3AT; 1988-05-01~1990-07-01 |
31135-60A10-000 |
— | ||
|
16
|
16
31170-60A10-000
ブラケットアッシ,リヤ
3AT; 1988-05-01~1990-07-01 |
31170-60A10-000 |
— | ||
|
17
|
17
31151-60A10-000
ブラケットアッシ,フロント
3AT; 1988-05-01~1990-07-01 |
31151-60A10-000 |
— | ||
|
18
|
18
31152-79030-000 BEARING,FRONT3AT; 1988-05-01~1990-07-01 |
31152-79030-000 |
from US $4.68 |
||
|
19
|
19
31261-60A10-000
Bolt
3AT; 1988-05-01~1990-07-01 |
31261-60A10-000 |
— | ||
|
20
|
20
31191-86030-000
LEVER ASSY
3AT; 1988-05-01~1990-07-01 |
31191-86030-000 |
— | ||
|
21
|
21
31220-86030-000 SWITCH ASSY3AT; 1988-05-01~1990-07-01 |
31220-86030-000 |
US $144.62 |
||
|
22
|
22
08321-21086-000
Wsherlck8.2x15.2x1.6
3AT; 1988-05-01~1990-07-01 |
08321-21086-000 |
— | ||
| replacements | |||||
|
22
|
22
08321-0108B-000 WASHER,LOCK3AT; 1988-05-01~1990-07-01 |
08321-0108B-000 |
from US $0.76 |
||
|
22
|
22
08321-0108A-000 WASHER,LOCK3AT; 1988-05-01~1990-07-01 |
08321-0108A-000 |
from US $0.80 |
||
|
23
|
23
08310-12086-000
ナット
3AT; 1988-05-01~1990-07-01 |
08310-12086-000 |
— | ||
| replacements | |||||
|
23
|
23
08310-0008A-000 NUTNut, bead stopper 3AT; 1988-05-01~1990-07-01 |
08310-0008A-000 |
from US $0.76 |
||
|
23
|
23
08310-0008B-000 NUT3AT; 1988-05-01~1990-07-01 |
08310-0008B-000 |
from US $0.80 |
||
|
24
|
24
31136-79030-000
SCREW ASSY
3AT; 1988-05-01~1990-07-01 |
31136-79030-000 |
— | ||
| replacement | |||||
|
24
|
24
31175-79030-000 Screw Set3AT; 1988-05-01~1990-07-01 |
31175-79030-000 |
US $8.16 |
||
