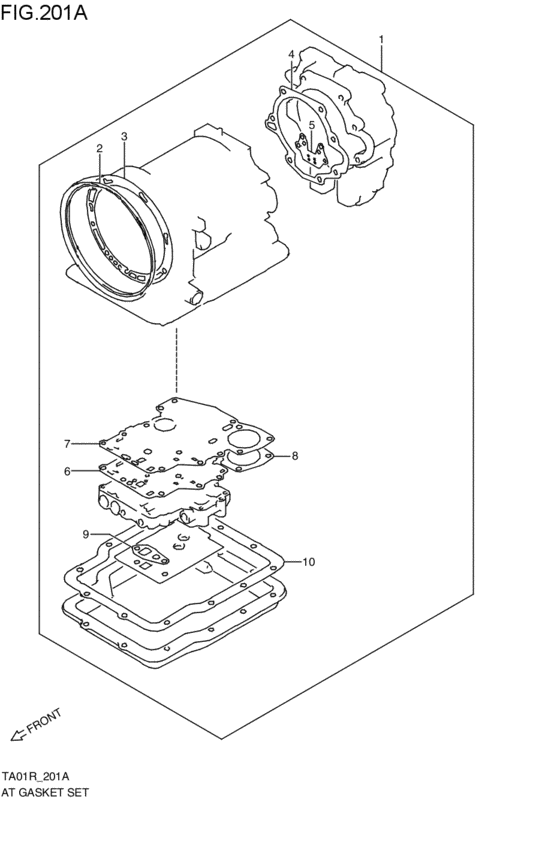

at - gasket set (3AT; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- SE
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24890-61A00-000
ガスケットセット,AT
3AT; 1988-05-01~1990-07-01 |
24890-61A00-000 |
— | ||
| replacement | |||||
|
1
|
1
24890-61A01-000 KIT,T/M GASKET3AT; 1988-05-01~1990-07-01 |
24890-61A01-000 |
US $240 |
||
|
2
|
2
22856-61A00-000
RING,OIL PUMP SEAL
3AT; 1988-05-01~1990-07-01 |
22856-61A00-000 |
— | ||
|
3
|
3
22857-61A00-000 GASKET,OIL PUMP3AT; 1988-05-01~1990-07-01 |
22857-61A00-000 |
US $7.43 |
||
|
4
|
4
24781-61A00-000 GASKET,T/F ADAPTER CASE3AT; 1988-05-01~1990-07-01 |
24781-61A00-000 |
US $6.59 |
||
|
5
|
5
26165-61A00-000
GASKET,GOVERNOR
3AT; 1988-05-01~1990-07-01 |
26165-61A00-000 |
— | ||
|
6
|
6
26566-61A00-000
ガスケット,バルブ
3AT; 1988-05-01~1990-07-01 |
26566-61A00-000 |
— | ||
| replacement | |||||
|
6
|
6
26566-61A01-000 GASKET,TRANSFER PLATE3AT; 1988-05-01~1990-07-01 |
26566-61A01-000 |
US $14.29 |
||
|
7
|
7
26569-61A00-000
ガスケット,ケース
3AT; 1988-05-01~1990-07-01 |
26569-61A00-000 |
— | ||
| replacement | |||||
|
7
|
7
26569-61A01-000 GASKET,VALVE BODY3AT; 1988-05-01~1990-07-01 |
26569-61A01-000 |
US $20.53 |
||
|
8
|
8
26927-61A00-000 GASKET,SERVO PISTON COVER3AT; 1988-05-01~1990-07-01 |
26927-61A00-000 |
US $14.29 |
||
|
9
|
9
26961-61A00-000 GASKET,SCREEN3AT; 1988-05-01~1990-07-01 |
26961-61A00-000 |
US $9.90 |
||
|
10
|
10
24752-61A00-000 GASKET,T/M OIL PAN3AT; 1988-05-01~1990-07-01 |
24752-61A00-000 |
from US $13.86 |
||
