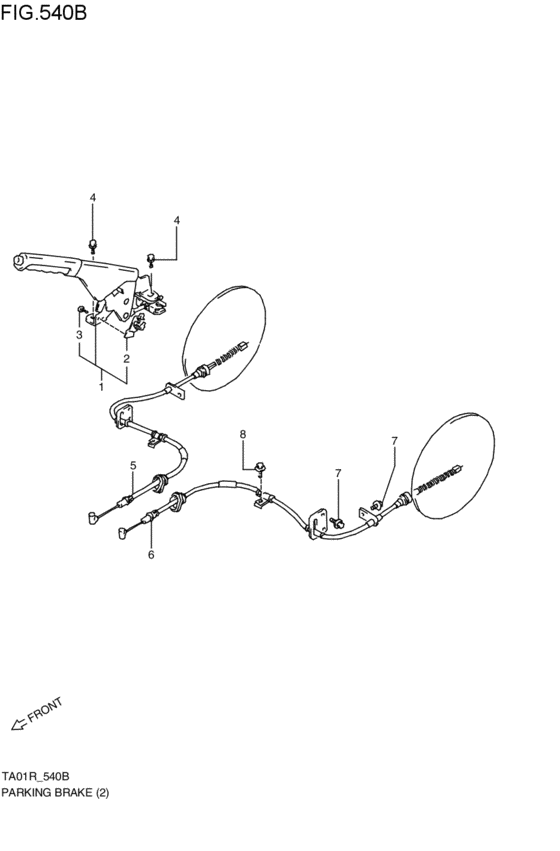

parking brakes (ワゴン:ハードトップ; W; 1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- XX
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-60A10-000
LEVER ASSY,PARKING BK
キーナシ; W; 1988-05-01~1990-07-01 |
54100-60A10-000 |
— | ||
| replacement | |||||
|
1
|
1
54100-60A11-000 LEVER ASSY,PARK BKキーナシ; W; 1988-05-01~1990-07-01 |
54100-60A11-000 |
US $236.80 |
||
|
2
|
2
37940-60A10-000 SWITCH ASSY,PARKING BRAKEW; 1988-05-01~1990-07-01 |
37940-60A10-000 |
US $13.12 |
||
|
3
|
3
54151-60A10-000
スクリュ,パーキングブレーキスイッチ
W; 1988-05-01~1990-07-01 |
54151-60A10-000 |
— | ||
| replacements | |||||
|
3
|
3
02142-0410A-000 SCREWW; 1988-05-01~1990-07-01 |
02142-0410A-000 |
from US $0.76 |
||
|
3
|
3
02142-04103-000
Screw 4x10
W; 1988-05-01~1990-07-01 |
02142-04103-000 |
— | ||
|
4
|
4
01147-08203-000
Bolt
W; 1988-05-01~1990-07-01 |
01147-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01570-0820B-000 BoltW; 1988-05-01~1990-07-01 |
01570-0820B-000 |
US $17.30 |
||
|
4
|
4
01570-0820A-000 BOLTW; 1988-05-01~1990-07-01 |
01570-0820A-000 |
from US $0.96 |
||
|
5
|
5
54410-60A00-000 CABLE,PARKING BRAKE,RW; 1988-05-01~1990-07-01 |
54410-60A00-000 |
US $77.28 |
||
|
6
|
6
54420-60A00-000 CABLE,PARKING BRAKE,LW; 1988-05-01~1990-07-01 |
54420-60A00-000 |
US $77.28 |
||
|
7
|
7
09116-06144-000
Bolt
W; 1988-05-01~1990-07-01 |
09116-06144-000 |
— | ||
| replacement | |||||
|
7
|
7
09116-06165-000 BOLT(6X16)Bolt, joint W; 1988-05-01~1990-07-01 |
09116-06165-000 |
from US $4.13 |
||
|
8
|
8
01517-08123-000
ボルト
W; 1988-05-01~1990-07-01 |
01517-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain W; 1988-05-01~1990-07-01 |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BOLTW; 1988-05-01~1990-07-01 |
01550-0812A-000 |
from US $0.91 |
||
