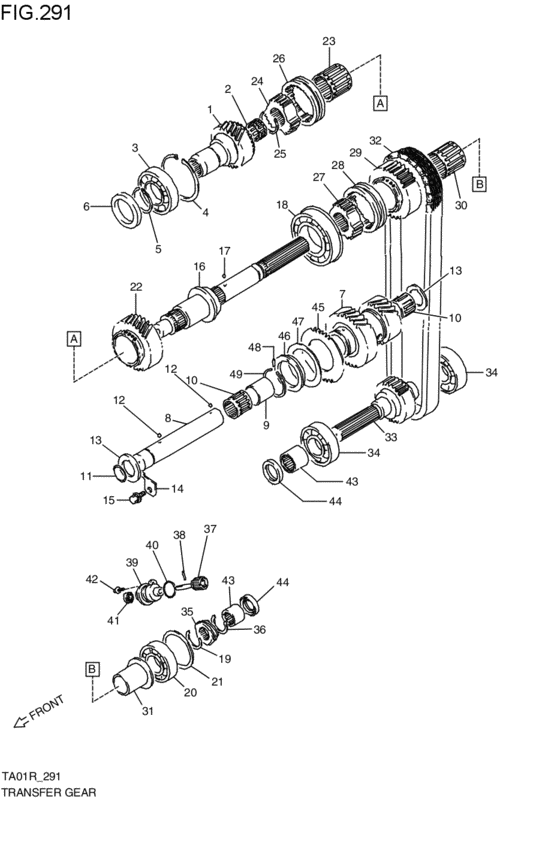

transfer gear (1988-05-01~1990-07-01) Diagram Suzuki ESCUDO
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- 2V
- supercharge
- EPI
- drive
- 4WD
- transmission
- 3AT
- grade
- XX
- body
- H
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29110-60A00-000
ギヤ,トランスファインプット
NT:23; 1988-05-01~1989-06-01 |
29110-60A00-000 |
— | ||
|
1
|
1
29110-60A01-000
ギヤ,トランスファインプット
NT:23; 1988-08-01~1990-07-01 |
29110-60A01-000 |
— | ||
| replacement | |||||
|
1
|
1
29110-60A03-000 GEAR,T/F INPUTNT:23; 1988-08-01~1990-07-01 |
29110-60A03-000 |
US $198.72 |
||
|
2
|
2
09263-24022-000 BEARING(24X30X17)1988-05-01~1990-07-01 |
09263-24022-000 |
US $19.01 |
||
|
3
|
3
09262-35042-000
ベアリング,35X72X17
1988-05-01~1990-07-01 |
09262-35042-000 |
— | ||
| replacement | |||||
|
3
|
3
09262-35051-000 BEARING(35X72X17)1988-05-01~1990-07-01 |
09262-35051-000 |
US $48.21 |
||
|
4
|
4
09381-72001-000 RING,SNAP1988-05-01~1990-07-01 |
09381-72001-000 |
from US $13.77 |
||
|
5
|
5
08331-31359-000 CIRCLIP1988-05-01~1990-07-01 |
08331-31359-000 |
from US $4.45 |
||
|
6
|
6
09282-35002-000 SEAL,OIL(35X55X9)1988-05-01~1990-07-01 |
09282-35002-000 |
from US $10.08 |
||
|
7
|
7
29121-60A00-000
ギヤ,トランスファカウンタ
NT:31/23; 1988-05-01~1989-06-01 |
29121-60A00-000 |
— | ||
| replacement | |||||
|
7
|
7
29121-60A03-000
GEAR,T/F COUNTER
NT:31/23; 1988-05-01~1989-06-01 |
29121-60A03-000 |
— | ||
|
7
|
7
29121-60A01-000
ギヤ,トランスファカウンタ
NT:31/23; 1989-06-01~1989-12-01 |
29121-60A01-000 |
— | ||
| replacements | |||||
|
7
|
7
29121-60A03-000
GEAR,T/F COUNTER
NT:31/23; 1989-06-01~1989-12-01 |
29121-60A03-000 |
— | ||
|
7
|
7
09166-25012-000 WASHERNT:31/23; 1989-06-01~1989-12-01 |
09166-25012-000 |
from US $9.77 |
||
|
7
|
7
09180-26004-000 SPACER(26X31X33.7)NT:31/23; 1989-06-01~1989-12-01 |
09180-26004-000 |
from US $3.74 |
||
|
7
|
7
29133-60A00-000 RING,T/F COUNTER GEAR FRICTIONNT:31/23; 1989-06-01~1989-12-01 |
29133-60A00-000 |
US $29.60 |
||
|
7
|
7
29121-60A02-000
ギヤ,トランスファカウンタ
1989-12-01~1990-07-01 |
29121-60A02-000 |
— | ||
| replacements | |||||
|
7
|
7
29121-60A03-000
GEAR,T/F COUNTER
1989-12-01~1990-07-01 |
29121-60A03-000 |
— | ||
|
7
|
7
09180-26004-000 SPACER(26X31X33.7)1989-12-01~1990-07-01 |
09180-26004-000 |
from US $3.74 |
||
|
7
|
7
29133-60A00-000 RING,T/F COUNTER GEAR FRICTION1989-12-01~1990-07-01 |
29133-60A00-000 |
US $29.60 |
||
|
8
|
8
29131-60A00-000
シャフト,トランスファカウンタ
1988-05-01~1989-06-01 |
29131-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
29131-60A02-000 SHAFT,T/F COUNTER1988-05-01~1989-06-01 |
29131-60A02-000 |
US $44.16 |
||
|
8
|
8
29131-60A01-000
シャフト,トランスファカウンタ
1989-06-01~1990-07-01 |
29131-60A01-000 |
— | ||
| replacement | |||||
|
8
|
8
29131-60A02-000 SHAFT,T/F COUNTER1989-06-01~1990-07-01 |
29131-60A02-000 |
US $44.16 |
||
|
9
|
9
09180-25087-000
スペーサ,26X31X34
1988-05-01~1989-06-01 |
09180-25087-000 |
— | ||
| replacement | |||||
|
9
|
9
09180-26003-000
スペーサ,26X31X41
1988-05-01~1989-06-01 |
09180-26003-000 |
— | ||
|
9
|
9
09180-26003-000
スペーサ,26X31X41
1989-06-01~1990-07-01 |
09180-26003-000 |
— | ||
|
10
|
10
09263-25051-000 BEARING(25.4X33.3X31.7)1988-05-01~1990-07-01 |
09263-25051-000 |
US $25.60 |
||
|
11
|
11
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) 1988-05-01~1990-07-01 |
09280-21008-000 |
from US $0.95 |
||
|
12
|
12
06111-06003-000 BALL1988-05-01~1990-07-01 |
06111-06003-000 |
from US $0.76 |
||
|
13
|
13
09166-25010-000
ワッシャ
1988-05-01~1989-12-01 |
09166-25010-000 |
— | ||
|
13
|
13
09166-25012-000 WASHER1989-12-01~1990-07-01 |
09166-25012-000 |
from US $9.77 |
||
|
14
|
14
29136-60A01-000 PLATE,T/F COUNTER SHAFT1988-05-01~1990-07-01 |
29136-60A01-000 |
US $2.08 |
||
|
15
|
15
01947-08166-000
ボルト
1988-05-01~1990-07-01 |
01947-08166-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 BOLT1988-05-01~1990-07-01 |
01570-0816A-000 |
from US $0.96 |
||
|
16
|
16
29141-60A00-000
Shaft,t/f output,rr
1988-05-01~1990-07-01 |
29141-60A00-000 |
— | ||
|
17
|
17
06111-06003-000 BALL1988-05-01~1990-07-01 |
06111-06003-000 |
from US $0.76 |
||
|
18
|
18
08173-62100-000 BEARING1988-05-01~1990-07-01 |
08173-62100-000 |
US $64.40 |
||
|
19
|
19
09380-30007-000 RING,SNAPCHKK; 1988-05-01~1990-07-01 |
09380-30007-000 |
US $21.70 |
||
|
20
|
20
08113-63060-000
Bearing
1988-05-01~1990-07-01 |
08113-63060-000 |
— | ||
| replacement | |||||
|
20
|
20
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r 1988-05-01~1990-07-01 |
09262-30077-000 |
from US $39.20 |
||
|
21
|
21
09181-62003-000 SHIM(62X71X0.1)1988-05-01~1990-07-01 |
09181-62003-000 |
from US $0.97 |
||
|
21
|
21
09181-62004-000 SHIM(62X71X0.3)1988-05-01~1990-07-01 |
09181-62004-000 |
from US $1.04 |
||
|
21
|
21
09181-62005-000 SHIM(62X71X0.5)1988-05-01~1990-07-01 |
09181-62005-000 |
US $11.80 |
||
|
21
|
21
09181-62008-000 SHIM(62X71X0.2)1988-05-01~1990-07-01 |
09181-62008-000 |
from US $1.69 |
||
|
21
|
21
09181-62009-000 SHIM(62X71X0.4)1988-05-01~1990-07-01 |
09181-62009-000 |
US $16.20 |
||
|
22
|
22
29211-60A00-000
GEAR,T/F OUTPUT,LOW
NT:31; 1988-05-01~1990-07-01 |
29211-60A00-000 |
— | ||
|
23
|
23
09263-38006-000 BEARING(38.1X47.6X44.4)1988-05-01~1990-07-01 |
09263-38006-000 |
US $74.40 |
||
|
24
|
24
29231-60A00-000
ハブ,リダクションクラッチ
1988-05-01~1990-07-01 |
29231-60A00-000 |
— | ||
| replacement | |||||
|
24
|
24
29230-60A01-000 HUB ASSY,REDUCTION1988-05-01~1990-07-01 |
29230-60A01-000 |
US $127.70 |
||
|
25
|
25
09380-34003-000 CIRCLIPCHKK; 1988-05-01~1990-07-01 |
09380-34003-000 |
US $27.20 |
||
|
26
|
26
29241-60A00-000
スリーブ,リダクションシフト
1988-05-01~1990-07-01 |
29241-60A00-000 |
— | ||
|
27
|
27
29232-60A00-000
ハブ,フロントドライブクラッチ
1988-05-01~1990-07-01 |
29232-60A00-000 |
— | ||
| replacement | |||||
|
27
|
27
29230-60A10-000 HUB ASSY,FR DRIVE1988-05-01~1990-07-01 |
29230-60A10-000 |
US $127.70 |
||
|
28
|
28
29242-60A00-000
スリーブ,フロントドライブクラッチ
1988-05-01~1990-07-01 |
29242-60A00-000 |
— | ||
|
29
|
29
29221-60A00-000 SPROCKET,T/F DRIVENT:26; 1988-05-01~1990-07-01 |
29221-60A00-000 |
US $255.36 |
||
|
30
|
30
09263-38006-000 BEARING(38.1X47.6X44.4)1988-05-01~1990-07-01 |
09263-38006-000 |
US $74.40 |
||
|
31
|
31
29222-60A00-000 BUSH,T/F SPROCKET1988-05-01~1990-07-01 |
29222-60A00-000 |
US $39.74 |
||
|
32
|
32
29225-60A00-000
チェーン,トランスファドライブ
1988-05-01~1990-07-01 |
29225-60A00-000 |
— | ||
| replacement | |||||
|
32
|
32
29225-60A01-000 CHAIN,T/F DRIVE1988-05-01~1990-07-01 |
29225-60A01-000 |
US $422.40 |
||
|
33
|
33
29151-60A00-000 SHAFT,T/F OUTPUT FRNT:26; 1988-05-01~1990-07-01 |
29151-60A00-000 |
US $237.12 |
||
|
34
|
34
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r 1988-05-01~1990-07-01 |
09262-30077-000 |
from US $39.20 |
||
|
35
|
35
29411-60A11-000
ギヤ,スピードメータドライブ
3AT; 1988-05-01~1990-07-01 |
29411-60A11-000 |
— | ||
|
36
|
36
09380-27002-000 CIRCLIPCHKK; 1988-05-01~1990-07-01 |
09380-27002-000 |
from US $1.98 |
||
|
37
|
37
29421-60A11-000
ギヤ,スピードメータドリブン
NT:24; 3AT; 1988-05-01~1990-07-01 |
29421-60A11-000 |
— | ||
| replacement | |||||
|
37
|
37
29421-60A12-000 GEAR,SPDOM DRIVENNT:24; 3AT; 1988-05-01~1990-07-01 |
29421-60A12-000 |
US $36.43 |
||
|
38
|
38
09205-03022-000
Spring pin
1988-05-01~1990-07-01 |
09205-03022-000 |
— | ||
| replacement | |||||
|
38
|
38
09205-03028-000 PIN,SPRING(3X14)Pin, driveshaft spring 1988-05-01~1990-07-01 |
09205-03028-000 |
US $12.50 |
||
|
39
|
39
29431-60A00-000
ケース,スピードメータドリブンギヤ
1988-05-01~1990-07-01 |
29431-60A00-000 |
— | ||
| replacement | |||||
|
39
|
39
29430-60810-000 CASE SET,SPEEDOMETER GEAR1988-05-01~1990-07-01 |
29430-60810-000 |
US $57.01 |
||
|
40
|
40
09280-24009-000 O RING(D:3.6,ID:23.5)O ring 1988-05-01~1990-07-01 |
09280-24009-000 |
from US $10.85 |
||
|
41
|
41
09282-07001-000
SEAL,OIL(7X16X5)
1988-05-01~1990-07-01 |
09282-07001-000 |
— | ||
|
42
|
42
01517-06163-000
Bolt
1988-05-01~1990-07-01 |
01517-06163-000 |
— | ||
| replacements | |||||
|
42
|
42
01550-0616B-000 BOLT1988-05-01~1990-07-01 |
01550-0616B-000 |
from US $0.76 |
||
|
42
|
42
01550-0616A-000 BOLT1988-05-01~1990-07-01 |
01550-0616A-000 |
from US $0.76 |
||
|
43
|
43
09263-40006-000 BEARING(40X47X30)1988-05-01~1990-07-01 |
09263-40006-000 |
from US $33.93 |
||
|
44
|
44
09283-40021-000 SEAL,OIL(40X54X10)Oil seal, final drive,fr 1988-05-01~1990-07-01 |
09283-40021-000 |
from US $12.83 |
||
|
45
|
45
29137-60A10-000
GEAR,T/F FRICTION
1989-12-01~1990-07-01 |
29137-60A10-000 |
— | ||
|
46
|
46
29138-60A00-000
RETAINER,T/F FRICTION
1989-12-01~1990-07-01 |
29138-60A00-000 |
— | ||
|
47
|
47
29139-60A00-000
Spring,transfer friction gr
CHKK; 1989-12-01~1990-07-01 |
29139-60A00-000 |
— | ||
|
48
|
48
09261-02002-000
PIN(2X5.5)
1989-12-01~1990-07-01 |
09261-02002-000 |
— | ||
|
49
|
49
09380-43001-000 RING1989-12-01~1990-07-01 |
09380-43001-000 |
US $38.60 |
||
