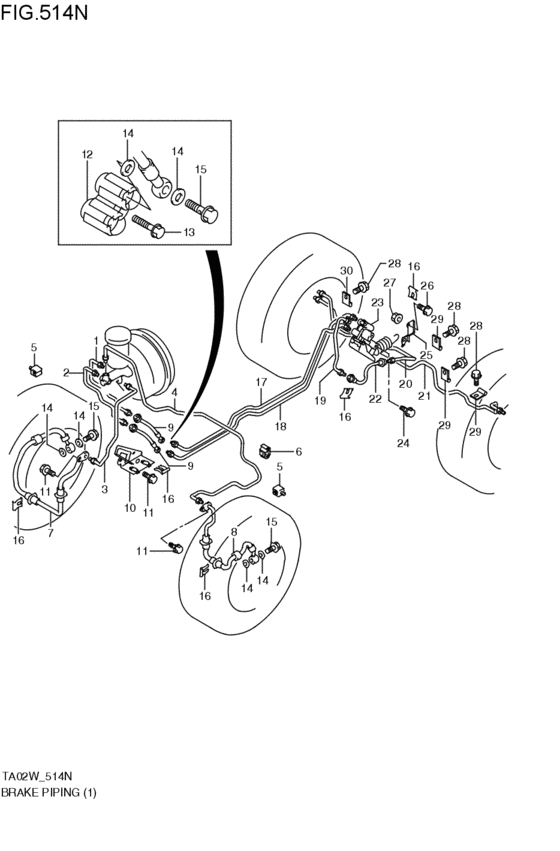

brakes piping (NABS; 1997-11-01~) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51310-65D00-000 PIPE,MA PRI TO JOINTNABS; 1997-11-01~ |
51310-65D00-000 |
US $12.92 |
||
|
2
|
2
51410-65D00-000 PIPE,MA SEC TO JOINTNABS; 1997-11-01~ |
51410-65D00-000 |
US $10.49 |
||
|
3
|
3
51420-65D00-000
パイプ,マスタセカンダリツーブレーキホース,ライト
NABS; 1997-11-01~ |
51420-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
51420-65D01-000
PIPE,MA SEC TO FR BK HOSE
NABS; 1997-11-01~ |
51420-65D01-000 |
— | ||
|
4
|
4
51430-65D00-000 PIPE,MA SEC TO FR BK HOSENABS; 1997-11-01~ |
51430-65D00-000 |
US $17.30 |
||
|
5
|
5
51435-60A00-000 CLAMP,BRAKE PIPE SIDENABS; 1997-11-01~ |
51435-60A00-000 |
US $2.24 |
||
|
6
|
6
51751-60B00-000 CLAMP,BRAKE PIPENABS; 1997-11-01~ |
51751-60B00-000 |
US $1.60 |
||
|
7
|
7
51540-65D00-000 HOSE,FR BRAKE FLEXIBLE,RNABS; 1997-11-01~ |
51540-65D00-000 |
from US $79.97 |
||
|
8
|
8
51550-65D00-000 HOSE,FR BRAKE FLEXIBLE,LNABS; 1997-11-01~ |
51550-65D00-000 |
from US $82.80 |
||
|
9
|
9
51570-60A30-000 HOSE,MA CYL FLEXIBLENABS; 1997-11-01~ |
51570-60A30-000 |
US $15.20 |
||
|
10
|
10
51712-65D00-000 BRACKET,BODY TO FRAME HOSENABS; 1997-11-01~ |
51712-65D00-000 |
US $12.14 |
||
|
11
|
11
02162-06163-000
Screw
NABS; 1997-11-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0616B-000 SCREWBolt, adjust NABS; 1997-11-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
12
|
12
51630-65D00-000
ジョイント,ブレーキ4ウェイ
NABS; 1997-11-01~ |
51630-65D00-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0630A-000 BOLTNABS; 1997-11-01~ |
01550-0630A-000 |
from US $0.96 |
||
|
12
|
12
51630-65D03-000 JOINT,4WAY BRAKENABS; 1997-11-01~ |
51630-65D03-000 |
US $24.29 |
||
|
12
|
12
01550-06303-000
Bolt (6x30)
NABS; 1997-11-01~ |
01550-06303-000 |
— | ||
|
13
|
13
01550-06253-000
Bolt (6x25)
NABS; 1997-11-01~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0625B-000 BOLTBolt, head cover NABS; 1997-11-01~ |
01550-0625B-000 |
from US $0.91 |
||
|
13
|
13
01550-0625A-000 BOLTBolt NABS; 1997-11-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
14
|
14
09161-10009-000 WASHER(10X15X1.5)Lock washer NABS; 1997-11-01~ |
09161-10009-000 |
from US $1.06 |
||
|
15
|
15
09360-10026-000 Union boltNABS; 1997-11-01~ |
09360-10026-000 |
from US $1.85 |
||
|
16
|
16
09383-13001-000 E RINGNABS; 1997-11-01~ |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
16
|
16
09383-13003-000 E-RINGNABS; 1997-11-01~ |
09383-13003-000 |
from US $1.60 |
||
|
17
|
17
51510-65D00-000 PIPE,JOINT TO VALVE REARNABS:3DR; 1997-11-01~ |
51510-65D00-000 |
US $26.13 |
||
|
18
|
18
51535-65D00-000 PIPE,JOINT TO VALVE FRONTNABS:3DR; 1997-11-01~ |
51535-65D00-000 |
US $29.26 |
||
|
19
|
19
51520-65D00-000 PIPE,VALVE TO RR BK HOSENABS:3DR; 1997-11-01~ |
51520-65D00-000 |
US $9.05 |
||
|
20
|
20
51525-65D00-000 PIPE,RR BK HOSE TO R BK ASSYNABS; 1997-11-01~ |
51525-65D00-000 |
US $14.88 |
||
|
21
|
21
51530-65D00-000 PIPE,R BK ASSY TO L BK ASSYNABS; 1997-11-01~ |
51530-65D00-000 |
from US $19.20 |
||
|
22
|
22
51560-65D00-000 HOSE,RR BRAKE FLEXIBLENABS; 1997-11-01~ |
51560-65D00-000 |
from US $22.37 |
||
|
23
|
23
51930-65D00-000 VALVE ASSY,L.S.P.NABS:3DR; 1997-11-01~ |
51930-65D00-000 |
US $283.36 |
||
|
24
|
24
01550-08203-000
Bolt
NABS; 1997-11-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0820B-000 BoltNABS; 1997-11-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
24
|
24
01550-0820A-000 BOLTBolt, funnel bracket NABS; 1997-11-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
25
|
25
51955-65D00-000 STAY,LSPVNABS; 1997-11-01~ |
51955-65D00-000 |
US $8.13 |
||
|
26
|
26
01550-08123-000
Bolt
NABS; 1997-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0812B-000 BoltPlug, drain NABS; 1997-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
26
|
26
01550-0812A-000 BOLTNABS; 1997-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
27
|
27
08316-10083-000
Nut
NABS; 1997-11-01~ |
08316-10083-000 |
— | ||
| replacement | |||||
|
27
|
27
08316-1008B-000 NUTNABS; 1997-11-01~ |
08316-1008B-000 |
from US $0.76 |
||
|
28
|
28
09132-06006-000 SCREW(6X12)NABS; 1997-11-01~ |
09132-06006-000 |
US $1.60 |
||
|
29
|
29
09403-06401-000 CLAMPNABS; 1997-11-01~ |
09403-06401-000 |
from US $2.08 |
||
|
30
|
30
09403-06404-000 CLAMPNABS; 1997-11-01~ |
09403-06404-000 |
US $2.72 |
||
