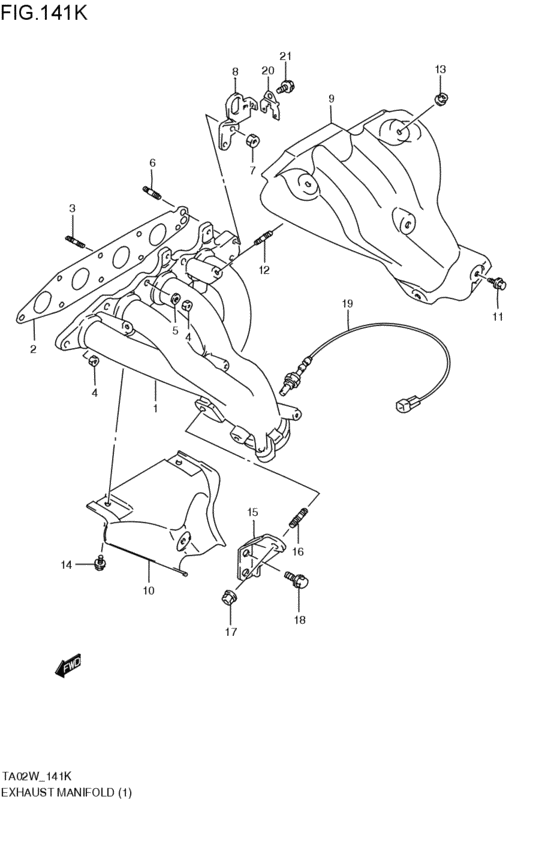

exhaust manifold (G16A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-58BV0-000 MANIFOLD,EXHG16A; 1997-11-01~2000-03-01 |
14111-58BV0-000 |
US $548.72 |
||
|
2
|
2
14140-52G00-000 Gasket, exhaust manifoldG16A; 1997-11-01~2000-03-01 |
14140-52G00-000 |
from US $14.04 |
||
|
3
|
3
01421-08253-000
Stud bolt, no.2
G16A; 1997-11-01~2000-03-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0825A-000 BOLT,STUDG16A; 1997-11-01~2000-03-01 |
01421-0825A-000 |
from US $1.12 |
||
|
4
|
4
08310-00083-000
Nut
G16A; 1997-11-01~2000-03-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUTG16A; 1997-11-01~2000-03-01 |
08310-0008B-000 |
from US $0.80 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper G16A; 1997-11-01~2000-03-01 |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
08322-01083-000
WASHER
G16A; 1997-11-01~2000-03-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
5
|
5
08322-0108B-000 WASHERG16A; 1997-11-01~2000-03-01 |
08322-0108B-000 |
from US $0.80 |
||
|
5
|
5
08322-0108A-000 WASHERG16A; 1997-11-01~2000-03-01 |
08322-0108A-000 |
from US $0.80 |
||
|
6
|
6
01421-08353-000
Bolt, stud
G16A; 1997-11-01~2000-03-01 |
01421-08353-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0835A-000 BOLT,STUDStud bolt (8x35) G16A; 1997-11-01~2000-03-01 |
01421-0835A-000 |
from US $1.44 |
||
|
7
|
7
08310-00083-000
Nut
G16A; 1997-11-01~2000-03-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0008B-000 NUTG16A; 1997-11-01~2000-03-01 |
08310-0008B-000 |
from US $0.80 |
||
|
7
|
7
08310-0008A-000 NUTNut, bead stopper G16A; 1997-11-01~2000-03-01 |
08310-0008A-000 |
from US $0.76 |
||
|
8
|
8
11851-66D01-000 H00K,ENGINEG16A; 1997-11-01~2000-03-01 |
11851-66D01-000 |
US $8.50 |
||
|
9
|
9
14120-58B02-000 COVER,EXH MANF,UPPERG16A; 1997-11-01~2000-03-01 |
14120-58B02-000 |
US $73.97 |
||
|
10
|
10
14130-58B00-000 COVER,EXH MANF,LOWERG16A; 1997-11-01~2000-03-01 |
14130-58B00-000 |
US $64.03 |
||
|
11
|
11
09103-06168-000 BOLT(6X10)G16A; 1997-11-01~2000-03-01 |
09103-06168-000 |
from US $1.01 |
||
|
12
|
12
01411-06123-000
Bolt, stud
G16A; 1997-11-01~2000-03-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
12
|
12
01411-0612A-000 BOLT,STUDG16A; 1997-11-01~2000-03-01 |
01411-0612A-000 |
from US $0.67 |
||
|
13
|
13
08316-10063-000
Nut
G16A; 1997-11-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUTG16A; 1997-11-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
14
|
14
09103-06168-000 BOLT(6X10)G16A; 1997-11-01~2000-03-01 |
09103-06168-000 |
from US $1.01 |
||
|
15
|
15
14270-58B00-000 STIFFENER,EXH MANFG16A; 1997-11-01~2000-03-01 |
14270-58B00-000 |
US $34.04 |
||
|
16
|
16
01411-10163-000
スタッドボルト
G16A; 1997-11-01~2000-03-01 |
01411-10163-000 |
— | ||
| replacement | |||||
|
16
|
16
01411-1016A-000 BOLT,STUDG16A; 1997-11-01~2000-03-01 |
01411-1016A-000 |
US $1.60 |
||
|
17
|
17
08316-10103-000
Nut
G16A; 1997-11-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1010B-000 NUTG16A; 1997-11-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
18
|
18
01550-10203-000
Bolt
G16A; 1997-11-01~2000-03-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-1020A-000 BOLTBolt, bal sprocket G16A; 1997-11-01~2000-03-01 |
01550-1020A-000 |
from US $0.96 |
||
|
19
|
19
18213-65D01-000
センサ,オキシジェン
G16A; 1997-11-01~2000-03-01 |
18213-65D01-000 |
— | ||
| replacement | |||||
|
19
|
19
18213-65D02-000 SENSOR ASSY,OXYGENG16A; 1997-11-01~2000-03-01 |
18213-65D02-000 |
US $242.88 |
||
|
20
|
20
18214-65D11-000 BRACKET,OXYGEN SENSORG16A; 1997-11-01~2000-03-01 |
18214-65D11-000 |
US $3.16 |
||
|
21
|
21
02162-06103-000
Bolt
G16A; 1997-11-01~2000-03-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
21
|
21
02162-0610A-000 SCREWG16A; 1997-11-01~2000-03-01 |
02162-0610A-000 |
from US $0.64 |
||
