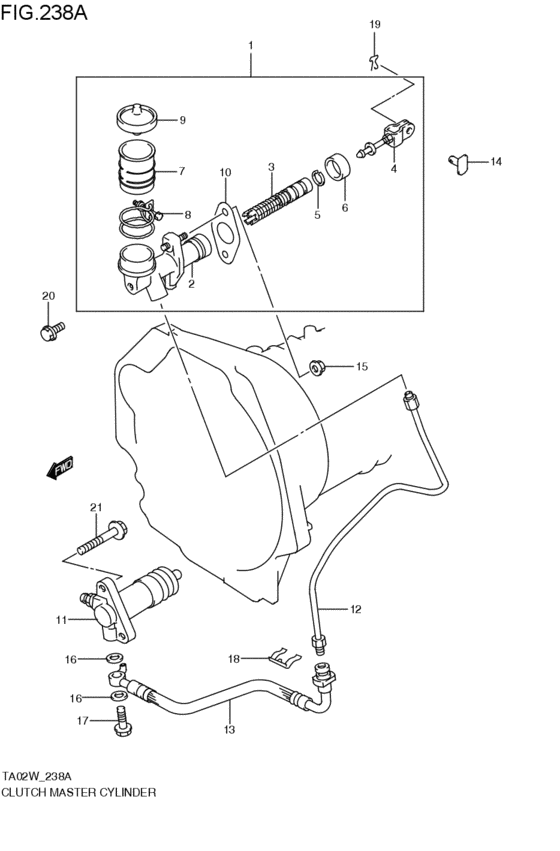

mt - clutch master cylinder (MT; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23810-65D00-000
Cylinder assy,clutch master
MT; 1997-11-01~2000-03-01 |
23810-65D00-000 |
— | ||
| replacement | |||||
|
1
|
1
23810-65D01-000 CYLINDER ASSY,CLUTCH MASTERMT; 1997-11-01~2000-03-01 |
23810-65D01-000 |
from US $129.24 |
||
|
2
|
2
23811-65D00-000 BODY,CLUTCH MASTER CYLINDERMT; 1997-11-01~2000-03-01 |
23811-65D00-000 |
US $114.40 |
||
|
3
|
3
23812-65D00-000 PISTON ASSYMT; 1997-11-01~2000-03-01 |
23812-65D00-000 |
US $38.64 |
||
|
4
|
4
23813-65D00-000 PUSH ROD DAMPER ASSYMT; 1997-11-01~2000-03-01 |
23813-65D00-000 |
US $32.75 |
||
|
5
|
5
23814-65D00-000 CIRCLIPMT; 1997-11-01~2000-03-01 |
23814-65D00-000 |
US $2.10 |
||
|
6
|
6
23815-65D00-000 BOOTMT; 1997-11-01~2000-03-01 |
23815-65D00-000 |
US $3.64 |
||
|
7
|
7
23816-65D00-000 RESERVOIRMT; 1997-11-01~2000-03-01 |
23816-65D00-000 |
US $10.08 |
||
|
8
|
8
23817-65D00-000 BAND ASSYMT; 1997-11-01~2000-03-01 |
23817-65D00-000 |
US $3.31 |
||
|
9
|
9
23818-65D00-000 CAPMT; 1997-11-01~2000-03-01 |
23818-65D00-000 |
from US $11.59 |
||
|
10
|
10
23819-65D00-000 SEAL,CLUTCH MASTER CYLINDERMT; 1997-11-01~2000-03-01 |
23819-65D00-000 |
US $2.39 |
||
|
11
|
11
23820-65D00-000
Cylinder assy,clutch operating
MT; 1997-11-01~2000-03-01 |
23820-65D00-000 |
— | ||
| replacement | |||||
|
11
|
11
23820-65D01-000 CYLINDER ASSY,CLUTCH OPERATINGMT; 1997-11-01~2000-03-01 |
23820-65D01-000 |
from US $89.78 |
||
|
12
|
12
23830-67D50-000
PIPE,CLUTCH OIL
MT; 1998-03-01~2000-03-01 |
23830-67D50-000 |
— | ||
|
12
|
12
23830-65D50-000
パイプ,クラッチオイル
MT; 1997-11-01~1998-04-01 |
23830-65D50-000 |
— | ||
| replacement | |||||
|
12
|
12
23830-67D50-000
PIPE,CLUTCH OIL
MT; 1997-11-01~1998-04-01 |
23830-67D50-000 |
— | ||
|
13
|
13
23850-65D00-000 HOSE,CLUTCH OILMT; 1997-11-01~2000-03-01 |
23850-65D00-000 |
from US $52.88 |
||
|
14
|
14
23875-65D00-000 PIN,CLUTCH MASTER CYL JOINTMT; 1997-11-01~2000-03-01 |
23875-65D00-000 |
US $2.88 |
||
|
15
|
15
09159-08069-000
Nut
MT; 1997-11-01~2000-03-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-08135-000 NUTMT; 1997-11-01~2000-03-01 |
09159-08135-000 |
from US $0.77 |
||
|
16
|
16
09161-10009-000 WASHER(10X15X1.5)Lock washer MT; 1997-11-01~2000-03-01 |
09161-10009-000 |
from US $1.06 |
||
|
17
|
17
09360-10026-000 Union boltMT; 1997-11-01~2000-03-01 |
09360-10026-000 |
from US $1.85 |
||
|
18
|
18
09383-13001-000 E RINGMT; 1997-11-01~2000-03-01 |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
18
|
18
09383-13003-000 E-RINGMT; 1997-11-01~2000-03-01 |
09383-13003-000 |
from US $1.60 |
||
|
19
|
19
09385-08007-000 PIN,SNAPClip MT; 1997-11-01~2000-03-01 |
09385-08007-000 |
from US $1.09 |
||
|
20
|
20
01550-08203-000
Bolt
MT; 1997-11-01~2000-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0820B-000 BoltMT; 1997-11-01~2000-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
20
|
20
01550-0820A-000 BOLTBolt, funnel bracket MT; 1997-11-01~2000-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
21
|
21
01550-10353-000
Bolt
MT; 1997-11-01~2000-03-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-1035A-000 BOLTBolt, fr fork upper MT; 1997-11-01~2000-03-01 |
01550-1035A-000 |
from US $5.68 |
||
