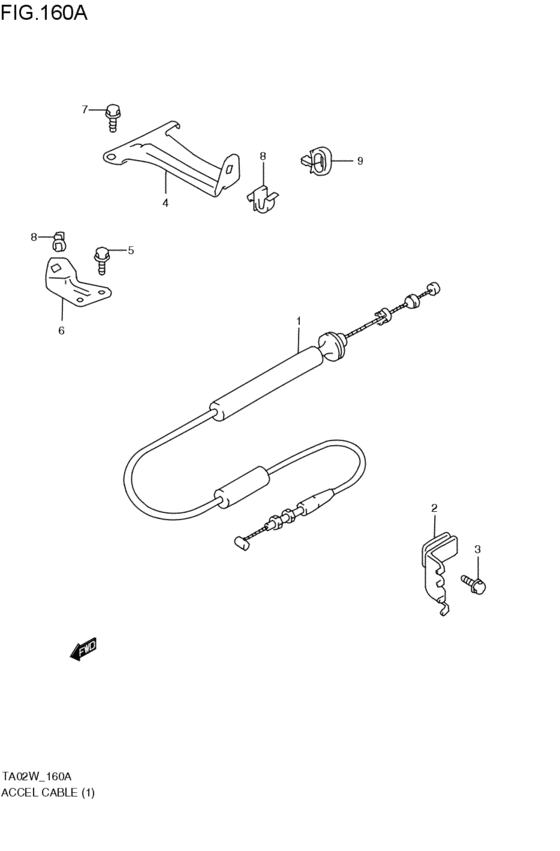

accelerator cable (G16A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-65D00-000
ケーブルアッシ,アクセル
G16A; 1997-11-01~2000-03-01 |
15910-65D00-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-65D03-000 CABLE ASSY,ACCELG16A; 1997-11-01~2000-03-01 |
15910-65D03-000 |
US $42.69 |
||
|
2
|
2
15919-65D00-000 GUIDE,ACCEL CABLEG16A; 1997-11-01~2000-03-01 |
15919-65D00-000 |
US $13.87 |
||
|
3
|
3
09103-06092-000 BOLT(6X15)Bolt (6x15) G16A; 1997-11-01~2000-03-01 |
09103-06092-000 |
from US $1.22 |
||
|
4
|
4
15918-66D10-000
BRACKET,ACCEL CABLE CLAMP
G16A; 1997-11-01~2000-03-01 |
15918-66D10-000 |
— | ||
|
5
|
5
01550-06123-000
Bolt
G16A; 1997-11-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp G16A; 1997-11-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTG16A; 1997-11-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
15918-65D10-000
BRACKET,ACCEL CABLE BODY SIDE
G16A; 1997-11-01~2000-03-01 |
15918-65D10-000 |
— | ||
|
7
|
7
02162-06103-000
Bolt
G16A; 1997-11-01~2000-03-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
7
|
7
02162-0610A-000 SCREWG16A; 1997-11-01~2000-03-01 |
02162-0610A-000 |
from US $0.64 |
||
|
8
|
8
09403-05313-000
Clip, band
G16A; 1997-11-01~2000-03-01 |
09403-05313-000 |
— | ||
| replacement | |||||
|
8
|
8
18214-75F00-000 CLAMPG16A; 1997-11-01~2000-03-01 |
18214-75F00-000 |
from US $1.82 |
||
|
9
|
9
09403-24302-000 CLAMPG16A; 1997-11-01~2000-03-01 |
09403-24302-000 |
US $28.70 |
||
