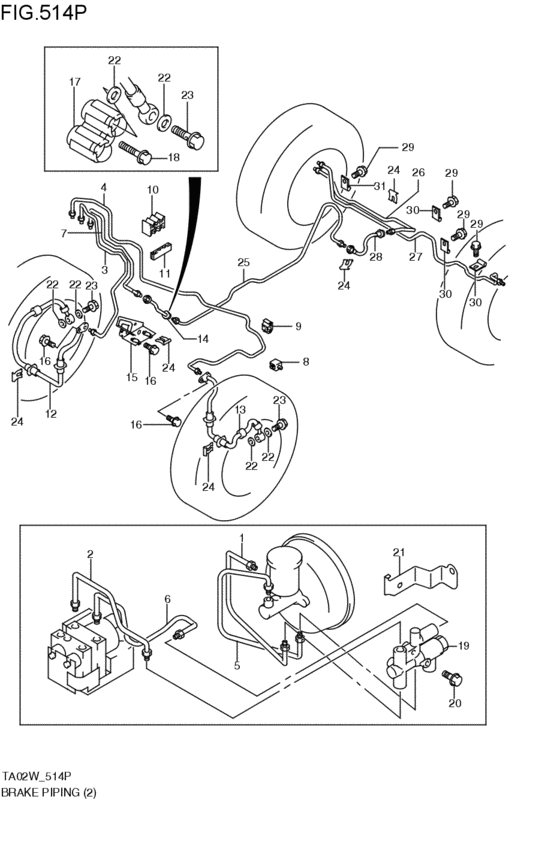

brakes piping (ABS; 1997-11-01~) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51310-65D50-000
パイプ,マスタプライマリツーバルブ,フロント
ABS; 1997-11-01~ |
51310-65D50-000 |
— | ||
|
2
|
2
51320-65D50-000
パイプ,バルブフロントツーユニット
ABS; 1997-11-01~ |
51320-65D50-000 |
— | ||
|
3
|
3
51330-65D50-000
PIPE,HU TO FR BK HOSE
ABS; 1997-11-01~ |
51330-65D50-000 |
— | ||
|
4
|
4
51340-65D50-000
PIPE,UNIT TO FR BK HOSE
ABS; 1997-11-01~ |
51340-65D50-000 |
— | ||
|
5
|
5
51410-65D50-000
PIPE,MA SEC TO PV REAR
ABS; 1997-11-01~ |
51410-65D50-000 |
— | ||
|
6
|
6
51420-65D50-000
PIPE,VALVE REAR TO HU
ABS; 1997-11-01~ |
51420-65D50-000 |
— | ||
|
7
|
7
51430-65D50-000
PIPE,HU TO JOINT
ABS; 1997-11-01~ |
51430-65D50-000 |
— | ||
|
8
|
8
51435-60A00-000 CLAMP,BRAKE PIPE SIDEABS; 1997-11-01~ |
51435-60A00-000 |
US $2.24 |
||
|
9
|
9
51751-60B00-000 CLAMP,BRAKE PIPEABS; 1997-11-01~ |
51751-60B00-000 |
US $1.60 |
||
|
10
|
10
51753-60G00-000 CLAMP,PIPE HUABS; 1997-11-01~ |
51753-60G00-000 |
US $2.69 |
||
|
11
|
11
51791-50G50-000 CLAMP,BRAKE PIPEABS; 1997-11-01~ |
51791-50G50-000 |
US $3.61 |
||
|
12
|
12
51540-65D00-000 HOSE,FR BRAKE FLEXIBLE,RABS; 1997-11-01~ |
51540-65D00-000 |
from US $79.97 |
||
|
13
|
13
51550-65D00-000 HOSE,FR BRAKE FLEXIBLE,LABS; 1997-11-01~ |
51550-65D00-000 |
from US $82.80 |
||
|
14
|
14
51570-60A30-000 HOSE,MA CYL FLEXIBLEABS; 1997-11-01~ |
51570-60A30-000 |
US $15.20 |
||
|
15
|
15
51712-65D00-000 BRACKET,BODY TO FRAME HOSEABS; 1997-11-01~ |
51712-65D00-000 |
US $12.14 |
||
|
16
|
16
02162-06163-000
Screw
ABS; 1997-11-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0616B-000 SCREWBolt, adjust ABS; 1997-11-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
17
|
17
51610-65D00-000
ジョイント,ブレーキ2ウェイ
ABS; 1997-11-01~ |
51610-65D00-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0630A-000 BOLTABS; 1997-11-01~ |
01550-0630A-000 |
from US $0.96 |
||
|
17
|
17
51610-65D03-000 JOINT,2WAY BRAKEABS; 1997-11-01~ |
51610-65D03-000 |
US $39.20 |
||
|
17
|
17
01550-06303-000
Bolt (6x30)
ABS; 1997-11-01~ |
01550-06303-000 |
— | ||
|
18
|
18
01550-06253-000
Bolt (6x25)
ABS; 1997-11-01~ |
01550-06253-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0625B-000 BOLTBolt, head cover ABS; 1997-11-01~ |
01550-0625B-000 |
from US $0.91 |
||
|
18
|
18
01550-0625A-000 BOLTBolt ABS; 1997-11-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
19
|
19
51920-65D00-000
Valve assy,proportioning
ABS:((G16A,J20A):NORMAL); 1997-11-01~ |
51920-65D00-000 |
— | ||
|
20
|
20
01550-06403-000
Bolt (green)
ABS; 1997-11-01~ |
01550-06403-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0640B-000 BoltABS; 1997-11-01~ |
01550-0640B-000 |
from US $0.96 |
||
|
20
|
20
01550-0640A-000 BoltBolt (l:40) ABS; 1997-11-01~ |
01550-0640A-000 |
from US $3.83 |
||
|
21
|
21
51925-65D00-000
ブラケット,プロポーショニングバルブ
ABS; 1997-11-01~ |
51925-65D00-000 |
— | ||
|
22
|
22
09161-10009-000 WASHER(10X15X1.5)Lock washer ABS; 1997-11-01~ |
09161-10009-000 |
from US $1.06 |
||
|
23
|
23
09360-10026-000 Union boltABS; 1997-11-01~ |
09360-10026-000 |
from US $1.85 |
||
|
24
|
24
09383-13001-000 E RINGABS; 1997-11-01~ |
09383-13001-000 |
from US $1.60 |
||
| replacement | |||||
|
24
|
24
09383-13003-000 E-RINGABS; 1997-11-01~ |
09383-13003-000 |
from US $1.60 |
||
|
25
|
25
51510-65D50-000 PIPE,JOINT TO RR BK HOSEABS:3DR; 1997-11-01~ |
51510-65D50-000 |
US $31.28 |
||
|
26
|
26
51525-65D00-000 PIPE,RR BK HOSE TO R BK ASSYABS; 1997-11-01~ |
51525-65D00-000 |
US $14.88 |
||
|
27
|
27
51530-65D00-000 PIPE,R BK ASSY TO L BK ASSYABS; 1997-11-01~ |
51530-65D00-000 |
from US $19.20 |
||
|
28
|
28
51560-65D00-000 HOSE,RR BRAKE FLEXIBLEABS; 1997-11-01~ |
51560-65D00-000 |
from US $22.37 |
||
|
29
|
29
09132-06006-000 SCREW(6X12)ABS; 1997-11-01~ |
09132-06006-000 |
US $1.60 |
||
|
30
|
30
09403-06401-000 CLAMPABS; 1997-11-01~ |
09403-06401-000 |
from US $2.08 |
||
|
31
|
31
09403-06404-000 CLAMPABS; 1997-11-01~ |
09403-06404-000 |
US $2.72 |
||
