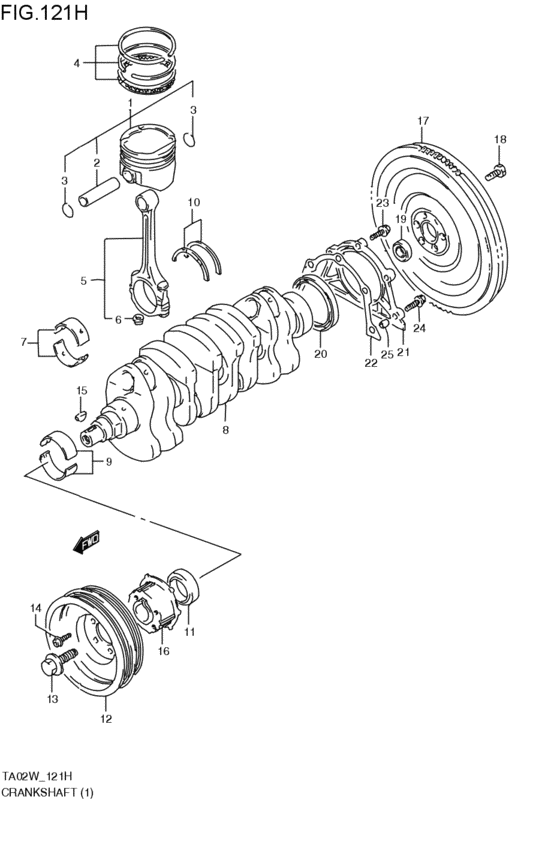

crankshaft (G16A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-61850-0A0 PISTON SET,STD MARK 1マ-ク 1; G16A; 1997-11-01~2000-03-01 |
12100-61850-0A0 |
US $78.75 |
||
|
1
|
1
12100-61850-0B0 PISTON SET,STD MARK 2マ-ク 2; G16A; 1997-11-01~2000-03-01 |
12100-61850-0B0 |
US $149.60 |
||
|
2
|
2
12151-86501-000 PIN,PISTONG16A; 1997-11-01~2000-03-01 |
12151-86501-000 |
US $9.44 |
||
|
3
|
3
09381-19001-000 RING,SNAPSnap ring NHK; G16A; 1997-11-01~2000-03-01 |
09381-19001-000 |
from US $1.06 |
||
|
4
|
4
12140-61G50-000 RING SET,PISTONG16A; 1997-11-01~2000-03-01 |
12140-61G50-000 |
US $82.08 |
||
|
5
|
5
12160-71C00-000
Connrod assy
G16A; 1997-11-01~2000-03-01 |
12160-71C00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-71C20-000 CONNROD ASSYG16A; 1997-11-01~2000-03-01 |
12160-71C20-000 |
US $111.20 |
||
|
6
|
6
09159-08033-000 NUTG16A; 1997-11-01~2000-03-01 |
09159-08033-000 |
from US $1.34 |
||
|
7
|
7
12100-60821-0A0
Bearing set, connrod
G16A; 1997-11-01~2000-03-01 |
12100-60821-0A0 |
— | ||
| replacement | |||||
|
7
|
7
12100-60822-0A0 BEARING SET,CONNRODG16A; 1997-11-01~2000-03-01 |
12100-60822-0A0 |
US $28.80 |
||
|
7
|
7
12100-60821-025
Bearing set, connrod (us:0.25)
G16A; 1997-11-01~2000-03-01 |
12100-60821-025 |
— | ||
| replacement | |||||
|
7
|
7
12100-60822-025 BEARING SET,CONNROD US:025G16A; 1997-11-01~2000-03-01 |
12100-60822-025 |
US $27.36 |
||
|
8
|
8
12221-71C00-000 CRANKSHAFTG16A; 1997-11-01~2000-03-01 |
12221-71C00-000 |
US $958.40 |
||
|
9
|
9
12340-58B00-0A0
Bearing set,cra
カラー:グリーン; G16A; 1997-11-01~2000-03-01 |
12340-58B00-0A0 |
— | ||
| replacements | |||||
|
9
|
9
12340-57K02-0C0 BEARING SET,CRANK GREENカラー:グリーン; G16A; 1997-11-01~2000-03-01 |
12340-57K02-0C0 |
US $32 |
||
|
9
|
9
12340-58BA0-0A0
Bearing set, main (green)
カラー:グリーン; G16A; 1997-11-01~2000-03-01 |
12340-58BA0-0A0 |
— | ||
|
9
|
9
12340-58B00-0B0
Bearing set,cra
カラー:ブラック; G16A; 1997-11-01~2000-03-01 |
12340-58B00-0B0 |
— | ||
| replacements | |||||
|
9
|
9
12340-57K02-0D0 BEARING SET,CRANK BLACKカラー:ブラック; G16A; 1997-11-01~2000-03-01 |
12340-57K02-0D0 |
US $32 |
||
|
9
|
9
12340-58BA0-0B0 Bearing set, main (black)カラー:ブラック; G16A; 1997-11-01~2000-03-01 |
12340-58BA0-0B0 |
US $30.40 |
||
|
9
|
9
12340-58B00-0C0
Bearing set,cra
カラー:ナシ; G16A; 1997-11-01~2000-03-01 |
12340-58B00-0C0 |
— | ||
| replacements | |||||
|
9
|
9
12340-57K02-0E0 BEARING SET,CRANK NONカラー:ナシ; G16A; 1997-11-01~2000-03-01 |
12340-57K02-0E0 |
US $32 |
||
|
9
|
9
12340-58BA0-0C0 Bearing set, main (n/paint)カラー:ナシ; G16A; 1997-11-01~2000-03-01 |
12340-58BA0-0C0 |
US $30.40 |
||
|
9
|
9
12340-58B00-0D0 BEARING SET,CRANK YELLOWカラー:イエロー; G16A; 1997-11-01~2000-03-01 |
12340-58B00-0D0 |
from US $31.17 |
||
|
9
|
9
12340-58B00-0E0 BEARING SET,CRANK BLUEカラー:ブルー; G16A; 1997-11-01~2000-03-01 |
12340-58B00-0E0 |
US $32 |
||
|
9
|
9
12300-58810-0AA
ベアリングセット,カラー:レッド/グリーン
カラ-:レツド/グリ-ン; G16A; 1997-11-01~2000-03-01 |
12300-58810-0AA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0CA BEARING SET,CRANK RED/GREENカラ-:レツド/グリ-ン; G16A; 1997-11-01~2000-03-01 |
12300-57820-0CA |
US $31.20 |
||
|
9
|
9
12300-58820-0AA
ベアリングセット,カラー:レッド/グリーン
カラ-:レツド/グリ-ン; G16A; 1997-11-01~2000-03-01 |
12300-58820-0AA |
— | ||
|
9
|
9
12300-58810-0BA
ベアリングセット,カラー:レッド/ブラック
カラ-:レツド/ブラツク; G16A; 1997-11-01~2000-03-01 |
12300-58810-0BA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0DA BEARING SET,CRANK RED/BLACKカラ-:レツド/ブラツク; G16A; 1997-11-01~2000-03-01 |
12300-57820-0DA |
US $29.65 |
||
|
9
|
9
12300-58820-0BA
Bearing set,crankshaft(us)
カラ-:レツド/ブラツク; G16A; 1997-11-01~2000-03-01 |
12300-58820-0BA |
— | ||
|
9
|
9
12300-58810-0CA
ベアリングセット,カラー:レッド
カラ-:レツド; G16A; 1997-11-01~2000-03-01 |
12300-58810-0CA |
— | ||
| replacements | |||||
|
9
|
9
12300-57820-0EA BEARING SET,CRANK REDカラ-:レツド; G16A; 1997-11-01~2000-03-01 |
12300-57820-0EA |
US $23.18 |
||
|
9
|
9
12300-58820-0CA
ベアリングセット,カラー:レッド
カラ-:レツド; G16A; 1997-11-01~2000-03-01 |
12300-58820-0CA |
— | ||
|
9
|
9
12300-58810-0DA BEARING SET,CRANK RED/YELLOWカラ-:レツド/イエロ-; G16A; 1997-11-01~2000-03-01 |
12300-58810-0DA |
US $22.26 |
||
|
9
|
9
12300-58810-0EA BEARING SET,CRANK RED/BLUEカラ-:レツド/ブル-; G16A; 1997-11-01~2000-03-01 |
12300-58810-0EA |
US $22.26 |
||
|
10
|
10
12300-60820-000
Metal set,crank
G16A; 1997-11-01~2000-03-01 |
12300-60820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-78890-000 BEARING SET,CRANK THRUSTG16A; 1997-11-01~2000-03-01 |
12300-78890-000 |
US $27.20 |
||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6)G16A; 1997-11-01~2000-03-01 |
09283-32042-000 |
US $11.10 |
||
|
12
|
12
12610-61G00-000 PULLEY,CRANKSHAFTG16A; 1997-11-01~2000-03-01 |
12610-61G00-000 |
US $409.60 |
||
|
13
|
13
12619-53B01-000 BOLT,CRANK PULLEYG16A; 1997-11-01~2000-03-01 |
12619-53B01-000 |
US $8 |
||
|
14
|
14
09103-06185-000 BOLT(6X20)Bolt (6x20) G16A; 1997-11-01~2000-03-01 |
09103-06185-000 |
from US $1.12 |
||
|
15
|
15
08341-31059-000 KEYKey G16A; 1997-11-01~2000-03-01 |
08341-31059-000 |
from US $1.60 |
||
|
16
|
16
12630-57B01-000 PULLEY,CRANK TIMING BELTG16A; 1997-11-01~2000-03-01 |
12630-57B01-000 |
US $99.20 |
||
|
17
|
17
12620-60A01-000 FLYWHEELG16A:MT; 1997-11-01~2000-03-01 |
12620-60A01-000 |
US $449.92 |
||
|
18
|
18
09103-10200-000
ボルト,10X18.5
G16A:MT; 1997-11-01~2000-03-01 |
09103-10200-000 |
— | ||
| replacements | |||||
|
18
|
18
09100-10275-000 BOLT(10X18.5)G16A:MT; 1997-11-01~2000-03-01 |
09100-10275-000 |
US $1.44 |
||
|
18
|
18
09103-10305-000 BOLT(10X18.5)G16A:MT; 1997-11-01~2000-03-01 |
09103-10305-000 |
US $22.40 |
||
|
19
|
19
12623-60A00-000 BEARING,INPUT SHAFTBearing, input shaft G16A:MT; 1997-11-01~2000-03-01 |
12623-60A00-000 |
US $26.40 |
||
|
20
|
20
09283-68002-000 SEAL,OIL(68X86X8)G16A; 1997-11-01~2000-03-01 |
09283-68002-000 |
US $31.20 |
||
|
21
|
21
11341-82000-000
Housing, oil seal
G16A; 1997-11-01~2000-03-01 |
11341-82000-000 |
— | ||
| replacement | |||||
|
21
|
21
11341-82001-000
HOUSING,OIL SEAL
G16A; 1997-11-01~2000-03-01 |
11341-82001-000 |
— | ||
|
22
|
22
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing G16A; 1997-11-01~2000-03-01 |
11349-60A01-000 |
US $19.20 |
||
|
23
|
23
01550-06203-000
Bolt
G16A; 1997-11-01~2000-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-0620B-000 BOLTBolt, inspection cap G16A; 1997-11-01~2000-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
24
|
24
01550-06253-000
Bolt (6x25)
G16A; 1997-11-01~2000-03-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0625B-000 BOLTBolt, head cover G16A; 1997-11-01~2000-03-01 |
01550-0625B-000 |
from US $0.91 |
||
|
24
|
24
01550-0625A-000 BOLTBolt G16A; 1997-11-01~2000-03-01 |
01550-0625A-000 |
from US $0.96 |
||
|
25
|
25
04211-09109-000 PINKnock pin G16A; 1997-11-01~2000-03-01 |
04211-09109-000 |
from US $0.96 |
||
