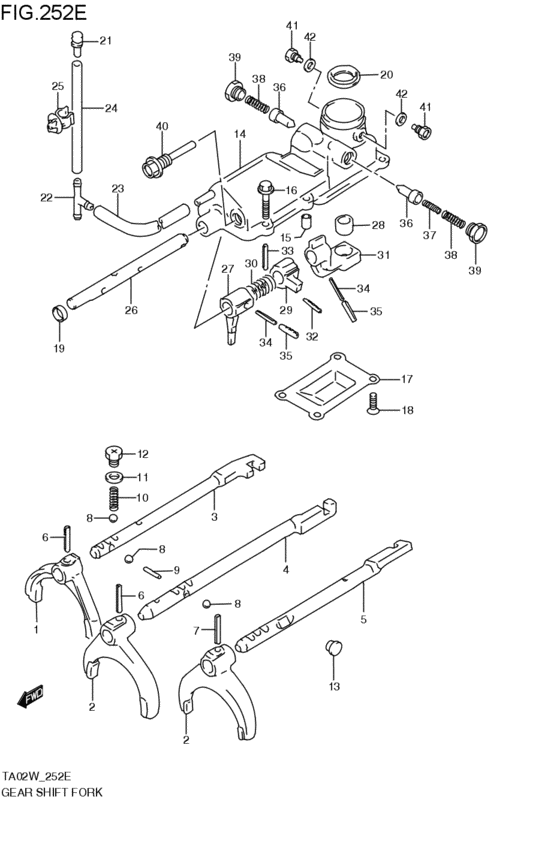

mt - gearlever fork (MT; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-60A02-000 FORK,LOW SPEED GEAR SHFMT; 1997-11-01~2000-03-01 |
25211-60A02-000 |
US $61.46 |
||
|
2
|
2
25221-60A11-000 FORK,HIGH SPEED GR SHFMT; 1997-11-01~2000-03-01 |
25221-60A11-000 |
US $64.77 |
||
|
3
|
3
25410-60A00-000 SHAFT,LOW SPEED GEAR SHIFTMT; 1997-11-01~2000-03-01 |
25410-60A00-000 |
US $39.74 |
||
|
4
|
4
25420-60A10-000 SHAFT,HIGH SPEED GEAR SHIFTMT; 1997-11-01~2000-03-01 |
25420-60A10-000 |
US $45.26 |
||
|
5
|
5
25450-60A00-000 SHAFT,REVERSE GEAR SHIFTMT; 1997-11-01~2000-03-01 |
25450-60A00-000 |
US $41.95 |
||
|
6
|
6
09205-05012-000 PIN,SPRING(5X25)MT; 1997-11-01~2000-03-01 |
09205-05012-000 |
US $1.22 |
||
|
7
|
7
09205-05016-000 PIN,SPRING(5X32)MT; 1997-11-01~2000-03-01 |
09205-05016-000 |
US $1.12 |
||
|
8
|
8
06111-12004-000 BALLMT; 1997-11-01~2000-03-01 |
06111-12004-000 |
from US $1.12 |
||
|
9
|
9
09261-03017-000 ROLLER(3X12.5)MT; 1997-11-01~2000-03-01 |
09261-03017-000 |
from US $0.91 |
||
|
10
|
10
25415-60A00-000 SPRING,GR SHF LOCATINGCHKK; MT; 1997-11-01~2000-03-01 |
25415-60A00-000 |
US $2.36 |
||
|
11
|
11
09168-12011-000 GASKET(12.1X19X1.5)Gasket, water plug (12x19x1.5) MT; 1997-11-01~2000-03-01 |
09168-12011-000 |
from US $2.53 |
||
|
12
|
12
09248-12005-000 PLUG,M12MT; 1997-11-01~2000-03-01 |
09248-12005-000 |
US $1.89 |
||
|
13
|
13
09250-10006-000 PLUG(OD:16)Plug, oil level gauge hole MT; 1997-11-01~2000-03-01 |
09250-10006-000 |
from US $1.67 |
||
|
14
|
14
25120-65D00-000
CASE,GEAR SHF LEVER
MT; 1997-11-01~2000-03-01 |
25120-65D00-000 |
— | ||
|
15
|
15
04211-09149-000 PINDowel pin MT; 1997-11-01~2000-03-01 |
04211-09149-000 |
from US $0.91 |
||
|
16
|
16
01550-08203-000
Bolt
MT; 1997-11-01~2000-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0820B-000 BoltMT; 1997-11-01~2000-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
01550-0820A-000 BOLTBolt, funnel bracket MT; 1997-11-01~2000-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
17
|
17
25129-65D01-000 PLATE,GEAR SHF CASEMT; 1997-11-01~2000-03-01 |
25129-65D01-000 |
US $11 |
||
|
18
|
18
02112-06103-000
Screw 6x10
MT; 1997-11-01~2000-03-01 |
02112-06103-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-0610B-000 SCREWMT; 1997-11-01~2000-03-01 |
02112-0610B-000 |
from US $0.76 |
||
|
19
|
19
09241-14002-000 PLUG(OD:14)MT; 1997-11-01~2000-03-01 |
09241-14002-000 |
US $17.30 |
||
|
20
|
20
28117-60A00-000 SEAT,GEAR SHF LEVER CASEMT; 1997-11-01~2000-03-01 |
28117-60A00-000 |
US $15.04 |
||
|
21
|
21
27991-65D01-000 PLUG,BREATHERMT; 1997-11-01~2000-03-01 |
27991-65D01-000 |
US $1.92 |
||
|
22
|
22
09367-08004-000 3 WAY3 way (m8) MT; 1997-11-01~2000-03-01 |
09367-08004-000 |
from US $2.24 |
||
|
23
|
23
09352-70113-600
HOSE(7X11X600)
L:600>430; MT; 1997-11-01~2000-03-01 |
09352-70113-600 |
— | ||
| replacement | |||||
|
23
|
23
09352-70119-600 Hose(7X11X600)L:600>430; MT; 1997-11-01~2000-03-01 |
09352-70119-600 |
from US $4.64 |
||
|
24
|
24
09352-70113-600
HOSE(7X11X600)
L:600>100; MT; 1997-11-01~2000-03-01 |
09352-70113-600 |
— | ||
| replacement | |||||
|
24
|
24
09352-70119-600 Hose(7X11X600)L:600>100; MT; 1997-11-01~2000-03-01 |
09352-70119-600 |
from US $4.64 |
||
|
25
|
25
09403-11311-000 CLAMPMT; 1997-11-01~2000-03-01 |
09403-11311-000 |
US $1.38 |
||
|
26
|
26
25521-65D00-000 SHAFT,GEAR SHIFTMT; 1997-11-01~2000-03-01 |
25521-65D00-000 |
US $29.26 |
||
|
27
|
27
25541-60A03-000 LEVER,GEAR SHFMT; 1997-11-01~2000-03-01 |
25541-60A03-000 |
US $27.60 |
||
|
28
|
28
25551-60A02-000 BUSH,GEAR CONT LEVERMT; 1997-11-01~2000-03-01 |
25551-60A02-000 |
US $2.40 |
||
|
29
|
29
25271-60A01-000 YOKE,REV GEAR SHIFT LIMMT; 1997-11-01~2000-03-01 |
25271-60A01-000 |
US $23 |
||
|
30
|
30
09448-18019-000 SPRINGMT; 1997-11-01~2000-03-01 |
09448-18019-000 |
US $28.30 |
||
|
31
|
31
25531-65D00-000 ARM,GEAR SHIFTMT; 1997-11-01~2000-03-01 |
25531-65D00-000 |
US $45.63 |
||
|
32
|
32
09205-05012-000 PIN,SPRING(5X25)MT; 1997-11-01~2000-03-01 |
09205-05012-000 |
US $1.22 |
||
|
33
|
33
09205-05015-000 PIN,SPRING(5X20)MT; 1997-11-01~2000-03-01 |
09205-05015-000 |
US $12.90 |
||
|
34
|
34
09205-03037-000 PIN,SPRING(3X25)MT; 1997-11-01~2000-03-01 |
09205-03037-000 |
US $1.12 |
||
|
35
|
35
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) MT; 1997-11-01~2000-03-01 |
09205-06007-000 |
from US $1.60 |
||
|
36
|
36
25341-80701-000 PIN,SELECT GUIDEMT; 1997-11-01~2000-03-01 |
25341-80701-000 |
US $11.19 |
||
|
37
|
37
09440-05037-000 SPRINGMT; 1997-11-01~2000-03-01 |
09440-05037-000 |
US $15.50 |
||
|
38
|
38
09440-08029-000 SPRINGMT; 1997-11-01~2000-03-01 |
09440-08029-000 |
US $17.30 |
||
|
39
|
39
09247-16005-000 PLUGMT; 1997-11-01~2000-03-01 |
09247-16005-000 |
US $5.44 |
||
|
40
|
40
25281-65D00-000 BOLT,REV GEAR SHF LIMMT; 1997-11-01~2000-03-01 |
25281-65D00-000 |
US $4.71 |
||
|
41
|
41
09135-08006-000 BOLT(8X20)MT; 1997-11-01~2000-03-01 |
09135-08006-000 |
US $2.24 |
||
|
42
|
42
09162-08008-000 WASHER,LOCKLock washer MT; 1997-11-01~2000-03-01 |
09162-08008-000 |
from US $0.80 |
||
