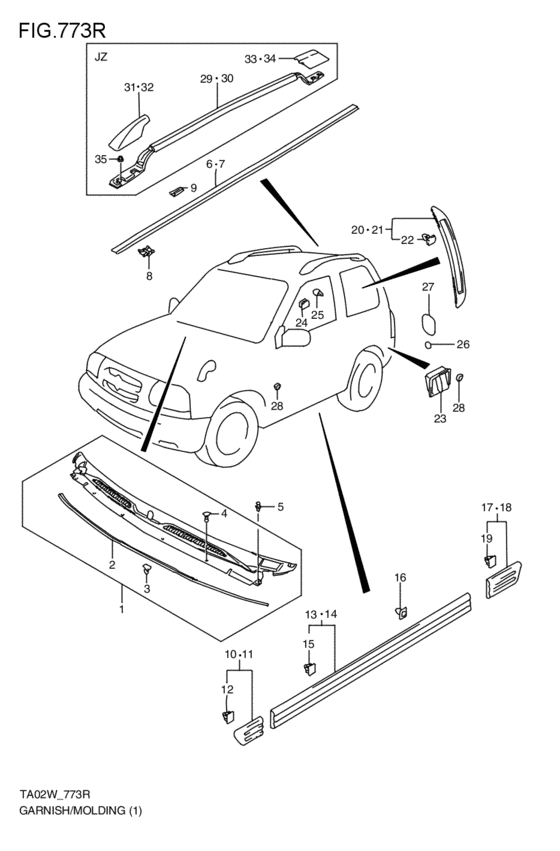

ガ - ニッシュ / モ - ル (3DR; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77310-65D30-5PK
ガーニッシュ,カウリングトップ(ブラック)
ブラック; 3DR; 1997-11-01~2000-03-01 |
77310-65D30-5PK |
— | ||
| replacement | |||||
|
1
|
1
77310-65D40-5PK GARNISH,COWL TOPブラック; 3DR; 1997-11-01~2000-03-01 |
77310-65D40-5PK |
US $132.85 |
||
|
2
|
2
77312-65D00-000 WEATHERSTRIP,COWL TOP3DR; 1997-11-01~2000-03-01 |
77312-65D00-000 |
US $22.82 |
||
|
3
|
3
83943-86000-000 CLIP,BACK DR GARNISH3DR; 1997-11-01~2000-03-01 |
83943-86000-000 |
US $1.60 |
||
|
4
|
4
09409-05309-5ES CLIP(BLACK)ブラック; 3DR; 1998-11-01~2000-03-01 |
09409-05309-5ES |
US $12.90 |
||
|
4
|
4
09409-10304-5ES CLIP(BLACK)ブラック; 3DR; 1997-11-01~1998-11-01 |
09409-10304-5ES |
US $1.28 |
||
|
5
|
5
09409-07308-5PK CLIP(BLACK)ブラック; 3DR; 1997-11-01~2000-03-01 |
09409-07308-5PK |
US $1.76 |
||
|
6
|
6
77541-66D00-5PK MOLDING,ROOF DRIP,Rブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
77541-66D00-5PK |
US $75.44 |
||
|
7
|
7
77641-66D00-5PK MOLDING,ROOF DRIP,Lブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
77641-66D00-5PK |
US $75.44 |
||
|
8
|
8
77543-65D10-000
クリップ,ルーフドリップモールディング
3DR; 1997-11-01~2000-03-01 |
77543-65D10-000 |
— | ||
| replacement | |||||
|
8
|
8
78170-79J10-000 CLIP,ROOF DRIP MOLDING3DR; 1997-11-01~2000-03-01 |
78170-79J10-000 |
US $1.98 |
||
|
10
|
10
77510-65D00-Y29
MOLDING,SIDE FR,R
ブル-; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-Y29 |
— | ||
|
10
|
10
77510-65D00-Z2S
MOLDING,SIDE FR,R
シルバ-; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-Z2S |
— | ||
| replacement | |||||
|
10
|
10
77510-65D00-799 MOLDING,SIDE FR,Rシルバ-; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-799 |
US $45.26 |
||
|
10
|
10
77510-65D00-Z2T
MOLDING,SIDE FR,R
グリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-Z2T |
— | ||
| replacement | |||||
|
10
|
10
77510-65D00-799 MOLDING,SIDE FR,Rグリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-799 |
US $45.26 |
||
|
10
|
10
77510-65D00-Z2Z
MOLDING,SIDE FR,R
ゴ-ルド; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-Z2Z |
— | ||
|
10
|
10
77510-65D00-26U
MOLDING,SIDE FR,R
ホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-26U |
— | ||
| replacement | |||||
|
10
|
10
77510-65D00-799 MOLDING,SIDE FR,Rホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77510-65D00-799 |
US $45.26 |
||
|
11
|
11
77610-65D00-Z2T
MOLDING,SIDE FR,L
グリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77610-65D00-Z2T |
— | ||
| replacement | |||||
|
11
|
11
77610-65D00-799
MOLDING,SIDE FR,L(PRIMARY)
グリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77610-65D00-799 |
— | ||
|
11
|
11
77610-65D00-Z2Z
MOLDING,SIDE FR,L
ゴ-ルド; 3DR:JZ; 1997-11-01~2000-03-01 |
77610-65D00-Z2Z |
— | ||
|
11
|
11
77610-65D00-26U
MOLDING,SIDE FR,L
ホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77610-65D00-26U |
— | ||
| replacement | |||||
|
11
|
11
77610-65D00-799
MOLDING,SIDE FR,L(PRIMARY)
ホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77610-65D00-799 |
— | ||
|
11
|
11
77610-65D00-Y29
MOLDING,SIDE FR,L
ブル-; 3DR:JZ; 1997-11-01~2000-03-01 |
77610-65D00-Y29 |
— | ||
|
11
|
11
77610-65D00-Z2S MOLDING,SIDE FR,Lシルバ-; 3DR:JZ; 1997-11-01~2000-03-01 |
77610-65D00-Z2S |
US $42.69 |
||
|
12
|
12
09409-10309-000 CLIP3DR; 1997-11-01~2000-03-01 |
09409-10309-000 |
US $1.22 |
||
|
13
|
13
77520-66D00-Y29
MOLDING,SIDE CTR,R
ブル-; 3DR:JZ; 1997-11-01~2000-03-01 |
77520-66D00-Y29 |
— | ||
|
13
|
13
77520-66D00-Z2S MOLDING,SIDE CTR,Rシルバ-; 3DR:JZ; 1997-11-01~2000-03-01 |
77520-66D00-Z2S |
US $135.42 |
||
|
13
|
13
77520-66D00-Z2T
MOLDING,SIDE CTR,R
グリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77520-66D00-Z2T |
— | ||
|
13
|
13
77520-66D00-Z2Z
MOLDING,SIDE CTR,R
ゴ-ルド; 3DR:JZ; 1997-11-01~2000-03-01 |
77520-66D00-Z2Z |
— | ||
|
13
|
13
77520-66D00-26U
MOLDING,SIDE CTR,R
ホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77520-66D00-26U |
— | ||
|
14
|
14
77620-66D00-Y29
Molding comp,side center,l
ブル-; 3DR:JZ; 1997-11-01~2000-03-01 |
77620-66D00-Y29 |
— | ||
|
14
|
14
77620-66D00-Z2S
MOLDING,SIDE CTR,L
シルバ-; 3DR:JZ; 1997-11-01~2000-03-01 |
77620-66D00-Z2S |
— | ||
|
14
|
14
77620-66D00-Z2T
MOLDING,SIDE CTR,L
グリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77620-66D00-Z2T |
— | ||
|
14
|
14
77620-66D00-Z2Z
Molding comp,side center,l
ゴ-ルド; 3DR:JZ; 1997-11-01~2000-03-01 |
77620-66D00-Z2Z |
— | ||
|
14
|
14
77620-66D00-26U
MOLDING,SIDE CTR,L
ホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77620-66D00-26U |
— | ||
|
15
|
15
09409-10309-000 CLIP3DR; 1997-11-01~2000-03-01 |
09409-10309-000 |
US $1.22 |
||
|
16
|
16
09410-00076-000 CLIP3DR; 1997-11-01~2000-03-01 |
09410-00076-000 |
US $2.24 |
||
|
17
|
17
77530-66D00-Y29
MOLDING,SIDE RR,R
ブル-; 3DR:JZ; 1997-11-01~2000-03-01 |
77530-66D00-Y29 |
— | ||
|
17
|
17
77530-66D00-Z2S
MOLDING,SIDE RR,R
シルバ-; 3DR:JZ; 1997-11-01~2000-03-01 |
77530-66D00-Z2S |
— | ||
|
17
|
17
77530-66D00-Z2T
Molding comp,side rear,r
グリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77530-66D00-Z2T |
— | ||
|
17
|
17
77530-66D00-Z2Z
MOLDING,SIDE RR,R
ゴ-ルド; 3DR:JZ; 1997-11-01~2000-03-01 |
77530-66D00-Z2Z |
— | ||
|
17
|
17
77530-66D00-26U
MOLDING,SIDE RR,R
ホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77530-66D00-26U |
— | ||
|
18
|
18
77630-66D00-Y29
Molding comp,side rear,l
ブル-; 3DR:JZ; 1997-11-01~2000-03-01 |
77630-66D00-Y29 |
— | ||
|
18
|
18
77630-66D00-Z2S
Molding comp,side rear,l
シルバ-; 3DR:JZ; 1997-11-01~2000-03-01 |
77630-66D00-Z2S |
— | ||
|
18
|
18
77630-66D00-Z2T
MOLDING,SIDE RR,L
グリ-ン; 3DR:JZ; 1997-11-01~2000-03-01 |
77630-66D00-Z2T |
— | ||
|
18
|
18
77630-66D00-Z2Z
Molding comp,side rear,l
ゴ-ルド; 3DR:JZ; 1997-11-01~2000-03-01 |
77630-66D00-Z2Z |
— | ||
|
18
|
18
77630-66D00-26U
Molding comp,side rear,l
ホワイト; 3DR:JZ; 1997-11-01~2000-03-01 |
77630-66D00-26U |
— | ||
|
19
|
19
09409-10309-000 CLIP3DR; 1997-11-01~2000-03-01 |
09409-10309-000 |
US $1.22 |
||
|
20
|
20
77110-66D00-0CE GARNISH,AIR OUTLET,Rブラック; 3DR; 1997-11-01~2000-03-01 |
77110-66D00-0CE |
US $93.84 |
||
|
21
|
21
77120-66D00-0CE GARNISH,AIR OUTLET,Lブラック; 3DR; 1997-11-01~2000-03-01 |
77120-66D00-0CE |
US $153.52 |
||
|
22
|
22
83942-61A01-000
クリップ,ガーニッシュ
3DR; 1997-11-01~2000-03-01 |
83942-61A01-000 |
— | ||
| replacement | |||||
|
22
|
22
83942-65D00-000 CLIP3DR; 1997-11-01~2000-03-01 |
83942-65D00-000 |
US $1.52 |
||
|
23
|
23
77330-65D00-000 OUTLET,VENTILATOR3DR; 1997-11-01~2000-03-01 |
77330-65D00-000 |
US $37.60 |
||
|
24
|
24
77117-60B00-000 STOPPER,FUEL LID3DR; 1997-11-01~2000-03-01 |
77117-60B00-000 |
US $1.76 |
||
|
25
|
25
77192-50E00-000 CUSHION3DR; 1997-11-01~2000-03-01 |
77192-50E00-000 |
US $2.56 |
||
|
26
|
26
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 3DR; 1997-11-01~2000-03-01 |
84761-50X50-000 |
US $6.72 |
||
|
27
|
27
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 3DR; 1997-11-01~2000-03-01 |
84761-50X50-000 |
US $6.72 |
||
|
28
|
28
09250-16013-000 CAP(OD:25)3DR; 1997-11-01~2000-03-01 |
09250-16013-000 |
US $11.80 |
||
|
29
|
29
78210-66D02-1YW RAIL,ROOF,Rブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
78210-66D02-1YW |
US $422.40 |
||
|
30
|
30
78220-66D02-1YW RAIL,ROOF,Lブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
78220-66D02-1YW |
US $422.40 |
||
|
31
|
31
78216-65D01-1YW CAP,ROOF RAIL FR,Rブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
78216-65D01-1YW |
US $63.20 |
||
|
32
|
32
78226-65D01-1YW CAP,ROOF RAIL FR,Lブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
78226-65D01-1YW |
US $51.20 |
||
|
33
|
33
78217-65D01-1YW CAP,ROOF RAIL RR,RBlack ブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
78217-65D01-1YW |
US $63.20 |
||
|
34
|
34
78227-65D01-1YW CAP,ROOF RAIL RR,LBlack ブラック; 3DR:JZ; 1997-11-01~2000-03-01 |
78227-65D01-1YW |
US $51.20 |
||
|
35
|
35
08361-25063-000
Nut
3DR:JZ; 1997-11-01~2000-03-01 |
08361-25063-000 |
— | ||
| replacement | |||||
|
35
|
35
08361-2506A-000 NUT3DR:JZ; 1997-11-01~2000-03-01 |
08361-2506A-000 |
US $0.80 |
||
