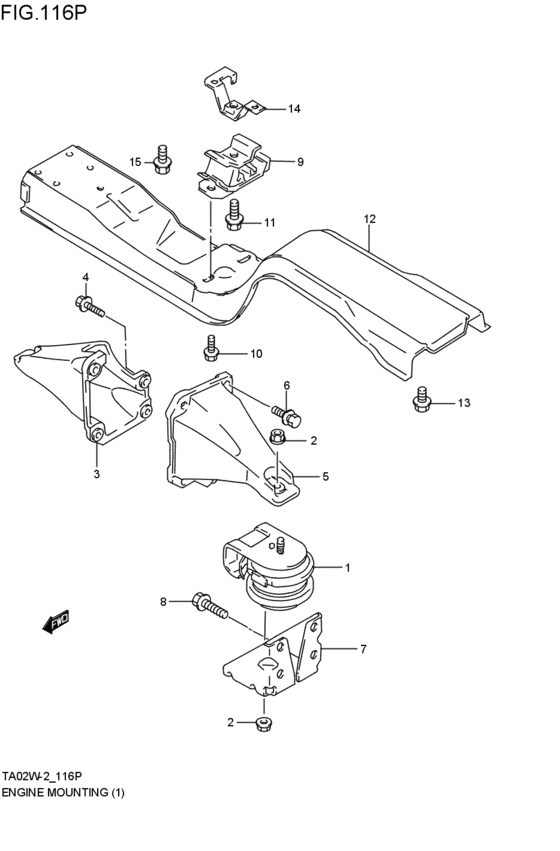

engine mounting (G16A:MT; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-65D00-000 MOUNTING,ENG FRG16A:MT; 2000-04-01~2002-09-01 |
11610-65D00-000 |
from US $155.48 |
||
|
2
|
2
08316-10103-000
Nut
G16A:MT; 2000-04-01~2002-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1010B-000 NUTG16A:MT; 2000-04-01~2002-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
3
|
3
11641-66D00-000 BRACKET,ENG FR MTG,RG16A:MT; 2000-04-01~2002-09-01 |
11641-66D00-000 |
US $116.29 |
||
|
4
|
4
01580-10503-000
ボルト
G16A:MT; 2000-04-01~2002-09-01 |
01580-10503-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-1050A-000 BoltG16A:MT; 2000-04-01~2002-09-01 |
01580-1050A-000 |
US $21.70 |
||
|
5
|
5
11651-66D00-000 BRACKET,ENG FR MTG,LG16A:MT; 2000-04-01~2002-09-01 |
11651-66D00-000 |
US $93.84 |
||
|
6
|
6
01560-10303-000
ボルト
G16A:MT; 2000-04-01~2002-09-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
6
|
6
01560-1030A-000 BoltG16A:MT; 2000-04-01~2002-09-01 |
01560-1030A-000 |
US $1.12 |
||
|
7
|
7
11661-65D00-000 BRACKET,ENG FR MTG FRAME SIDEG16A:MT; 2000-04-01~2002-09-01 |
11661-65D00-000 |
US $67.20 |
||
|
8
|
8
09112-12001-000 BOLT(12X35)G16A:MT; 2000-04-01~2002-09-01 |
09112-12001-000 |
US $22.40 |
||
|
9
|
9
11710-60A01-000 MOUNTING,ENG RRG16A:MT; 2000-04-01~2002-09-01 |
11710-60A01-000 |
US $217.60 |
||
|
10
|
10
01560-10163-000
ボルト
G16A:MT; 2000-04-01~2002-09-01 |
01560-10163-000 |
— | ||
| replacement | |||||
|
10
|
10
01560-1016A-000 BoltG16A:MT; 2000-04-01~2002-09-01 |
01560-1016A-000 |
US $0.96 |
||
|
11
|
11
01560-10203-000
Bolt
G16A:MT; 2000-04-01~2002-09-01 |
01560-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01560-1020A-000 BoltG16A:MT; 2000-04-01~2002-09-01 |
01560-1020A-000 |
US $17.30 |
||
|
12
|
12
11730-65D02-000
メンバ,エンジンリヤマウンチング
G16A:MT; 2000-04-01~2002-09-01 |
11730-65D02-000 |
— | ||
| replacement | |||||
|
12
|
12
11730-68D02-000 MEMBER,ENG RRG16A:MT; 2000-04-01~2002-09-01 |
11730-68D02-000 |
US $215.28 |
||
|
13
|
13
09112-10006-000 BOLT(10X25)G16A:MT; 2000-04-01~2002-09-01 |
09112-10006-000 |
US $1.38 |
||
|
14
|
14
11741-77EA0-000
BRACKET,ENG RR MTG
G16A:MT; 2000-04-01~2002-09-01 |
11741-77EA0-000 |
— | ||
|
15
|
15
01560-10253-000
ボルト
G16A:MT; 2000-04-01~2002-09-01 |
01560-10253-000 |
— | ||
| replacement | |||||
|
15
|
15
01560-1025A-000 BoltG16A:MT; 2000-04-01~2002-09-01 |
01560-1025A-000 |
US $1.07 |
||
