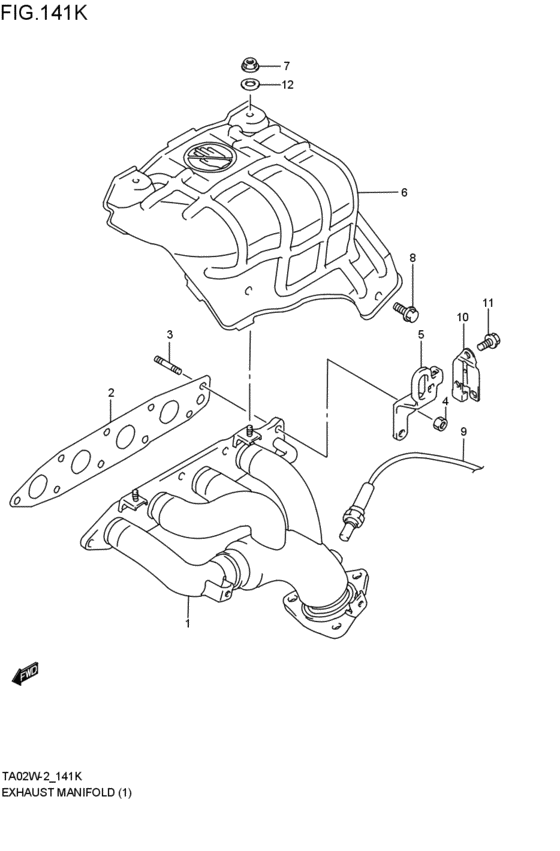

exhaust manifold (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-66D00-000 MANIFOLD,EXHG16A; 2000-04-01~2002-09-01 |
14111-66D00-000 |
US $411.84 |
||
|
2
|
2
14140-52G00-000 Gasket, exhaust manifoldG16A; 2000-04-01~2002-09-01 |
14140-52G00-000 |
from US $14.04 |
||
|
3
|
3
01421-08253-000
Stud bolt, no.2
G16A; 2000-04-01~2002-09-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0825A-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01421-0825A-000 |
from US $1.12 |
||
|
4
|
4
08310-00083-000
Nut
G16A; 2000-04-01~2002-09-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUTG16A; 2000-04-01~2002-09-01 |
08310-0008B-000 |
from US $0.80 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper G16A; 2000-04-01~2002-09-01 |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
11851-66D01-000 H00K,ENGINEG16A; 2000-04-01~2002-09-01 |
11851-66D01-000 |
US $8.50 |
||
|
6
|
6
14120-66D01-000
カバー,エキゾーストマニホールド
G16A; 2000-04-01~2000-05-01 |
14120-66D01-000 |
— | ||
| replacements | |||||
|
6
|
6
14120-66D02-000
COVER,EXHAUST MANIFOLD
G16A; 2000-04-01~2000-05-01 |
14120-66D02-000 |
— | ||
|
6
|
6
09116-06181-000 BOLT(6X13)G16A; 2000-04-01~2000-05-01 |
09116-06181-000 |
US $12.90 |
||
|
6
|
6
09160-06141-000 WASHER(6.5X20X1)G16A; 2000-04-01~2000-05-01 |
09160-06141-000 |
from US $1.82 |
||
|
6
|
6
14120-66D02-000
COVER,EXHAUST MANIFOLD
G16A; 2000-05-01~2000-10-01 |
14120-66D02-000 |
— | ||
|
7
|
7
08316-10063-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
09116-06181-000 BOLT(6X13)G16A; 2000-05-01~2000-10-01 |
09116-06181-000 |
US $12.90 |
||
|
8
|
8
09103-06168-000 BOLT(6X10)G16A; 2000-04-01~2000-05-01 |
09103-06168-000 |
from US $1.01 |
||
|
9
|
9
18213-65D30-000
センサ,オキシジェン
G16A; 2000-04-01~2002-09-01 |
18213-65D30-000 |
— | ||
| replacement | |||||
|
9
|
9
18213-65D32-000 SENSOR,OXYGENG16A; 2000-04-01~2002-09-01 |
18213-65D32-000 |
US $320.72 |
||
|
10
|
10
18214-65D20-000
ブラケット,オキシジェンセンサ
G16A; 2000-04-01~2002-09-01 |
18214-65D20-000 |
— | ||
| replacement | |||||
|
10
|
10
18214-65D21-000 BRACKET,OXYGEN SENSORG16A; 2000-04-01~2002-09-01 |
18214-65D21-000 |
US $3.79 |
||
|
11
|
11
02162-06103-000
Bolt
G16A; 2000-04-01~2002-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
11
|
11
02162-0610A-000 SCREWG16A; 2000-04-01~2002-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
12
|
12
09160-06141-000 WASHER(6.5X20X1)G16A; 2000-05-01~2000-10-01 |
09160-06141-000 |
from US $1.82 |
||
