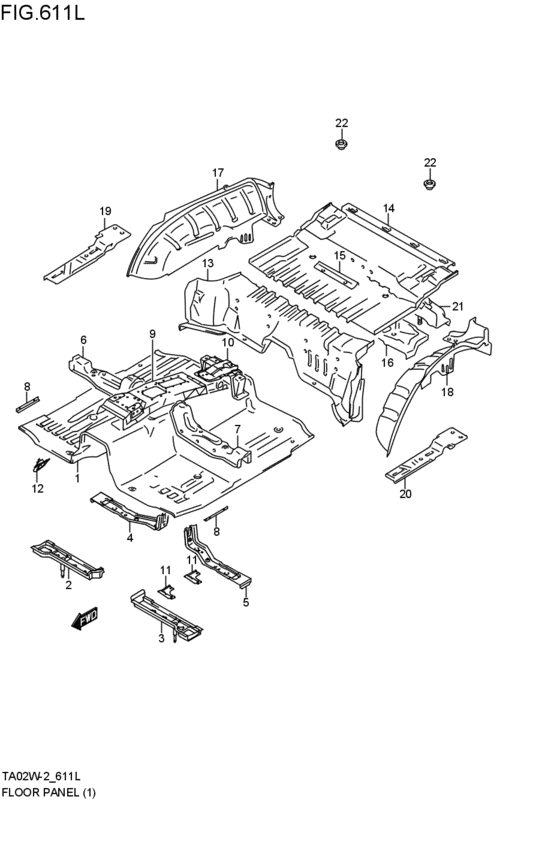

floor panel (3DR; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61411-65DV0-000
PANEL,MAIN FLOOR
3DR; 2000-04-01~2002-09-01 |
61411-65DV0-000 |
— | ||
|
2
|
2
61420-65D00-000 MEMBER,FR FL NO.1,R3DR; 2000-04-01~2002-09-01 |
61420-65D00-000 |
US $96 |
||
|
3
|
3
61520-65D00-000
メンバ,フロントフロアNO.1,レフト
3DR; 2000-04-01~2002-09-01 |
61520-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
61520-65D01-000 MEMBER,FR FL N0.1,L3DR; 2000-04-01~2002-09-01 |
61520-65D01-000 |
US $104.80 |
||
|
4
|
4
61430-65D02-000
メンバ,フロントフロアNO.2,ライト
3DR; 2000-04-01~2002-09-01 |
61430-65D02-000 |
— | ||
| replacement | |||||
|
4
|
4
61430-52D00-000
MEMBER,FR FL NO.2,R
3DR; 2000-04-01~2002-09-01 |
61430-52D00-000 |
— | ||
|
5
|
5
61530-65D01-000
MEMBER,FR FL NO.2,L
3DR; 2000-04-01~2002-09-01 |
61530-65D01-000 |
— | ||
|
6
|
6
61441-65D10-000
メンバ,フロントシート,ライト
3DR; 2000-04-01~2002-09-01 |
61441-65D10-000 |
— | ||
| replacement | |||||
|
6
|
6
61441-65D20-000
MEMBER,FR SEAT,R
3DR; 2000-04-01~2002-09-01 |
61441-65D20-000 |
— | ||
|
7
|
7
61541-65D10-000
メンバ,フロントシート,レフト
3DR; 2000-04-01~2002-09-01 |
61541-65D10-000 |
— | ||
| replacement | |||||
|
7
|
7
61541-65D20-000
MEMBER,FR SEAT,L
3DR; 2000-04-01~2002-09-01 |
61541-65D20-000 |
— | ||
|
8
|
8
61461-65D00-000 REINFORCEMENT,FR FL SIDE3DR; 2000-04-01~2002-09-01 |
61461-65D00-000 |
US $4.56 |
||
|
9
|
9
61610-65D00-000
リンフォースメント,フロアトンネル
3DR; 2000-04-01~2002-09-01 |
61610-65D00-000 |
— | ||
| replacement | |||||
|
9
|
9
61610-65D30-000 REINFORCEMENT,FL TUNNEL3DR; 2000-04-01~2002-09-01 |
61610-65D30-000 |
US $86.11 |
||
|
10
|
10
61630-65D10-000
Bracket,parking brake
3DR; 2000-04-01~2002-09-01 |
61630-65D10-000 |
— | ||
|
11
|
11
61642-60A01-000
Bracket,heat protector
3DR; 2000-04-01~2002-09-01 |
61642-60A01-000 |
— | ||
|
12
|
12
61651-65D10-000
BRACKET,FOOTREST
3DR; 2000-04-01~2002-09-01 |
61651-65D10-000 |
— | ||
|
13
|
13
61700-66D01-000
パネルアッシ,センタフロア
3DR; 2000-04-01~2001-12-01 |
61700-66D01-000 |
— | ||
| replacements | |||||
|
13
|
13
61700-66D02-000 PANEL ASSY,CENTER FLOOR3DR; 2000-04-01~2001-12-01 |
61700-66D02-000 |
US $535.04 |
||
|
13
|
13
65971-77E10-000 CAP,OD:303DR; 2000-04-01~2001-12-01 |
65971-77E10-000 |
US $2.24 |
||
|
13
|
13
61700-66D02-000 PANEL ASSY,CENTER FLOOR3DR; 2002-02-01~2002-09-01 |
61700-66D02-000 |
US $535.04 |
||
|
14
|
14
62111-66D11-000
パネル,リヤフロア
3DR; 2000-04-01~2002-09-01 |
62111-66D11-000 |
— | ||
| replacements | |||||
|
14
|
14
62111-66D30-000 PANEL,REAR FLOOR3DR; 2000-04-01~2002-09-01 |
62111-66D30-000 |
US $298.08 |
||
|
14
|
14
09409-09305-000 CLIP3DR; 2000-04-01~2002-09-01 |
09409-09305-000 |
US $18.40 |
||
|
15
|
15
62112-65D00-000 BRACKET,RR SEAT LOCK3DR; 2000-04-01~2002-09-01 |
62112-65D00-000 |
US $6.99 |
||
|
16
|
16
62120-65D30-000
メンバ,リヤフロア,N0.1
3DR; 2000-04-01~2002-05-01 |
62120-65D30-000 |
— | ||
| replacement | |||||
|
16
|
16
62120-65D31-000 MEMBER,RR FL NO.13DR; 2000-04-01~2002-05-01 |
62120-65D31-000 |
US $167.44 |
||
|
16
|
16
62120-65D31-000 MEMBER,RR FL NO.13DR; 2002-06-01~2002-09-01 |
62120-65D31-000 |
US $167.44 |
||
|
17
|
17
62210-65D00-000 PANEL,RR WHEEL HSG INR,R3DR; 2000-04-01~2002-09-01 |
62210-65D00-000 |
US $182.16 |
||
|
18
|
18
62310-65D00-000 PANEL,RR WHEEL HSG INR,L3DR; 2000-04-01~2002-09-01 |
62310-65D00-000 |
US $182.16 |
||
|
19
|
19
62131-66D00-000
REINF,RR SEAT BELT SIDE,R
3DR; 2000-04-01~2002-09-01 |
62131-66D00-000 |
— | ||
|
20
|
20
62132-66D00-000
REINF,RR SEAT BELT SIDE,L
3DR; 2000-04-01~2002-09-01 |
62132-66D00-000 |
— | ||
|
21
|
21
62510-65D11-000
MEMBER,RR FL TAIL
3DR; 2000-04-01~2002-09-01 |
62510-65D11-000 |
— | ||
|
22
|
22
65971-77E00-000
Cap, rear floor drain
3DR; 2000-04-01~2002-09-01 |
65971-77E00-000 |
— | ||
| replacement | |||||
|
22
|
22
65971-77E10-000 CAP,OD:303DR; 2000-04-01~2002-09-01 |
65971-77E10-000 |
US $2.24 |
||
