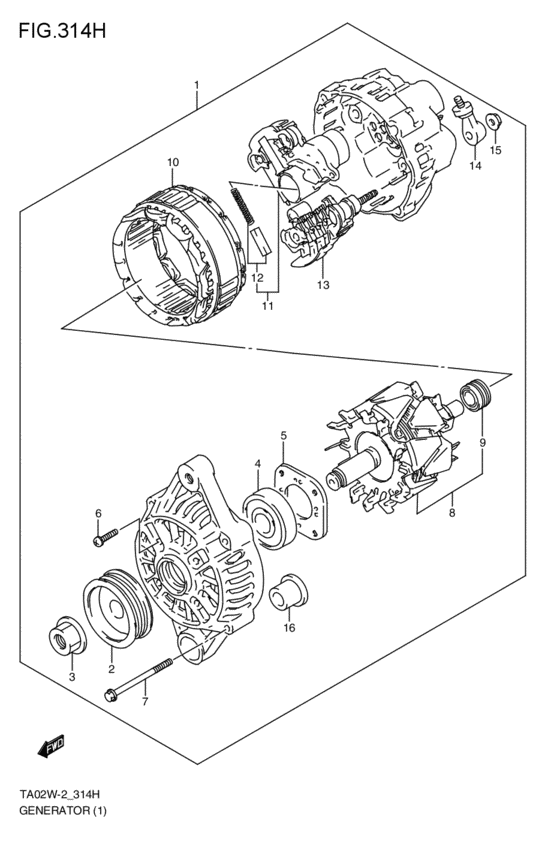

generator (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-66D02-000
Generator assy
G16A; 2000-04-01~2002-09-01 |
31400-66D02-000 |
— | ||
| replacement | |||||
|
1
|
1
31400-66D04-000 GENERATOR ASSYG16A; 2000-04-01~2002-09-01 |
31400-66D04-000 |
US $753.28 |
||
|
2
|
2
31171-60A21-000 PULLEYG16A; 2000-04-01~2002-09-01 |
31171-60A21-000 |
US $76.54 |
||
|
3
|
3
31775-50F20-000 NUTG16A; 2000-04-01~2002-09-01 |
31775-50F20-000 |
US $2.72 |
||
|
4
|
4
31582-50F21-000
Bearing
G16A; 2000-04-01~2002-09-01 |
31582-50F21-000 |
— | ||
| replacement | |||||
|
4
|
4
31582-50F40-000 BEARING,FRG16A; 2000-04-01~2002-09-01 |
31582-50F40-000 |
US $28.80 |
||
|
5
|
5
31585-83E00-000 RETAINER,BEARINGG16A; 2000-04-01~2002-09-01 |
31585-83E00-000 |
US $6.66 |
||
|
6
|
6
31586-86520-000 SCREW SETG16A; 2000-04-01~2002-09-01 |
31586-86520-000 |
US $5.30 |
||
|
7
|
7
31651-86520-000 SCREW SETG16A; 2000-04-01~2002-09-01 |
31651-86520-000 |
US $5.78 |
||
|
8
|
8
31710-83E00-000
ROTOR ASSY
G16A; 2000-04-01~2002-09-01 |
31710-83E00-000 |
— | ||
| replacement | |||||
|
8
|
8
31710-83E10-000 ROTOR ASSYG16A; 2000-04-01~2002-09-01 |
31710-83E10-000 |
US $482.24 |
||
|
9
|
9
31612-60A10-000
Bearing,rr
G16A; 2000-04-01~2002-09-01 |
31612-60A10-000 |
— | ||
| replacement | |||||
|
9
|
9
31612-60A11-000 BEARING,REARG16A; 2000-04-01~2002-09-01 |
31612-60A11-000 |
US $24 |
||
|
10
|
10
31410-66D00-000 STATOR ASSYG16A; 2000-04-01~2002-09-01 |
31410-66D00-000 |
US $415.36 |
||
|
11
|
11
32500-66D00-000
REGULATOR ASSY
G16A; 2000-04-01~2002-09-01 |
32500-66D00-000 |
— | ||
|
12
|
12
31631-60F30-000 BRUSH SETG16A; 2000-04-01~2002-09-01 |
31631-60F30-000 |
US $13.28 |
||
|
13
|
13
31621-66D00-000 Rectifier AssyG16A; 2000-04-01~2002-09-01 |
31621-66D00-000 |
US $252.08 |
||
|
14
|
14
31514-73G10-000 TERMINAL SETG16A; 2000-04-01~2002-09-01 |
31514-73G10-000 |
US $19.69 |
||
|
15
|
15
08316-10063-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1006B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
16
|
16
31616-83E00-000 BUSHG16A; 2000-04-01~2002-09-01 |
31616-83E00-000 |
US $4.97 |
||
