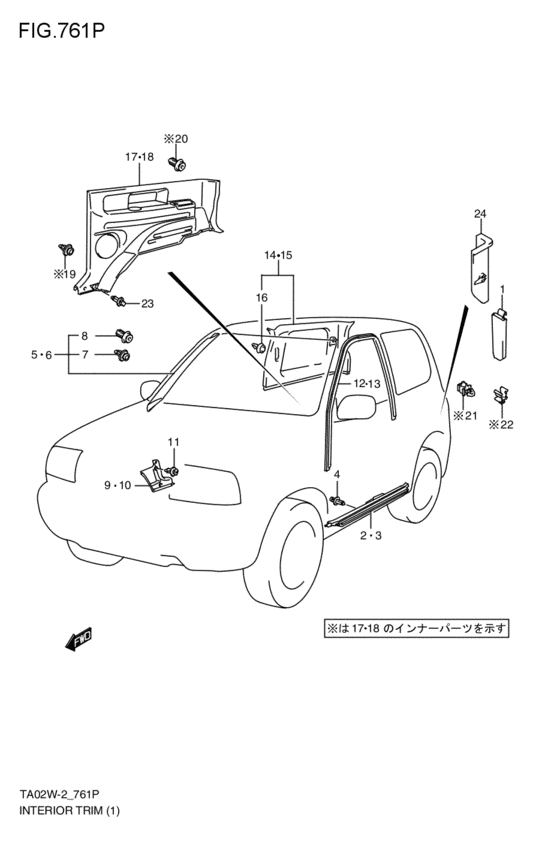

i trim interior (3DR; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76331-65D00-000 CASE,JACK HANDLE3DR; 2000-04-01~2002-09-01 |
76331-65D00-000 |
US $26.86 |
||
|
2
|
2
76131-66D00-T01 SCUFF,SIDE SILL,Rグレ-; 3DR; 2000-04-01~2002-09-01 |
76131-66D00-T01 |
US $61.57 |
||
|
3
|
3
76141-66D00-T01 SCUFF,SIDE SILL,Lグレ-; 3DR; 2000-04-01~2002-09-01 |
76141-66D00-T01 |
US $61.57 |
||
|
4
|
4
09409-06314-T01 CLIP(GRAY)グレ-; 3DR; 2000-04-01~2002-09-01 |
09409-06314-T01 |
from US $1.52 |
||
|
5
|
5
76240-65D21-6GS TRIM,FR PILLAR UPPER,Rグレ-; 3DR; 2000-04-01~2002-09-01 |
76240-65D21-6GS |
US $76.54 |
||
|
6
|
6
76250-65D21-6GS TRIM,FR PILLAR UPPER,Lグレ-; 3DR; 2000-04-01~2002-09-01 |
76250-65D21-6GS |
US $76.54 |
||
|
7
|
7
09409-08320-000 CLIP3DR; 2000-04-01~2002-09-01 |
09409-08320-000 |
from US $1.15 |
||
|
8
|
8
09409-08322-000 CLIP3DR; 2000-04-01~2002-09-01 |
09409-08322-000 |
from US $1.15 |
||
|
9
|
9
76111-65D00-T01 TRIM,FR PILLAR LOWER,Rグレ-; 3DR; 2000-04-01~2002-09-01 |
76111-65D00-T01 |
US $29.81 |
||
|
10
|
10
76121-65D00-T01
TRIM,FR PILLAR LOWER,L
グレ-; 3DR; 2000-04-01~2002-09-01 |
76121-65D00-T01 |
— | ||
|
11
|
11
09409-06322-T01 CLIP(GRAY)グレ-; 3DR; 2000-04-01~2002-09-01 |
09409-06322-T01 |
US $2.74 |
||
|
12
|
12
76311-66D00-5PK TRIM,FR DOOR OPENING,Rブラック; 3DR; 2000-04-01~2002-09-01 |
76311-66D00-5PK |
US $72.21 |
||
|
13
|
13
76312-66D00-5PK TRIM,FR DOOR OPENING,Lブラック; 3DR; 2000-04-01~2002-09-01 |
76312-66D00-5PK |
US $72.21 |
||
|
14
|
14
76280-66D00-6GS TRIM,RR QTR UPPER,Rグレ-; 3DR; 2000-04-01~2002-09-01 |
76280-66D00-6GS |
US $117.39 |
||
|
15
|
15
76290-66D00-6GS TRIM,RR QTR UPPER,Lグレ-; 3DR; 2000-04-01~2002-09-01 |
76290-66D00-6GS |
US $117.39 |
||
|
16
|
16
09409-08320-000 CLIP3DR; 2000-04-01~2002-09-01 |
09409-08320-000 |
from US $1.15 |
||
|
17
|
17
76210-66D00-T01 TRIM,RR QTR LOWER,Rグレ-; 3DR; 2000-04-01~2002-09-01 |
76210-66D00-T01 |
US $237.36 |
||
|
18
|
18
76220-66D01-T01 TRIM,RR QTR LOWER,Lグレ-; 3DR; 2000-04-01~2002-09-01 |
76220-66D01-T01 |
US $237.36 |
||
|
19
|
19
09409-08320-000 CLIP3DR; 2000-04-01~2002-09-01 |
09409-08320-000 |
from US $1.15 |
||
|
20
|
20
09409-08322-000 CLIP3DR; 2000-04-01~2002-09-01 |
09409-08322-000 |
from US $1.15 |
||
|
21
|
21
09403-08326-000 CLAMPレフト; 3DR; 2000-04-01~2002-09-01 |
09403-08326-000 |
US $16.20 |
||
|
22
|
22
09403-13307-000 CLAMPレフト; 3DR; 2000-04-01~2002-09-01 |
09403-13307-000 |
US $21.30 |
||
|
23
|
23
09409-06314-T01 CLIP(GRAY)グレ-; 3DR; 2000-04-01~2002-09-01 |
09409-06314-T01 |
from US $1.52 |
||
|
24
|
24
76230-65D10-T01 LID,RR QTR TRIMグレ-; 3DR; 2000-04-01~2002-09-01 |
76230-65D10-T01 |
US $40.48 |
