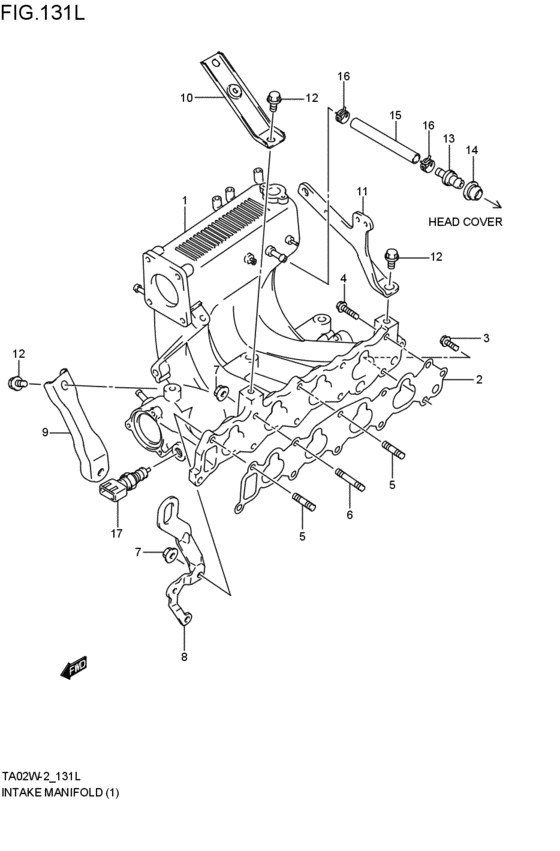

intake manifold (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-66D11-000 MANIFOLD,INTKG16A; 2000-04-01~2002-09-01 |
13110-66D11-000 |
US $538.56 |
||
|
2
|
2
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold G16A; 2000-04-01~2002-09-01 |
13119-57B00-000 |
US $15.52 |
||
|
3
|
3
01550-08253-000
Bolt, rear
G16A; 2000-04-01~2002-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825B-000 |
from US $0.96 |
||
|
3
|
3
01550-0825A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01550-08353-000
Bolt, rear
G16A; 2000-04-01~2002-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0835B-000 |
from US $1.12 |
||
|
4
|
4
01550-0835A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
G16A; 2000-04-01~2002-09-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
01421-08353-000
Bolt, stud
G16A; 2000-04-01~2002-09-01 |
01421-08353-000 |
— | ||
| replacement | |||||
|
6
|
6
01421-0835A-000 BOLT,STUDStud bolt (8x35) G16A; 2000-04-01~2002-09-01 |
01421-0835A-000 |
from US $1.44 |
||
|
7
|
7
08316-10083-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1008B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
8
|
8
11852-66D02-000 HOOK,ENGINE NO.2G16A; 2000-04-01~2002-09-01 |
11852-66D02-000 |
US $8.91 |
||
|
9
|
9
13161-66D00-000 STIFFENER,INTK MANF RRG16A; 2000-04-01~2002-09-01 |
13161-66D00-000 |
US $11.59 |
||
|
10
|
10
13166-66D00-000 STIFFENER,INTK MANF FRG16A; 2000-04-01~2002-09-01 |
13166-66D00-000 |
US $5.59 |
||
|
11
|
11
13627-58B00-000 STIFFENER,INTK MANF NO.2G16A; 2000-04-01~2002-09-01 |
13627-58B00-000 |
US $32.38 |
||
|
12
|
12
01550-10203-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1020A-000 BOLTBolt, bal sprocket G16A; 2000-04-01~2002-09-01 |
01550-1020A-000 |
from US $0.96 |
||
|
13
|
13
18118-58B00-000 VALVE,PCVG16A; 2000-04-01~2002-09-01 |
18118-58B00-000 |
US $26.40 |
||
|
14
|
14
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve G16A; 2000-04-01~2002-09-01 |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
14
|
14
11198-98L00-000 Seal,pcv ValveG16A; 2000-04-01~2002-09-01 |
11198-98L00-000 |
US $2.74 |
||
|
15
|
15
09354-80153-600 HOSE(8X15X600)L:600>120; G16A; 2000-04-01~2002-09-01 |
09354-80153-600 |
US $28.80 |
||
|
16
|
16
09401-13414-000 CLIPClip, pcv hose G16A; 2000-04-01~2002-09-01 |
09401-13414-000 |
from US $1.60 |
||
|
17
|
17
13650-50G01-000 Sensor,water TempG16A; 2000-04-01~2002-09-01 |
13650-50G01-000 |
US $125.60 |
||
