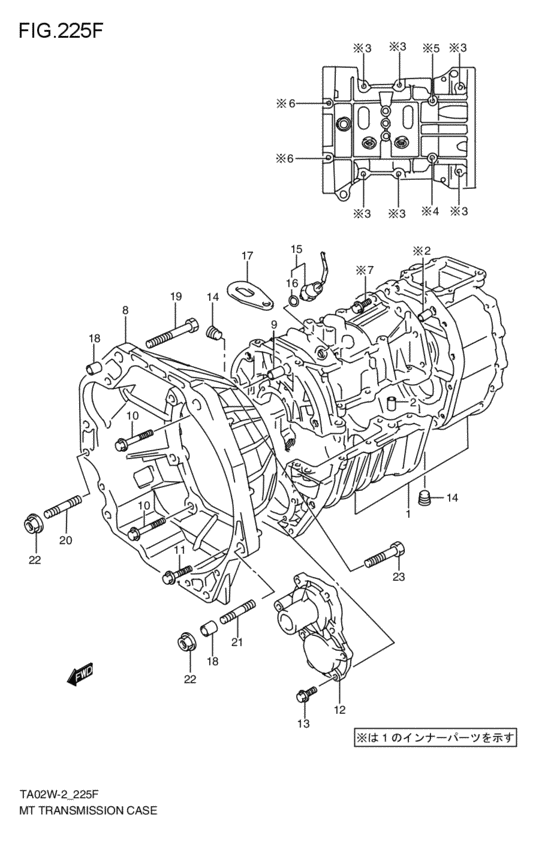

mt - transmission case (MT; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-65D00-000 CASE ASSY,T/MMT; 2000-04-01~2002-09-01 |
24700-65D00-000 |
US $978.56 |
||
|
2
|
2
04211-13149-000 PINMT; 2000-04-01~2002-09-01 |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
01550-08303-000
Bolt
MT; 2000-04-01~2002-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830B-000 BoltMT; 2000-04-01~2002-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
3
|
3
01550-0830A-000 BOLTBolt, mount oil seal cover MT; 2000-04-01~2002-09-01 |
01550-0830A-000 |
from US $1.12 |
||
|
4
|
4
01550-08953-000
Bolt
MT; 2000-04-01~2002-09-01 |
01550-08953-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0895B-000 BoltBolt, crankcase (8x95) MT; 2000-04-01~2002-09-01 |
01550-0895B-000 |
US $24.70 |
||
|
4
|
4
01550-0895A-000 BOLTMT; 2000-04-01~2002-09-01 |
01550-0895A-000 |
from US $1.82 |
||
|
5
|
5
09103-08134-000 BOLT(8X110)Bolt, collector no.1 MT; 2000-04-01~2002-09-01 |
09103-08134-000 |
from US $1.82 |
||
|
6
|
6
09103-08131-000 BOLT(8X120)MT; 2000-04-01~2002-09-01 |
09103-08131-000 |
US $2.24 |
||
|
7
|
7
01550-08303-000
Bolt
MT; 2000-04-01~2002-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0830B-000 BoltMT; 2000-04-01~2002-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
7
|
7
01550-0830A-000 BOLTBolt, mount oil seal cover MT; 2000-04-01~2002-09-01 |
01550-0830A-000 |
from US $1.12 |
||
|
8
|
8
21341-65D41-000 HOUSING,CLUTCHMT; 2000-04-01~2002-09-01 |
21341-65D41-000 |
US $450.56 |
||
|
9
|
9
04211-13149-000 PINMT; 2000-04-01~2002-09-01 |
04211-13149-000 |
from US $1.28 |
||
|
10
|
10
01550-10403-000
Bolt
MT; 2000-04-01~2002-09-01 |
01550-10403-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-1040B-000 BOLTMT; 2000-04-01~2002-09-01 |
01550-1040B-000 |
US $21.70 |
||
|
10
|
10
01550-1040A-000 BOLTMT; 2000-04-01~2002-09-01 |
01550-1040A-000 |
from US $1.12 |
||
|
11
|
11
01550-10503-000
Bolt
MT; 2000-04-01~2002-09-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1050B-000 BOLTMT; 2000-04-01~2002-09-01 |
01550-1050B-000 |
US $1.22 |
||
|
12
|
12
24741-66D00-000 RETAINER,INRUT SFT BRGMT:G16A; 2000-04-01~2002-09-01 |
24741-66D00-000 |
US $100.80 |
||
|
13
|
13
09103-08152-000 BoltMT; 2000-04-01~2002-09-01 |
09103-08152-000 |
from US $1.93 |
||
| replacement | |||||
|
13
|
13
09103-08419-000 BOLT(8X25)MT; 2000-04-01~2002-09-01 |
09103-08419-000 |
from US $2.08 |
||
|
14
|
14
09246-16010-000
PLUG
MT; 2000-04-01~2002-09-01 |
09246-16010-000 |
— | ||
| replacement | |||||
|
14
|
14
09246-16021-000 Plug,t/m Oil DrainMT; 2000-04-01~2002-09-01 |
09246-16021-000 |
US $4.86 |
||
|
15
|
15
37610-83001-000 SWITCH ASSY,BACK UP LAMPMT; 2000-04-01~2002-09-01 |
37610-83001-000 |
US $41.04 |
||
|
16
|
16
09280-11002-000 O RING(D:1.9,ID:11.4)MT; 2000-04-01~2002-09-01 |
09280-11002-000 |
US $1.52 |
||
|
17
|
17
11851-62B00-000 HOOKMT; 2000-04-01~2002-09-01 |
11851-62B00-000 |
US $5.02 |
||
|
18
|
18
09206-15001-000 PIN(12.4X15X17)MT; 2000-04-01~2002-09-01 |
09206-15001-000 |
US $1.92 |
||
|
19
|
19
01550-12753-000
ボルト
MT; 2000-04-01~2002-09-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-1275A-000 BOLTMT; 2000-04-01~2002-09-01 |
01550-1275A-000 |
US $1.92 |
||
|
20
|
20
09108-12007-000
Bolt,stud
MT; 2000-04-01~2002-09-01 |
09108-12007-000 |
— | ||
| replacement | |||||
|
20
|
20
09108-12012-000 BOLT,STUDMT; 2000-04-01~2002-09-01 |
09108-12012-000 |
US $2.72 |
||
|
21
|
21
09108-12006-000 BOLT,STUDMT; 2000-04-01~2002-09-01 |
09108-12006-000 |
US $28 |
||
|
22
|
22
08316-10123-000
Nut
MT:G16A; 2000-04-01~2002-09-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1012A-000 NUTMT:G16A; 2000-04-01~2002-09-01 |
08316-1012A-000 |
from US $0.96 |
||
|
23
|
23
01550-12653-000
ボルト
MT:G16A; 2000-04-01~2002-09-01 |
01550-12653-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1265B-000 BoltMT:G16A; 2000-04-01~2002-09-01 |
01550-1265B-000 |
US $1.76 |
||
