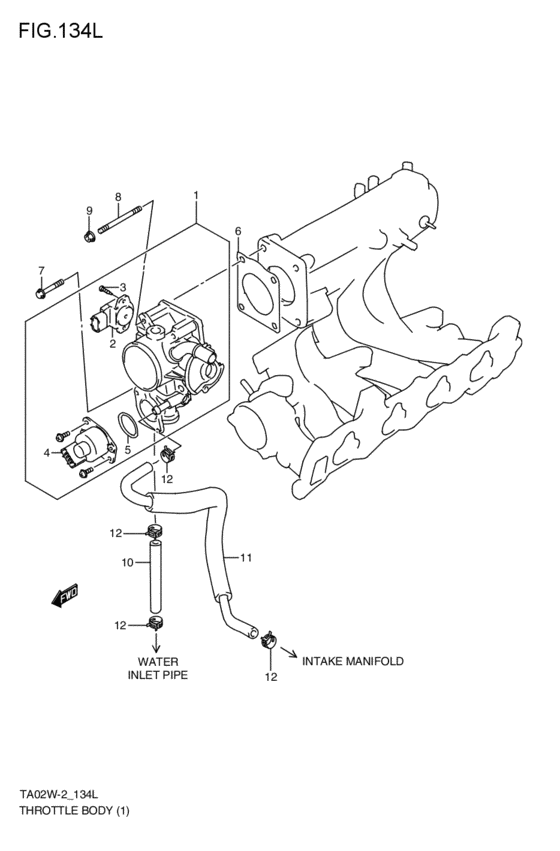

throttle body (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-66D00-000 BODY ASSY,THROTTLEG16A; 2000-04-01~2002-09-01 |
13400-66D00-000 |
US $1,136.96 |
||
|
2
|
2
13420-65D00-000
センサ,スロットルポジション
G16A; 2000-04-01~2002-09-01 |
13420-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-65D01-000 SENSOR,THROTTLE POSITIONG16A; 2000-04-01~2002-09-01 |
13420-65D01-000 |
US $211.20 |
||
|
3
|
3
13428-65D00-000 SCREW,TP-SENSORG16A; 2000-04-01~2002-09-01 |
13428-65D00-000 |
US $2.10 |
||
|
4
|
4
18137-65D00-000 VALVE,IACG16A; 2000-04-01~2002-09-01 |
18137-65D00-000 |
US $349.60 |
||
|
5
|
5
13411-65D00-000 O-RING,IAC VALVEG16A; 2000-04-01~2002-09-01 |
13411-65D00-000 |
US $4.38 |
||
|
6
|
6
13421-65D00-000 GASKET,THROTTLE BODYG16A; 2000-04-01~2002-09-01 |
13421-65D00-000 |
US $6.56 |
||
|
7
|
7
01550-08503-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0850B-000 BoltG16A; 2000-04-01~2002-09-01 |
01550-0850B-000 |
from US $1.22 |
||
|
8
|
8
01421-08503-000
Bolt, stud
G16A; 2000-04-01~2002-09-01 |
01421-08503-000 |
— | ||
| replacement | |||||
|
8
|
8
01421-0850A-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01421-0850A-000 |
from US $4.18 |
||
|
9
|
9
08316-10083-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
09356-75141-600 HOSE(7.5X14.5X600)L:600>100; G16A; 2000-04-01~2002-09-01 |
09356-75141-600 |
US $7.20 |
||
|
11
|
11
13494-66D01-000 HOSE,WTR THROTTLE BODY OUTLETG16A; 2000-04-01~2002-09-01 |
13494-66D01-000 |
US $17.96 |
||
|
12
|
12
09401-12410-000 CLIPClip, filter outlet G16A; 2000-04-01~2002-09-01 |
09401-12410-000 |
from US $1.52 |
||
