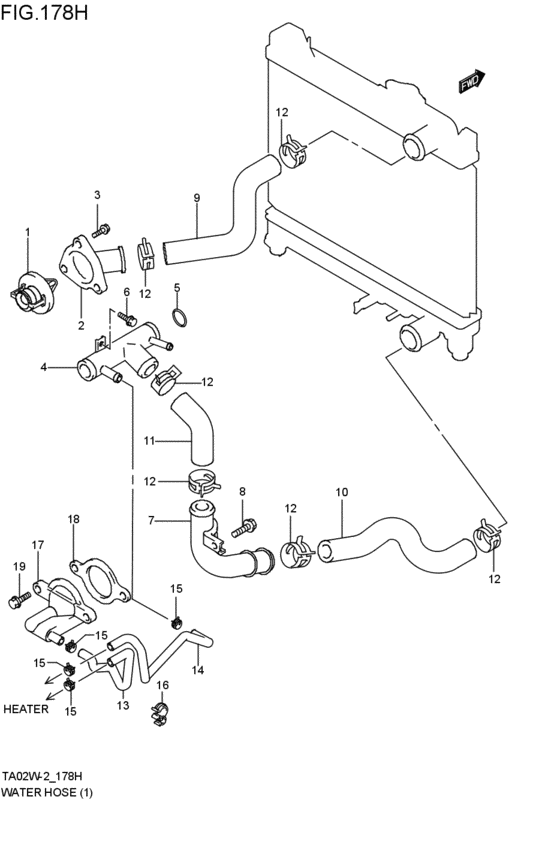

water hose (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17670-66D01-000
Thermostat,wtr(88?c)
G16A; 2000-04-01~2002-09-01 |
17670-66D01-000 |
— | ||
| replacement | |||||
|
1
|
1
17670-66M00-000 THERMOSTAT,WATERG16A; 2000-04-01~2002-09-01 |
17670-66M00-000 |
from US $25.60 |
||
|
2
|
2
17560-77EA0-000
Cap,wtr thermostat
G16A; 2000-04-01~2002-09-01 |
17560-77EA0-000 |
— | ||
| replacement | |||||
|
2
|
2
17560-57L00-000 CAP,WTR THERMOSTATG16A; 2000-04-01~2002-09-01 |
17560-57L00-000 |
from US $16.34 |
||
|
3
|
3
01550-06203-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0620B-000 BOLTBolt, inspection cap G16A; 2000-04-01~2002-09-01 |
01550-0620B-000 |
from US $0.76 |
||
|
4
|
4
17550-66D00-000 PIPE,WATER INLETG16A; 2000-04-01~2002-09-01 |
17550-66D00-000 |
from US $59 |
||
|
5
|
5
09280-28008-000 O RING(D:3.5,ID:27.7)G16A; 2000-04-01~2002-09-01 |
09280-28008-000 |
from US $0.63 |
||
|
6
|
6
01550-06103-000
Bolt, front
G16A; 2000-04-01~2002-09-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0610B-000 BoltBolt G16A; 2000-04-01~2002-09-01 |
01550-0610B-000 |
from US $0.80 |
||
|
6
|
6
01550-0610A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0610A-000 |
from US $0.80 |
||
|
7
|
7
17860-66D00-000 PIPE,RDTR OUTLETG16A; 2000-04-01~2002-09-01 |
17860-66D00-000 |
US $27.86 |
||
|
8
|
8
01550-06123-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp G16A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
9
|
9
17841-66D00-000 HOSE,RADIATOR INLETG16A; 2000-04-01~2002-09-01 |
17841-66D00-000 |
from US $20.12 |
||
|
10
|
10
17851-66D00-000 HOSE,RADIATOR OUTLETG16A; 2000-04-01~2002-09-01 |
17851-66D00-000 |
from US $22.55 |
||
|
11
|
11
17852-66D00-000 HOSE,WTR INLETG16A; 2000-04-01~2002-09-01 |
17852-66D00-000 |
US $16.80 |
||
|
12
|
12
09401-30405-000 CLIPG16A; 2000-04-01~2002-09-01 |
09401-30405-000 |
from US $3.04 |
||
|
13
|
13
17871-66D00-000 HOSE,HEATER INLETG16A; 2000-04-01~2002-09-01 |
17871-66D00-000 |
from US $23.76 |
||
|
14
|
14
17872-66D00-000 HOSE,HEATER OUTLETG16A; 2000-04-01~2002-09-01 |
17872-66D00-000 |
from US $24.66 |
||
|
15
|
15
09401-18403-000 CLIPClip, heater hose G16A; 2000-04-01~2002-09-01 |
09401-18403-000 |
US $1.92 |
||
|
16
|
16
09408-00182-000 CLAMPG16A; 2000-04-01~2002-09-01 |
09408-00182-000 |
US $1.68 |
||
|
17
|
17
17570-57B00-000 CAP,WATER OUTLETG16A; 2000-04-01~2002-09-01 |
17570-57B00-000 |
US $39.52 |
||
|
18
|
18
17699-60B02-000 GASKET,THERMO CASEG16A; 2000-04-01~2002-09-01 |
17699-60B02-000 |
from US $3.94 |
||
|
19
|
19
01550-08253-000
Bolt, rear
G16A; 2000-04-01~2002-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0825B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825B-000 |
from US $0.96 |
||
|
19
|
19
01550-0825A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825A-000 |
from US $1.06 |
||
