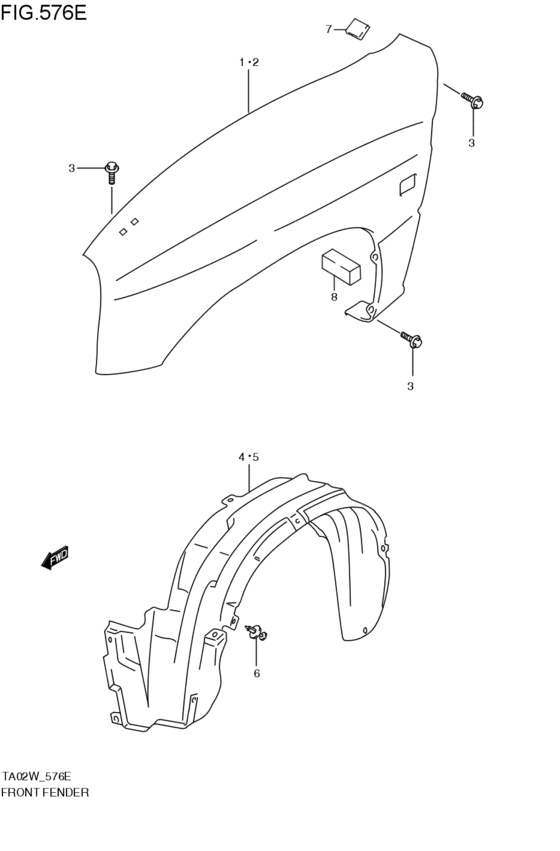

front fender (1997-11-01~) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- GLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58611-65D21-000
パネル,フロントフェンダアウタ,ライト
G16A:GLTD; 1998-11-01~ |
58611-65D21-000 |
— | ||
| replacement | |||||
|
1
|
1
58611-65D60-000 PANEL,FR FENDER OUTER,RG16A:GLTD; 1998-11-01~ |
58611-65D60-000 |
US $298.08 |
||
|
2
|
2
58811-65D41-000
パネル,フロントフェンダアウタ,レフト
G16A:GLTD; 1998-11-01~ |
58811-65D41-000 |
— | ||
|
3
|
3
02162-06163-000
Screw
1997-11-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0616B-000 SCREWBolt, adjust 1997-11-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
4
|
4
72481-65D10-000 LINING,FR FENDER,R1997-11-01~ |
72481-65D10-000 |
US $93.49 |
||
|
5
|
5
72482-65D10-000 LINING,FR FENDER,L1997-11-01~ |
72482-65D10-000 |
US $61.09 |
||
|
6
|
6
09409-07332-000 CLIP1997-11-01~ |
09409-07332-000 |
from US $1.10 |
||
|
7
|
7
83921-82C00-000 PAD1997-11-01~ |
83921-82C00-000 |
US $4.16 |
||
