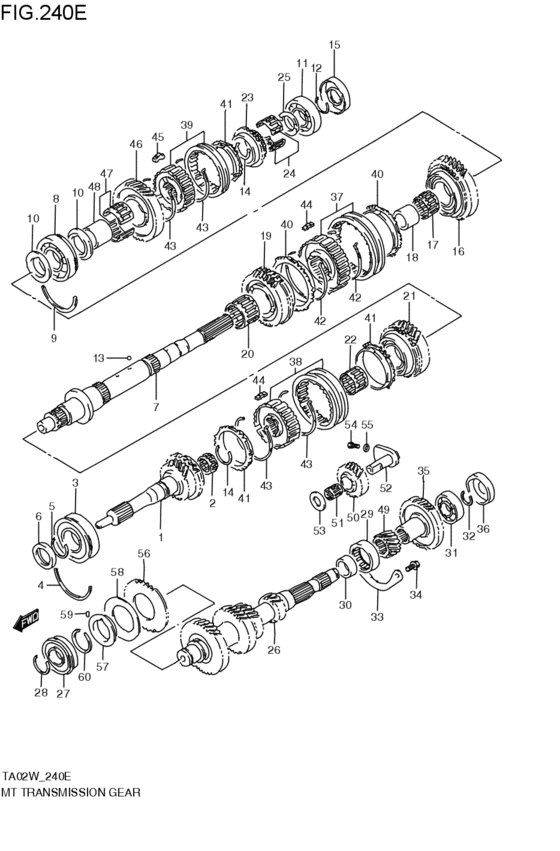

mt - transmission gear (MT; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- GLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-66D01-000 SHAFT,T/M INPUTMT; 1997-11-01~2000-03-01 |
24110-66D01-000 |
US $291.84 |
||
|
2
|
2
24152-85F00-000 BEARING,INP SFT NDLMT; 1997-11-01~2000-03-01 |
24152-85F00-000 |
from US $13.12 |
||
|
3
|
3
09262-28005-000 BEARING(28X68X18)MT; 1997-11-01~2000-03-01 |
09262-28005-000 |
from US $33.44 |
||
|
4
|
4
09390-68002-000 C RINGMT; 1997-11-01~2000-03-01 |
09390-68002-000 |
from US $1.76 |
||
|
5
|
5
09380-28007-000 RING,SNAPCHKK; MT; 1997-11-01~2000-03-01 |
09380-28007-000 |
from US $1.80 |
||
|
6
|
6
09283-28014-000 SEAL,OIL(28X50X8)Seal, oil MT; 1997-11-01~2000-03-01 |
09283-28014-000 |
from US $8.87 |
||
|
7
|
7
24121-60A00-000 SHAFT,T/M MAINMT; 1997-11-01~2000-03-01 |
24121-60A00-000 |
US $257.60 |
||
|
8
|
8
09262-30097-000 BEARING(30X65X19)MT; 1997-11-01~2000-03-01 |
09262-30097-000 |
US $37.25 |
||
|
9
|
9
09390-65007-000 C RINGMT; 1997-11-01~2000-03-01 |
09390-65007-000 |
from US $1.76 |
||
|
10
|
10
24271-60A00-000 WASHER,T/M MAIN SFT BRGMT; 1997-11-01~2000-03-01 |
24271-60A00-000 |
US $19.20 |
||
|
11
|
11
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) MT; 1997-11-01~2000-03-01 |
09262-25073-000 |
from US $14.59 |
||
|
12
|
12
09380-25011-000 RING,SNAPCHKK; MT; 1997-11-01~2000-03-01 |
09380-25011-000 |
from US $1.04 |
||
|
13
|
13
06111-06003-000 BALLMT; 1997-11-01~2000-03-01 |
06111-06003-000 |
from US $0.76 |
||
|
14
|
14
09380-28007-000 RING,SNAPCHKK; MT; 1997-11-01~2000-03-01 |
09380-28007-000 |
from US $1.80 |
||
|
15
|
15
09282-25006-000 SEAL,OIL(25X62X13)MT; 1997-11-01~2000-03-01 |
09282-25006-000 |
from US $14.83 |
||
|
16
|
16
24211-83011-000
ギヤ,トランスミッションメインシャフト,ロー
MT; 1997-11-01~2000-03-01 |
24211-83011-000 |
— | ||
| replacement | |||||
|
16
|
16
24211-83020-000 GEAR,MAIN SFT LOWMT; 1997-11-01~2000-03-01 |
24211-83020-000 |
US $134.69 |
||
|
17
|
17
09263-35015-000 BEARING(35X40X26.8)MT; 1997-11-01~2000-03-01 |
09263-35015-000 |
from US $10.79 |
||
|
18
|
18
09300-30003-000 BUSH(30X35X27.1)MT; 1997-11-01~2000-03-01 |
09300-30003-000 |
from US $7.74 |
||
|
19
|
19
24220-60A01-000 GEAR,MAIN SFT 2NDMT; 1997-11-01~2000-03-01 |
24220-60A01-000 |
US $176 |
||
|
20
|
20
09263-35015-000 BEARING(35X40X26.8)MT; 1997-11-01~2000-03-01 |
09263-35015-000 |
from US $10.79 |
||
|
21
|
21
24230-65D00-000 GEAR,MAIN SFT 3RDMT; 1997-11-01~2000-03-01 |
24230-65D00-000 |
US $157.87 |
||
|
22
|
22
09263-30031-000 BEARING(30X35X26.8)MT; 1997-11-01~2000-03-01 |
09263-30031-000 |
from US $8.16 |
||
|
23
|
23
24250-77500-000
ギヤ,メインシャフト,フィフス
MT; 1997-11-01~2000-03-01 |
24250-77500-000 |
— | ||
| replacement | |||||
|
23
|
23
24250-77501-000 GEAR,MAIN SFT 5THMT; 1997-11-01~2000-03-01 |
24250-77501-000 |
from US $77.27 |
||
|
24
|
24
24801-60810-000 BEARING SETMT; 1997-11-01~2000-03-01 |
24801-60810-000 |
from US $15.36 |
||
|
25
|
25
24255-60A00-000 WASHER,MAIN SFT 5TH GRMT; 1997-11-01~2000-03-01 |
24255-60A00-000 |
US $6.88 |
||
|
26
|
26
24131-60A32-000 SHAFT,T/M COUNTERMT; 1999-09-01~2000-03-01 |
24131-60A32-000 |
US $561.60 |
||
|
26
|
26
24131-60A40-000 SHAFT,T/M COUNTERMT; 1997-11-01~1999-08-01 |
24131-60A40-000 |
US $785.60 |
||
|
27
|
27
09262-28018-000 BEARING(28X58X16)MT; 1997-11-01~2000-03-01 |
09262-28018-000 |
from US $49.34 |
||
|
28
|
28
09380-28007-000 RING,SNAPCHKK; MT; 1997-11-01~2000-03-01 |
09380-28007-000 |
from US $1.80 |
||
|
29
|
29
09264-25005-000 BEARING(25X52X15)MT; 1997-11-01~2000-03-01 |
09264-25005-000 |
from US $59.81 |
||
|
30
|
30
09300-25028-000 BUSH(25X32X15)MT; 1997-11-01~2000-03-01 |
09300-25028-000 |
from US $15.41 |
||
|
31
|
31
09262-20073-000 BEARING(20X52X15)Bearing (20x52x15) MT; 1997-11-01~2000-03-01 |
09262-20073-000 |
from US $12.31 |
||
|
32
|
32
09380-20011-000 RING,SNAPMT; 1997-11-01~2000-03-01 |
09380-20011-000 |
US $1.52 |
||
|
33
|
33
24135-60A01-000 PLATE,T/M CTSHFT BRGMT; 1997-11-01~2000-03-01 |
24135-60A01-000 |
US $2.10 |
||
|
34
|
34
09103-06083-000
Bolt (6x12)
MT; 1997-11-01~2000-03-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
34
|
34
09103-06285-000 BOLT(6X12)Bolt (6x12) MT; 1997-11-01~2000-03-01 |
09103-06285-000 |
from US $1.28 |
||
|
35
|
35
24351-60A30-000 GEAR,CTSHFT 5THMT; 1997-11-01~2000-03-01 |
24351-60A30-000 |
US $231.04 |
||
|
36
|
36
09241-52004-000 PLUGMT; 1997-11-01~2000-03-01 |
09241-52004-000 |
US $12.64 |
||
|
37
|
37
24400-60A00-000 HUB ASSY,LOW SPEED SYNCMT; 1997-11-01~2000-03-01 |
24400-60A00-000 |
US $237.12 |
||
|
38
|
38
24410-60A00-000 HUB ASSY,HIGH SPEED SYNCMT; 1997-11-01~2000-03-01 |
24410-60A00-000 |
from US $136.82 |
||
|
39
|
39
24420-60A01-000 HUB ASSY,5TH&REVMT; 1997-11-01~2000-03-01 |
24420-60A01-000 |
from US $159.30 |
||
|
40
|
40
24431-83001-000 RING,LOW SPEED SYNCMT; 1997-11-01~2000-03-01 |
24431-83001-000 |
from US $48.06 |
||
|
41
|
41
24432-60A00-000 RING,SYNC HIGH SPEEDMT; 1997-11-01~2000-03-01 |
24432-60A00-000 |
from US $51.53 |
||
|
42
|
42
09388-00017-000 SPRINGMT; 1997-11-01~2000-03-01 |
09388-00017-000 |
from US $2.05 |
||
|
43
|
43
09388-00019-000 SPRINGMT; 1997-11-01~2000-03-01 |
09388-00019-000 |
from US $1.98 |
||
|
44
|
44
24471-60A00-000 KEY,SYNCMT; 1997-11-01~2000-03-01 |
24471-60A00-000 |
US $1.73 |
||
|
45
|
45
24473-70D10-000 KEY,SYNCMT; 1997-11-01~2000-03-01 |
24473-70D10-000 |
US $1.92 |
||
|
46
|
46
24681-60A00-000 GEAR,MAIN SFT REVMT; 1997-11-01~2000-03-01 |
24681-60A00-000 |
US $230 |
||
|
47
|
47
24801-60820-000 BEARING SETMT; 1997-11-01~2000-03-01 |
24801-60820-000 |
from US $17.42 |
||
|
48
|
48
09300-30003-000 BUSH(30X35X27.1)MT; 1997-11-01~2000-03-01 |
09300-30003-000 |
from US $7.74 |
||
|
49
|
49
24671-60A30-000 GEAR,CTSHFT REVMT; 1997-11-01~2000-03-01 |
24671-60A30-000 |
US $11.41 |
||
|
50
|
50
24561-85F40-000 GEAR,REV IDLEMT; 1997-11-01~2000-03-01 |
24561-85F40-000 |
US $171.20 |
||
|
51
|
51
09263-26030-000 BEARING(26X31X25.8)MT; 1997-11-01~2000-03-01 |
09263-26030-000 |
US $25.60 |
||
|
52
|
52
24551-65D00-000 SHAFT,T/M REVERSE GEARMT; 1997-11-01~2000-03-01 |
24551-65D00-000 |
US $75.81 |
||
|
53
|
53
09166-20013-000 WASHERMT; 1997-11-01~2000-03-01 |
09166-20013-000 |
US $44.90 |
||
|
54
|
54
24565-60B00-000 BOLT,REVERSE SHAFTMT; 1997-11-01~2000-03-01 |
24565-60B00-000 |
from US $1.49 |
||
|
55
|
55
09168-08015-000 GASKET(8.2X14X1.6)MT; 1997-11-01~2000-03-01 |
09168-08015-000 |
from US $1.28 |
||
|
56
|
56
24137-60A10-000 GEAR,T/M FRICTIONMT; 1997-11-01~2000-03-01 |
24137-60A10-000 |
US $33.60 |
||
|
57
|
57
24138-60A01-000 RETAINER,T/M FRICTION GEARMT; 1997-11-01~2000-03-01 |
24138-60A01-000 |
US $56.80 |
||
|
58
|
58
24139-60A00-000 SPRING,T/M FRICTION GEARCHKK; MT; 1997-11-01~2000-03-01 |
24139-60A00-000 |
US $6.72 |
||
|
59
|
59
09261-02010-000 PIN(2X4.5)MT; 1997-11-01~2000-03-01 |
09261-02010-000 |
US $12.10 |
||
|
60
|
60
09380-34005-000 RING,SNAPMT; 1997-11-01~2000-03-01 |
09380-34005-000 |
US $43.40 |
||
