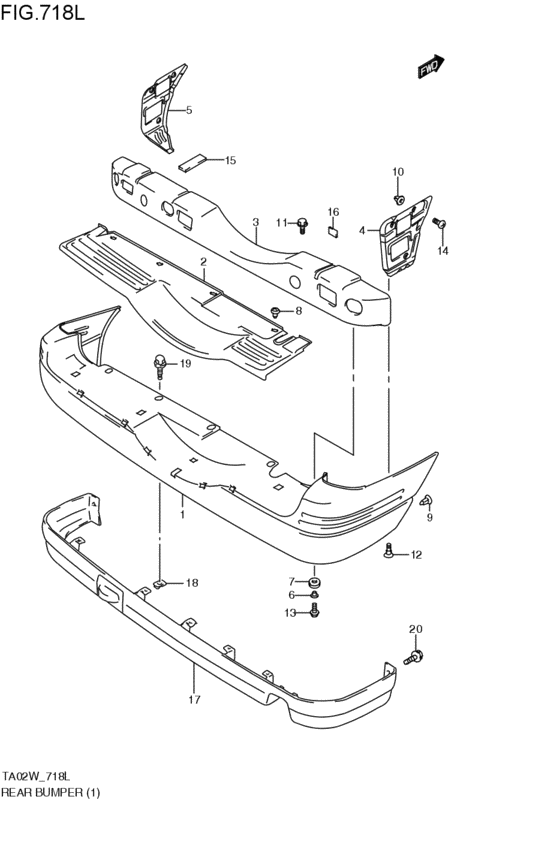

rear bumper (G16A:GLTD; 1998-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- G16A
- transmission
- MT
- Number of doors
- 3DR
- grade
- GLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-65D20-Z2S
バンパ,リヤ(シルバー)
シルバ-; G16A:GLTD; 1998-11-01~2000-03-01 |
71811-65D20-Z2S |
— | ||
|
2
|
2
71812-65D01-5PK GARNISH,RR BPRブラック; G16A:GLTD; 1998-11-01~2000-03-01 |
71812-65D01-5PK |
US $168 |
||
|
3
|
3
71820-65D40-000
MEMBER,RR BUMPER
G16A:GLTD; 1998-11-01~2000-03-01 |
71820-65D40-000 |
— | ||
|
4
|
4
71831-65D00-000 BRACKET,RR BUMPER SIDE,RG16A:GLTD; 1998-11-01~1998-12-01 |
71831-65D00-000 |
US $58.53 |
||
|
4
|
4
71831-65D10-000
ブラケット,リヤバンパサイド,ライト
G16A:GLTD; 1999-01-01~2000-03-01 |
71831-65D10-000 |
— | ||
|
5
|
5
71841-65D00-000 BRACKET,RR BUMPER SIDE,LG16A:GLTD; 1998-11-01~1998-12-01 |
71841-65D00-000 |
US $58.53 |
||
|
5
|
5
71841-65D10-000
ブラケット,リヤバンパサイド,レフト
G16A:GLTD; 1999-01-01~2000-03-01 |
71841-65D10-000 |
— | ||
|
6
|
6
09169-06062-000 WASHERWasher G16A:GLTD; 1998-11-01~2000-03-01 |
09169-06062-000 |
from US $1.12 |
||
|
7
|
7
09320-09502-000 CUSHIONCushion, leg guard G16A:GLTD; 1998-11-01~2000-03-01 |
09320-09502-000 |
from US $2.88 |
||
|
8
|
8
09409-07325-5PK CLIP(BLACK)ブラック; G16A:GLTD; 1998-11-01~2000-03-01 |
09409-07325-5PK |
from US $1.37 |
||
|
9
|
9
09409-07332-000 CLIPG16A:GLTD; 1998-11-01~2000-03-01 |
09409-07332-000 |
from US $1.26 |
||
|
10
|
10
09148-06007-000 NUTG16A:GLTD; 1998-11-01~2000-03-01 |
09148-06007-000 |
from US $0.86 |
||
|
11
|
11
01551-08203-000
Bolt
G16A:GLTD; 1998-11-01~2000-03-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
11
|
11
01551-0820A-000 BOLTG16A:GLTD; 1998-11-01~2000-03-01 |
01551-0820A-000 |
from US $0.96 |
||
|
12
|
12
09122-66004-000
Screw,6x14
G16A:GLTD; 1998-11-01~2000-03-01 |
09122-66004-000 |
— | ||
| replacement | |||||
|
12
|
12
09122-66007-000 SCREW(6X14)G16A:GLTD; 1998-11-01~2000-03-01 |
09122-66007-000 |
from US $0.80 |
||
|
13
|
13
02162-06203-000
Bolt
G16A:GLTD; 1998-11-01~2000-03-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
13
|
13
02162-0620C-000 SCREWG16A:GLTD; 1998-11-01~2000-03-01 |
02162-0620C-000 |
from US $0.80 |
||
|
14
|
14
03242-06163-000
Screw
G16A:GLTD; 1998-11-01~2000-03-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
03241-0616C-000 SCREWG16A:GLTD; 1998-11-01~2000-03-01 |
03241-0616C-000 |
from US $0.76 |
||
|
15
|
15
71881-65D01-000 PADG16A:GLTD; 1998-11-01~2000-03-01 |
71881-65D01-000 |
US $4.05 |
||
|
16
|
16
71882-65D00-000 PADG16A:GLTD; 1998-11-01~2000-03-01 |
71882-65D00-000 |
US $3.42 |
||
|
17
|
17
77260-65D00-Z2S
エクステンション,リヤバンパ(シルバー)
シルバ-; G16A:GLTD; 1998-11-01~2000-03-01 |
77260-65D00-Z2S |
— | ||
|
18
|
18
74819-84000-000 NUTG16A:GLTD; 1998-11-01~2000-03-01 |
74819-84000-000 |
from US $1.51 |
||
|
19
|
19
09132-06010-000 SCREW(6X16)G16A:GLTD; 1998-11-01~2000-03-01 |
09132-06010-000 |
from US $1.08 |
||
|
20
|
20
09136-06108-000
BOLT(6X20)
G16A:GLTD; 1998-11-01~2000-03-01 |
09136-06108-000 |
— | ||
