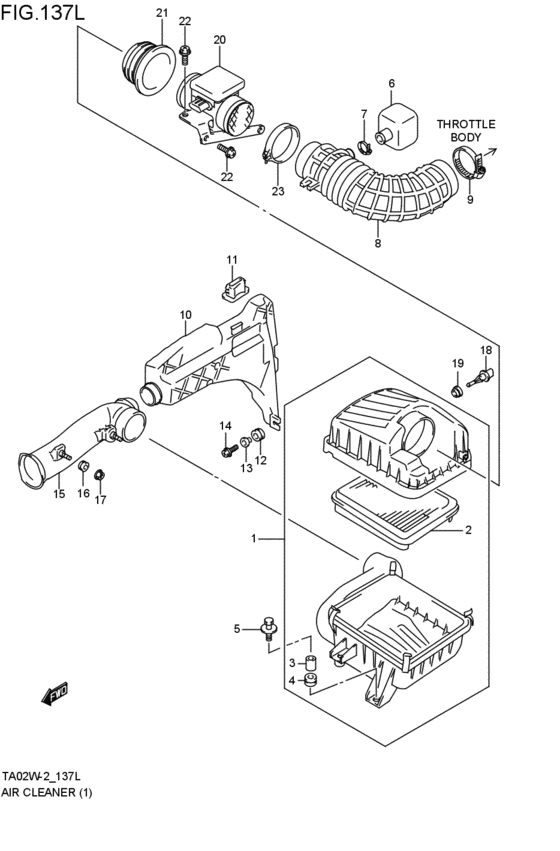

air cleaner (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-65D02-000 CLEANER ASSY,AIRG16A; 2000-04-01~2002-09-01 |
13700-65D02-000 |
US $420.80 |
||
|
2
|
2
13780-77E00-000 ELEMENT,AIR CLEANERG16A; 2000-04-01~2002-09-01 |
13780-77E00-000 |
from US $26.15 |
||
|
3
|
3
13877-65D00-000 COLLAR,7.6X10X19.3G16A; 2000-04-01~2002-09-01 |
13877-65D00-000 |
US $3.04 |
||
|
4
|
4
13878-65D00-000 CUSHION,12.5X22X19.5G16A; 2000-04-01~2002-09-01 |
13878-65D00-000 |
US $2.74 |
||
|
5
|
5
09116-06172-000 BOLT(6X30)Bolt (6x30) G16A; 2000-04-01~2002-09-01 |
09116-06172-000 |
from US $1.44 |
||
|
6
|
6
13761-65D10-000 RESONATOR,NO.2G16A; 2000-04-01~2002-09-01 |
13761-65D10-000 |
US $15.90 |
||
|
7
|
7
13892-65D00-000 CLAMP,RESONATOR NO.2G16A; 2000-04-01~2002-09-01 |
13892-65D00-000 |
US $7.18 |
||
|
8
|
8
13881-66D00-000 HOSE,AIR CLEANER OUTLETG16A; 2000-04-01~2002-09-01 |
13881-66D00-000 |
US $169.60 |
||
|
9
|
9
09402-82511-000 CLAMPG16A; 2000-04-01~2002-09-01 |
09402-82511-000 |
US $65.90 |
||
|
10
|
10
13761-65D00-000 RESONATORG16A; 2000-04-01~2002-09-01 |
13761-65D00-000 |
US $93.84 |
||
|
11
|
11
13765-65D00-000 CUSHION,RESONATOR,UPPERG16A; 2000-04-01~2002-09-01 |
13765-65D00-000 |
US $9.72 |
||
|
12
|
12
09320-08047-000
CUSHION
G16A; 2000-04-01~2002-09-01 |
09320-08047-000 |
— | ||
| replacement | |||||
|
12
|
12
09320-08518-000 CushionG16A; 2000-04-01~2002-09-01 |
09320-08518-000 |
from US $1.52 |
||
|
13
|
13
09169-07007-000 WASHERG16A; 2000-04-01~2002-09-01 |
09169-07007-000 |
US $26.50 |
||
|
14
|
14
02162-06203-000
Bolt
G16A; 2000-04-01~2002-09-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
14
|
14
02162-0620C-000 SCREWG16A; 2000-04-01~2002-09-01 |
02162-0620C-000 |
from US $0.80 |
||
|
15
|
15
13820-65D00-000 CASE,AIR CLNR SUCTIONG16A; 2000-04-01~2002-09-01 |
13820-65D00-000 |
US $80.96 |
||
|
16
|
16
13874-51E50-000 CUSHION,RESONATOR NO.2G16A; 2000-04-01~2002-09-01 |
13874-51E50-000 |
US $2.10 |
||
|
17
|
17
09159-06081-000 NUTG16A; 2000-04-01~2002-09-01 |
09159-06081-000 |
US $12.50 |
||
|
18
|
18
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp G16A; 2000-04-01~2002-09-01 |
13650-52G00-000 |
from US $50.92 |
||
|
19
|
19
13655-77E00-000
GROMMET,AIR TEMP SENSOR
G16A; 2000-04-01~2002-09-01 |
13655-77E00-000 |
— | ||
| replacement | |||||
|
19
|
19
13655-77E10-000 Grommet,air Temp SensorG16A; 2000-04-01~2002-09-01 |
13655-77E10-000 |
from US $2.88 |
||
|
20
|
20
13800-65D00-000 SENSOR ASSY,MAIN AIR FLOWG16A; 2000-04-01~2002-09-01 |
13800-65D00-000 |
US $928.93 |
||
|
21
|
21
13824-65D00-000 JOINT,MAF SENSORG16A; 2000-04-01~2002-09-01 |
13824-65D00-000 |
US $19.76 |
||
|
22
|
22
02162-06163-000
Screw
G16A; 2000-04-01~2002-09-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0616B-000 SCREWBolt, adjust G16A; 2000-04-01~2002-09-01 |
02162-0616B-000 |
from US $0.80 |
||
|
23
|
23
13891-65D00-000 CLAMP,CLNR OUTLET PIPEG16A; 2000-04-01~2002-09-01 |
13891-65D00-000 |
US $7.18 |
||
