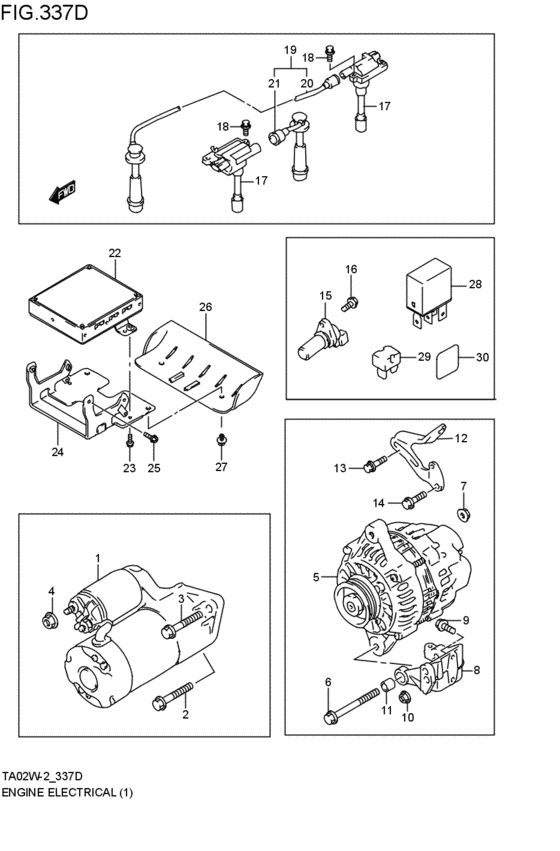

engine electrical (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A13-000
モータアッシ,スターティング
G16A:AT; 2000-04-01~2002-09-01 |
31100-60A13-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
G16A:AT; 2000-04-01~2002-09-01 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGG16A:AT; 2000-04-01~2002-09-01 |
31100-60A24-000 |
US $668.80 |
||
|
2
|
2
01550-08353-000
Bolt, rear
G16A:AT; 2000-04-01~2002-09-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0835B-000 BOLTG16A:AT; 2000-04-01~2002-09-01 |
01550-0835B-000 |
from US $1.12 |
||
|
2
|
2
01550-0835A-000 BOLTG16A:AT; 2000-04-01~2002-09-01 |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01550-08503-000
Bolt
G16A:AT; 2000-04-01~2002-09-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 BoltG16A:AT; 2000-04-01~2002-09-01 |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
08316-10083-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
31400-66D02-000
Generator assy
G16A; 2000-04-01~2002-09-01 |
31400-66D02-000 |
— | ||
| replacement | |||||
|
5
|
5
31400-66D04-000 GENERATOR ASSYG16A; 2000-04-01~2002-09-01 |
31400-66D04-000 |
US $753.28 |
||
|
6
|
6
01550-10853-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-10853-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1085A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-1085A-000 |
US $1.76 |
||
|
7
|
7
08316-10063-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
11551-83E00-000 BRACKET,GENERATORG16A; 2000-04-01~2002-09-01 |
11551-83E00-000 |
US $48.64 |
||
|
9
|
9
01550-08253-000
Bolt, rear
G16A; 2000-04-01~2002-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0825B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825B-000 |
from US $0.96 |
||
|
9
|
9
01550-0825A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825A-000 |
from US $1.06 |
||
|
10
|
10
08316-10083-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
11555-60G00-000
Bush, generator
G16A; 2000-04-01~2002-09-01 |
11555-60G00-000 |
— | ||
| replacement | |||||
|
11
|
11
11555-60G01-000 BUSHG16A; 2000-04-01~2002-09-01 |
11555-60G01-000 |
US $3.68 |
||
|
12
|
12
11561-66D00-000 ARM,GENERATOR ADJUSTG16A; 2000-04-01~2002-09-01 |
11561-66D00-000 |
US $20.61 |
||
|
13
|
13
09118-08107-000 BOLT(8X25)G16A; 2000-04-01~2002-09-01 |
09118-08107-000 |
US $1.12 |
||
|
14
|
14
01550-08203-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0820B-000 BoltG16A; 2000-04-01~2002-09-01 |
01550-0820B-000 |
from US $0.91 |
||
|
14
|
14
01550-0820A-000 BOLTBolt, funnel bracket G16A; 2000-04-01~2002-09-01 |
01550-0820A-000 |
from US $0.96 |
||
|
15
|
15
33220-50G02-000 SENSOR ASSY,CAM POSITIONG16A; 2000-04-01~2002-09-01 |
33220-50G02-000 |
from US $89.10 |
||
|
16
|
16
01550-06163-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
33410-66D00-000
コイルアッシ,イグニツシヨン
G16A; 2000-04-01~2002-09-01 |
33410-66D00-000 |
— | ||
| replacement | |||||
|
17
|
17
33410-66D01-000 COIL ASSY,IGNITIONG16A; 2000-04-01~2002-09-01 |
33410-66D01-000 |
US $278.40 |
||
|
18
|
18
01580-06203-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01580-06203-000 |
— | ||
| replacement | |||||
|
18
|
18
01580-0620B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01580-0620B-000 |
from US $4.49 |
||
|
19
|
19
33705-66D00-000 CORD SET,HIGH TENSIONG16A; 2000-04-01~2002-09-01 |
33705-66D00-000 |
from US $45.65 |
||
|
20
|
20
33730-66D00-000 CORD,HIGH TENSION NO.2G16A; 2000-04-01~2002-09-01 |
33730-66D00-000 |
US $30.18 |
||
|
21
|
21
33740-66D00-000 CORD,HT NO.3G16A; 2000-04-01~2002-09-01 |
33740-66D00-000 |
US $29.07 |
||
|
22
|
22
33920-82D11-000
コントローラアッシ,インジェクション
G16A:AT; 2000-04-01~2002-09-01 |
33920-82D11-000 |
— | ||
|
23
|
23
02162-06103-000
Bolt
G16A; 2000-04-01~2002-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0610A-000 SCREWG16A; 2000-04-01~2002-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
24
|
24
33924-65D20-000 BRACKET,EPI CONTG16A; 2000-04-01~2002-09-01 |
33924-65D20-000 |
US $17.88 |
||
|
25
|
25
02162-06103-000
Bolt
G16A; 2000-04-01~2002-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
25
|
25
02162-0610A-000 SCREWG16A; 2000-04-01~2002-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
26
|
26
33924-65D00-000 COVER,EPI CONTG16A; 2000-04-01~2002-09-01 |
33924-65D00-000 |
US $12.59 |
||
|
27
|
27
09409-07332-000 CLIPG16A; 2000-04-01~2002-09-01 |
09409-07332-000 |
from US $1.26 |
||
|
28
|
28
38860-76F01-000 RELAY ASSYRelay, starting motor G16A; 2000-04-01~2002-09-01 |
38860-76F01-000 |
from US $24.91 |
||
|
29
|
29
33926-78AA0-000 RESISTOR,IGT NO.10マ-ク 10; G16A; 2000-04-01~2002-09-01 |
33926-78AA0-000 |
US $8 |
||
|
29
|
29
33926-78AB0-000 RESISTOR,IGT NO.11マ-ク 11; G16A; 2000-04-01~2002-09-01 |
33926-78AB0-000 |
US $9.35 |
||
|
29
|
29
33926-78A01-000 RESISTOR,IGT NO.Nマ-ク N; G16A; 2000-04-01~2002-09-01 |
33926-78A01-000 |
US $9.35 |
||
|
29
|
29
33926-78A10-000 RESISTOR,IGT NO.1マ-ク 1; G16A; 2000-04-01~2002-09-01 |
33926-78A10-000 |
US $9.35 |
||
|
29
|
29
33926-78A20-000 RESISTOR,IGT NO.2マ-ク 2; G16A; 2000-04-01~2002-09-01 |
33926-78A20-000 |
US $9.35 |
||
|
29
|
29
33926-78A30-000 RESISTOR,IGT NO.3マ-ク 3; G16A; 2000-04-01~2002-09-01 |
33926-78A30-000 |
US $9.35 |
||
|
29
|
29
33926-78A40-000 RESISTOR,IGT NO.4マ-ク 4; G16A; 2000-04-01~2002-09-01 |
33926-78A40-000 |
US $9.35 |
||
|
29
|
29
33926-78A50-000 RESISTOR,IGT NO.5マ-ク 5; G16A; 2000-04-01~2002-09-01 |
33926-78A50-000 |
US $9.35 |
||
|
29
|
29
33926-78A60-000 RESISTOR,IGT NO.6マ-ク 6; G16A; 2000-04-01~2002-09-01 |
33926-78A60-000 |
US $9.35 |
||
|
29
|
29
33926-78A70-000 RESISTOR,IGT NO.7マ-ク 7; G16A; 2000-04-01~2002-09-01 |
33926-78A70-000 |
US $6.65 |
||
|
29
|
29
33926-78A80-000 RESISTOR,IGT NO.8マ-ク 8; G16A; 2000-04-01~2002-09-01 |
33926-78A80-000 |
US $9.35 |
||
|
29
|
29
33926-78A90-000 RESISTOR,IGT NO.9マ-ク 9; G16A; 2000-04-01~2002-09-01 |
33926-78A90-000 |
US $9.35 |
||
|
30
|
30
33927-76GA0-000 LABEL,IGT,NO.10マーク10; G16A; 2000-04-01~2002-09-01 |
33927-76GA0-000 |
US $2.72 |
||
|
30
|
30
33927-76GB0-000 LABEL,IGT,NO.11マーク11; G16A; 2000-04-01~2002-09-01 |
33927-76GB0-000 |
US $2.72 |
||
|
30
|
30
33927-76G01-000 LABEL,IGT NO NマークN; G16A; 2000-04-01~2002-09-01 |
33927-76G01-000 |
US $2.72 |
||
|
30
|
30
33927-76G10-000 LABEL,IGT,NO.1マーク1; G16A; 2000-04-01~2002-09-01 |
33927-76G10-000 |
US $2.72 |
||
|
30
|
30
33927-76G20-000 LABEL,IGT,NO.2マーク2; G16A; 2000-04-01~2002-09-01 |
33927-76G20-000 |
US $2.72 |
||
|
30
|
30
33927-76G30-000 LABEL,IGT,NO.3マーク3; G16A; 2000-04-01~2002-09-01 |
33927-76G30-000 |
US $2.72 |
||
|
30
|
30
33927-76G40-000 LABEL,IGT,NO.4マーク4; G16A; 2000-04-01~2002-09-01 |
33927-76G40-000 |
US $2.72 |
||
|
30
|
30
33927-76G50-000 LABEL,IGT,NO.5マーク5; G16A; 2000-04-01~2002-09-01 |
33927-76G50-000 |
US $2.72 |
||
|
30
|
30
33927-76G60-000 LABEL,IGT,NO.6マーク6; G16A; 2000-04-01~2002-09-01 |
33927-76G60-000 |
US $2.72 |
||
|
30
|
30
33927-76G70-000 LABEL,IGT,NO.7マーク7; G16A; 2000-04-01~2002-09-01 |
33927-76G70-000 |
US $2.72 |
||
|
30
|
30
33927-76G80-000 LABEL,IGT,NO.8マーク8; G16A; 2000-04-01~2002-09-01 |
33927-76G80-000 |
US $2.72 |
||
|
30
|
30
33927-76G90-000 LABEL,IGT,NO.9マーク9; G16A; 2000-04-01~2002-09-01 |
33927-76G90-000 |
US $2.72 |
||
