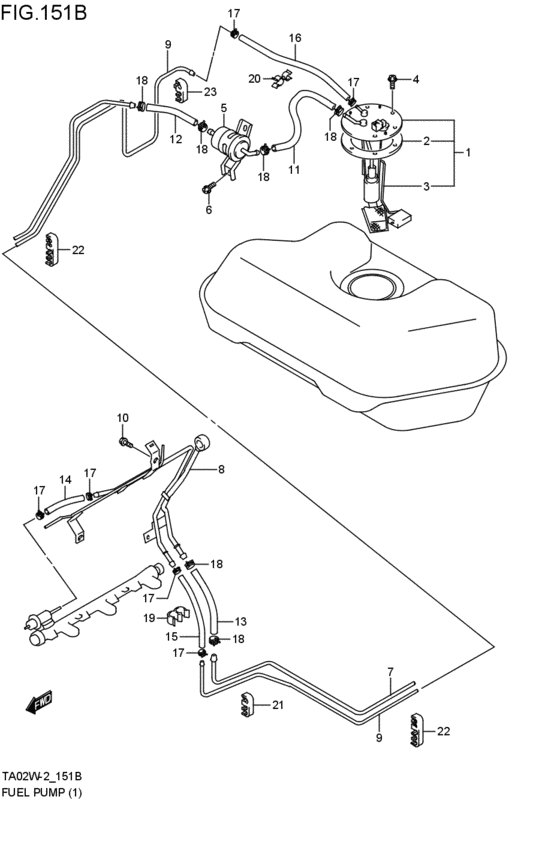

Fuel Pump (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-65D22-000 PUMP ASSY,FUELG16A; 2000-04-01~2002-09-01 |
15100-65D22-000 |
US $855.36 |
||
|
2
|
2
15111-65D00-000 GASKET,FUEL PUMPG16A; 2000-04-01~2002-09-01 |
15111-65D00-000 |
US $13.84 |
||
|
3
|
3
34810-65D30-000 GAUGE ASSY,FUEL LEVELG16A; 2000-04-01~2002-09-01 |
34810-65D30-000 |
US $90.53 |
||
|
4
|
4
02162-06103-000
Bolt
G16A; 2000-04-01~2002-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0610A-000 SCREWG16A; 2000-04-01~2002-09-01 |
02162-0610A-000 |
from US $0.64 |
||
|
5
|
5
15410-65D00-000 FILTER,FUELG16A; 2000-04-01~2002-09-01 |
15410-65D00-000 |
US $90.40 |
||
|
6
|
6
02162-06123-000
Bolt (6x12)
G16A; 2000-04-01~2002-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
02162-0612B-000 SCREWBolt G16A; 2000-04-01~2002-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
6
|
6
02162-0612A-000 SCREWBolt, bracket G16A; 2000-04-01~2002-09-01 |
02162-0612A-000 |
from US $0.80 |
||
|
7
|
7
15821-65D50-000 PIPE,FUEL FEEDG16A; 2000-04-01~2002-09-01 |
15821-65D50-000 |
US $65.87 |
||
|
8
|
8
15850-66D00-000 PIPE,FUEL ENG SIDEエンジンサイド; G16A; 2000-04-01~2002-09-01 |
15850-66D00-000 |
US $68.08 |
||
|
9
|
9
15861-65D50-000 PIPE,FUEL RTNG16A; 2000-04-01~2002-09-01 |
15861-65D50-000 |
US $69.92 |
||
|
10
|
10
01550-06123-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp G16A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
15815-65D00-000 HOSE,FUEL FILTER INLETフィルタインレット; G16A; 2000-04-01~2002-09-01 |
15815-65D00-000 |
US $58.14 |
||
| replacement | |||||
|
11
|
11
15800-52810-000
HOSE SET,FUEL FILTER INLET
フィルタインレット; G16A; 2000-04-01~2002-09-01 |
15800-52810-000 |
— | ||
|
12
|
12
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>130; G16A; 2000-04-01~2002-09-01 |
09356-75147-600 |
US $51.68 |
||
|
13
|
13
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>290; G16A; 2000-04-01~2002-09-01 |
09356-75147-600 |
US $51.68 |
||
|
14
|
14
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>100; G16A; 2000-04-01~2002-09-01 |
09356-55117-600 |
US $69.60 |
||
|
15
|
15
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>290; G16A; 2000-04-01~2002-09-01 |
09356-55117-600 |
US $69.60 |
||
|
16
|
16
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>350; G16A; 2000-04-01~2002-09-01 |
09356-55117-600 |
US $69.60 |
||
|
17
|
17
09401-10409-000 CLIPG16A; 2000-04-01~2002-09-01 |
09401-10409-000 |
from US $1.12 |
||
|
18
|
18
09401-13419-000 CLIPG16A; 2000-07-01~2000-10-01 |
09401-13419-000 |
from US $1.60 |
||
|
18
|
18
09401-13418-000 CLIPG16A; 2000-04-01~2000-07-01 |
09401-13418-000 |
US $27.20 |
||
|
19
|
19
09408-00083-000 CLAMPG16A; 2000-04-01~2002-09-01 |
09408-00083-000 |
US $17.30 |
||
|
20
|
20
09408-00174-000 CLAMPG16A; 2000-04-01~2002-09-01 |
09408-00174-000 |
US $1.98 |
||
|
21
|
21
15893-60A11-000 CLAMP,FUEL PIPEG16A; 2000-04-01~2002-09-01 |
15893-60A11-000 |
US $2.24 |
||
|
22
|
22
15895-60A11-000 CLAMP,FUEL PIPEG16A; 2000-04-01~2002-09-01 |
15895-60A11-000 |
US $2.56 |
||
|
23
|
23
15893-56B00-000 CLAMP,FUEL PIPEG16A; 2000-04-01~2002-09-01 |
15893-56B00-000 |
US $2.43 |
||
