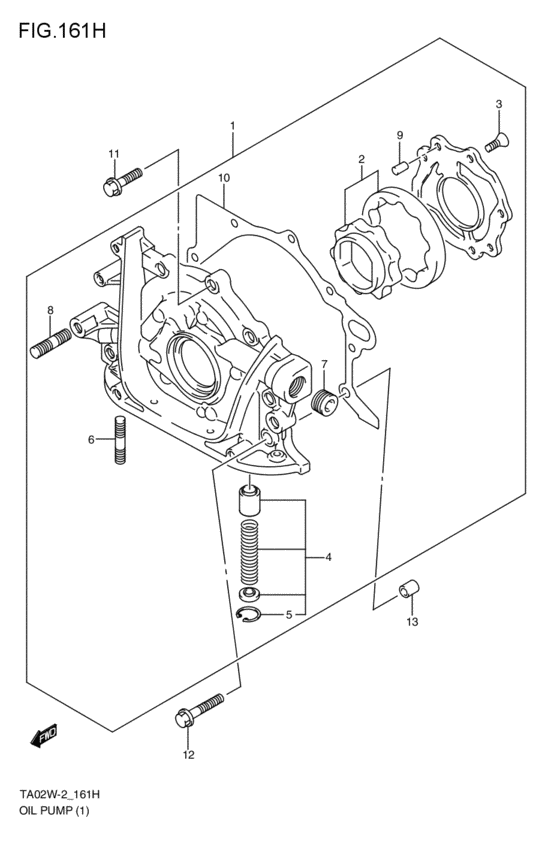

Oil pump (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-60817-000
ポンプセット,オイル
G16A; 2000-04-01~2002-09-01 |
16100-60817-000 |
— | ||
| replacement | |||||
|
1
|
1
16100-60840-000 PUMP SET,OILG16A; 2000-04-01~2002-09-01 |
16100-60840-000 |
from US $244.94 |
||
|
2
|
2
16130-60A00-000 ROTOR SET,OIL PUMPG16A; 2000-04-01~2002-09-01 |
16130-60A00-000 |
US $139.20 |
||
|
3
|
3
09126-06007-000 SCREW(6X14)Bolt G16A; 2000-04-01~2002-09-01 |
09126-06007-000 |
from US $3.21 |
||
|
4
|
4
16150-60A10-000
Valve set, oil pump relief
G16A; 2000-04-01~2002-09-01 |
16150-60A10-000 |
— | ||
| replacement | |||||
|
4
|
4
16150-60A20-000 VALVE SET,OIL PUMP RELIEFG16A; 2000-04-01~2002-09-01 |
16150-60A20-000 |
US $9.12 |
||
|
5
|
5
08331-41156-000
Circlip
G16A; 2000-04-01~2002-09-01 |
08331-41156-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-4115A-000 CIRCLIPG16A; 2000-04-01~2002-09-01 |
08331-4115A-000 |
US $1.60 |
||
|
6
|
6
01411-06123-000
Bolt, stud
G16A; 2000-04-01~2002-09-01 |
01411-06123-000 |
— | ||
| replacement | |||||
|
6
|
6
01411-0612A-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01411-0612A-000 |
from US $0.67 |
||
|
7
|
7
09246-08002-000 PLUGG16A; 2000-04-01~2002-09-01 |
09246-08002-000 |
US $1.76 |
||
|
8
|
8
01411-08203-000
Stud 8x20
G16A; 2000-04-01~2002-09-01 |
01411-08203-000 |
— | ||
| replacement | |||||
|
8
|
8
01411-0820B-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01411-0820B-000 |
US $1.12 |
||
|
9
|
9
04221-06129-000 PING16A; 2000-04-01~2002-09-01 |
04221-06129-000 |
from US $0.96 |
||
|
10
|
10
16119-60A05-000 GASKET,OIL PUMPG16A; 2000-04-01~2002-09-01 |
16119-60A05-000 |
US $16.80 |
||
|
11
|
11
01550-06253-000
Bolt (6x25)
G16A; 2000-04-01~2002-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0625B-000 BOLTBolt, head cover G16A; 2000-04-01~2002-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
11
|
11
01550-0625A-000 BOLTBolt G16A; 2000-04-01~2002-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
01550-06353-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06353-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0635B-000 BoltG16A; 2000-04-01~2002-09-01 |
01550-0635B-000 |
from US $0.91 |
||
|
12
|
12
01550-0635A-000 BoltG16A; 2000-04-01~2002-09-01 |
01550-0635A-000 |
from US $0.96 |
||
|
13
|
13
04211-09109-000 PINKnock pin G16A; 2000-04-01~2002-09-01 |
04211-09109-000 |
from US $0.96 |
||
