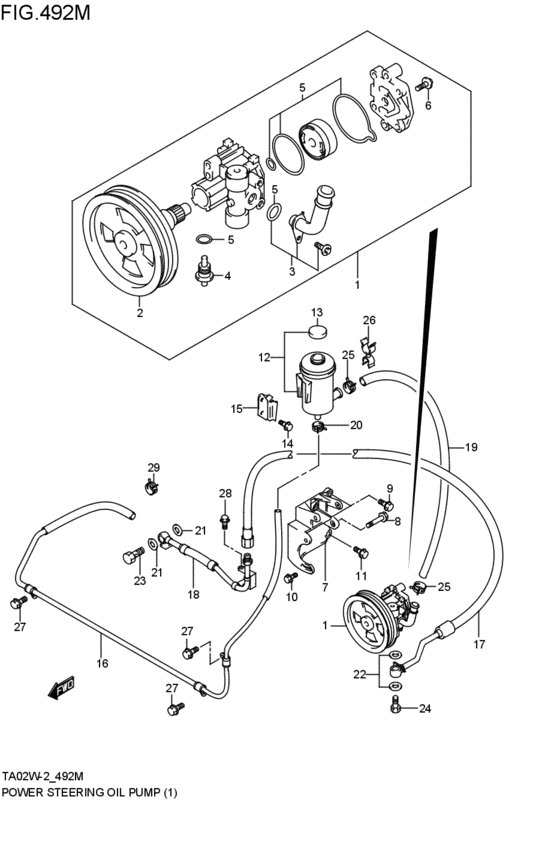

power steering oil pump (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-65D00-000 PUMP ASSY,POWER STEERINGG16A; 2000-04-01~2002-09-01 |
49100-65D00-000 |
US $880 |
||
|
2
|
2
49111-56B30-000 PULLEY SETG16A; 2000-04-01~2002-09-01 |
49111-56B30-000 |
US $140.58 |
||
|
3
|
3
49112-56B30-000 CONNECTOR SETG16A; 2000-04-01~2002-09-01 |
49112-56B30-000 |
US $50.78 |
||
|
4
|
4
49113-65D00-000 TERMINAL SETG16A; 2000-04-01~2002-09-01 |
49113-65D00-000 |
US $40.80 |
||
|
5
|
5
49114-56B30-000 SEAL SETG16A; 2000-04-01~2002-09-01 |
49114-56B30-000 |
from US $34.96 |
||
|
6
|
6
49115-56B30-000 BOLT SETG16A; 2000-04-01~2002-09-01 |
49115-56B30-000 |
US $10.56 |
||
|
7
|
7
49120-65D00-000 BRACKET,PUMPG16A; 2000-04-01~2002-09-01 |
49120-65D00-000 |
US $252.08 |
||
|
8
|
8
09103-08132-000
Bolt (8x100)
G16A; 2000-04-01~2002-09-01 |
09103-08132-000 |
— | ||
| replacement | |||||
|
8
|
8
09103-08230-000 BOLT(8X100)Bolt (8x100) G16A; 2000-04-01~2002-09-01 |
09103-08230-000 |
US $1.76 |
||
|
9
|
9
01550-10303-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-10303-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-1030B-000 BOLTBolt, axle housing rear G16A; 2000-04-01~2002-09-01 |
01550-1030B-000 |
from US $5.07 |
||
|
9
|
9
01550-1030A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-1030A-000 |
from US $1.12 |
||
|
10
|
10
01550-08253-000
Bolt, rear
G16A; 2000-04-01~2002-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825B-000 |
from US $0.96 |
||
|
10
|
10
01550-0825A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
01550-10353-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1035A-000 BOLTBolt, fr fork upper G16A; 2000-04-01~2002-09-01 |
01550-1035A-000 |
from US $5.68 |
||
|
12
|
12
49140-65D00-000
タンクアッシ,パワーステアリングオイル
G16A; 2000-04-01~2002-09-01 |
49140-65D00-000 |
— | ||
| replacement | |||||
|
12
|
12
49140-54J01-000 TANK ASSY,POWER STRG OILG16A; 2000-04-01~2002-09-01 |
49140-54J01-000 |
from US $59.45 |
||
|
13
|
13
49142-65D00-000 CAP,PS OIL TANKG16A; 2000-04-01~2002-09-01 |
49142-65D00-000 |
from US $5.02 |
||
|
14
|
14
02162-06123-000
Bolt (6x12)
G16A; 2000-04-01~2002-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
02162-0612B-000 SCREWBolt G16A; 2000-04-01~2002-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
14
|
14
02162-0612A-000 SCREWBolt, bracket G16A; 2000-04-01~2002-09-01 |
02162-0612A-000 |
from US $0.80 |
||
|
15
|
15
49150-65D00-000 BRACKET,RESERVE TANKG16A; 2000-04-01~2002-09-01 |
49150-65D00-000 |
US $20.61 |
||
|
16
|
16
49220-65D00-000
HOSE ASSY,RETURN
G16A; 2000-04-01~2002-09-01 |
49220-65D00-000 |
— | ||
|
17
|
17
49230-65D00-000 HOSE,PRESSURE PUMP SIDEG16A; 2000-04-01~2002-09-01 |
49230-65D00-000 |
US $406.40 |
||
|
18
|
18
49210-65D00-000 HOSE,PRESSURE RACK SIDEG16A; 2000-04-01~2002-09-01 |
49210-65D00-000 |
US $198.72 |
||
|
19
|
19
49214-65D00-000 HOSE,SUCTIONG16A; 2000-04-01~2002-09-01 |
49214-65D00-000 |
US $30.54 |
||
|
20
|
20
09401-15404-000 CLIPG16A; 2000-04-01~2002-09-01 |
09401-15404-000 |
from US $1.06 |
||
|
21
|
21
09168-14014-000 GASKET(14X18X1.5)G16A; 2000-04-01~2002-09-01 |
09168-14014-000 |
from US $0.92 |
||
|
22
|
22
09168-16002-000 GASKET(16X22X2)G16A; 2000-04-01~2002-09-01 |
09168-16002-000 |
from US $0.90 |
||
|
23
|
23
09360-14011-000 UNIONG16A; 2000-04-01~2002-09-01 |
09360-14011-000 |
US $13.44 |
||
|
24
|
24
09360-16003-000 UNIONG16A; 2000-04-01~2002-09-01 |
09360-16003-000 |
from US $5.94 |
||
|
25
|
25
09401-20405-000 CLIPClip, tank G16A; 2000-04-01~2002-09-01 |
09401-20405-000 |
from US $5.56 |
||
|
26
|
26
09408-00176-000 CLAMPG16A; 2000-04-01~2002-09-01 |
09408-00176-000 |
US $2.59 |
||
|
27
|
27
02162-06203-000
Bolt
G16A; 2000-04-01~2002-09-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
27
|
27
02162-0620C-000 SCREWG16A; 2000-04-01~2002-09-01 |
02162-0620C-000 |
from US $0.80 |
||
|
28
|
28
02162-06123-000
Bolt (6x12)
G16A; 2000-04-01~2002-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
28
|
28
02162-0612B-000 SCREWBolt G16A; 2000-04-01~2002-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket G16A; 2000-04-01~2002-09-01 |
02162-0612A-000 |
from US $0.80 |
||
|
29
|
29
49225-65D10-000 CLAMP,RETURN GEAR SIDEG16A; 2000-04-01~2002-09-01 |
49225-65D10-000 |
US $2.98 |
||
