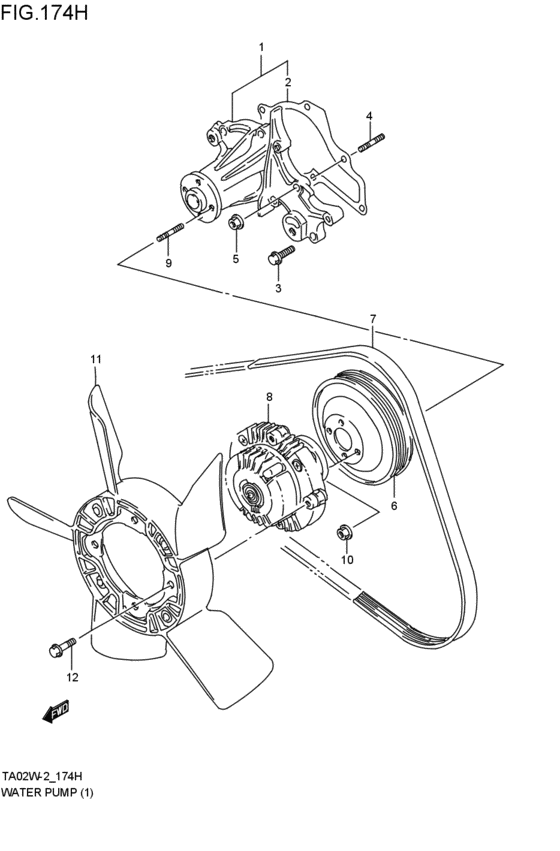

water pump (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-61820-000 PUMP SET,WATERG16A; 2000-04-01~2002-09-01 |
17400-61820-000 |
from US $103.66 |
||
|
2
|
2
17431-60A00-000 GASKET,WATER PUMPG16A; 2000-04-01~2002-09-01 |
17431-60A00-000 |
from US $3.80 |
||
|
3
|
3
09103-06066-000 BOLT(6X23)Bolt (6x23) G16A; 2000-04-01~2002-09-01 |
09103-06066-000 |
US $0.96 |
||
|
4
|
4
01421-06203-000
Stud bolt (l:20)(green)
G16A; 2000-04-01~2002-09-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0620A-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01421-0620A-000 |
from US $1.12 |
||
|
5
|
5
08316-10063-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
17511-57B00-000 PULLEY,WATER PUMPG16A; 2000-04-01~2002-09-01 |
17511-57B00-000 |
from US $22.70 |
||
|
7
|
7
17521-86500-000 V-BELT (4PK815)G16A; 2000-04-01~2002-09-01 |
17521-86500-000 |
from US $18.05 |
||
|
8
|
8
17120-57B01-000 CLUTCH ASSY,FANG16A; 2000-04-01~2002-09-01 |
17120-57B01-000 |
US $211.60 |
||
|
9
|
9
01411-06203-000
New Genuine Part
G16A; 2000-04-01~2002-09-01 |
01411-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01411-0620A-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01411-0620A-000 |
US $0.91 |
||
|
10
|
10
08316-10063-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
17110-60A00-000 FAN,ENG COOLINGG16A; 2000-04-01~2002-09-01 |
17110-60A00-000 |
US $56.67 |
||
|
12
|
12
01550-06203-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BOLTBolt, inspection cap G16A; 2000-04-01~2002-09-01 |
01550-0620B-000 |
from US $0.76 |
||
