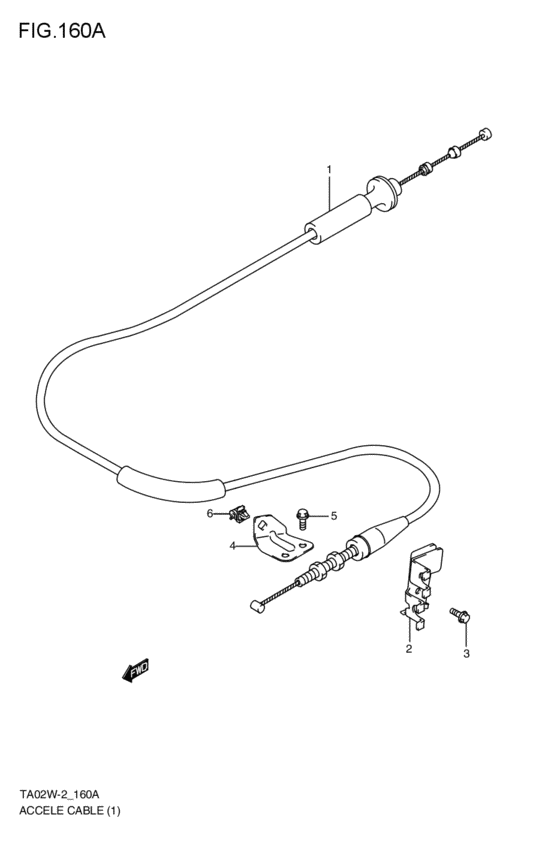

accelerator cable (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-65D02-000
ケーブルアッシ,アクセル
G16A; 2000-04-01~2002-09-01 |
15910-65D02-000 |
— | ||
| replacement | |||||
|
1
|
1
15910-65D03-000 CABLE ASSY,ACCELG16A; 2000-04-01~2002-09-01 |
15910-65D03-000 |
from US $42.69 |
||
|
2
|
2
15919-65D00-000 GUIDE,ACCEL CABLEG16A; 2000-04-01~2002-09-01 |
15919-65D00-000 |
US $13.87 |
||
|
3
|
3
09103-06186-000
Bolt
G16A; 2000-04-01~2002-09-01 |
09103-06186-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-06167-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-06167-000 |
from US $0.68 |
||
|
4
|
4
15918-66D10-000
BRACKET,ACCEL CABLE CLAMP
G16A; 2000-04-01~2002-09-01 |
15918-66D10-000 |
— | ||
|
5
|
5
01550-06123-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp G16A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
09403-05313-000
Clip, band
G16A; 2000-04-01~2002-09-01 |
09403-05313-000 |
— | ||
| replacement | |||||
|
6
|
6
18214-75F00-000 CLAMPG16A; 2000-04-01~2002-09-01 |
18214-75F00-000 |
from US $1.82 |
||
