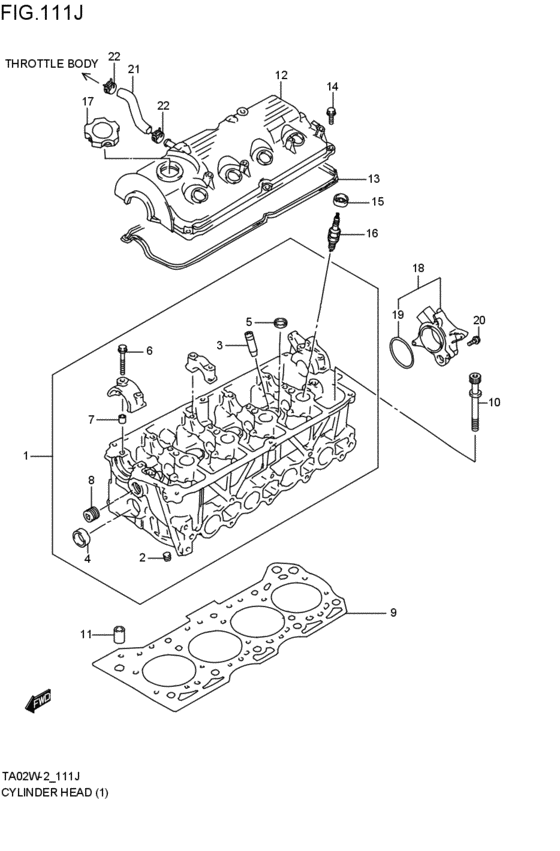

Cylinder head (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-52G01-000 HEAD ASSY,CYLINDERG16A; 2000-04-01~2002-09-01 |
11100-52G01-000 |
US $2,240 |
||
|
2
|
2
11112-73002-000
Plug, oil venturi
G16A; 2000-04-01~2002-09-01 |
11112-73002-000 |
— | ||
| replacement | |||||
|
2
|
2
11112-73010-000 PLUG,OIL VENTURIG16A; 2000-04-01~2002-09-01 |
11112-73010-000 |
US $1.60 |
||
|
3
|
3
11115-60B11-001 GUIDE,VALVEG16A; 2000-04-01~2002-09-01 |
11115-60B11-001 |
US $12.73 |
||
|
4
|
4
09241-30009-000
Plug
G16A; 2000-04-01~2002-09-01 |
09241-30009-000 |
— | ||
| replacement | |||||
|
4
|
4
09241-30010-000 PLUGG16A; 2000-04-01~2002-09-01 |
09241-30010-000 |
US $2.40 |
||
|
5
|
5
09241-20006-000 PLUGPlug, crank pin oil G16A; 2000-04-01~2002-09-01 |
09241-20006-000 |
from US $1.44 |
||
|
6
|
6
09103-06132-000 BOLT(6X41)G16A; 2000-04-01~2002-09-01 |
09103-06132-000 |
from US $1.17 |
||
|
7
|
7
09206-08001-000 PIN(8X11)G16A; 2000-04-01~2002-09-01 |
09206-08001-000 |
from US $1.26 |
||
|
8
|
8
09246-16010-000 PLUGG16A; 2000-04-01~2002-09-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
8
|
8
09246-16021-000 Plug,t/m Oil DrainG16A; 2000-04-01~2002-09-01 |
09246-16021-000 |
from US $4.01 |
||
|
9
|
9
11141-71C00-000 GASKET,CYL HEADG16A; 2000-04-01~2002-09-01 |
11141-71C00-000 |
from US $74.99 |
||
|
10
|
10
11117-73G00-000 BOLT,CYLINDER HEADG16A; 2000-04-01~2002-09-01 |
11117-73G00-000 |
from US $4.32 |
||
|
11
|
11
04211-13189-000 PING16A; 2000-04-01~2002-09-01 |
04211-13189-000 |
from US $1.19 |
||
|
12
|
12
11170-66D00-000
カバー,シリンダヘッド
G16A; 2000-04-01~2002-09-01 |
11170-66D00-000 |
— | ||
| replacement | |||||
|
12
|
12
11170-66D10-000 Cover,cylinder headG16A; 2000-04-01~2002-09-01 |
11170-66D10-000 |
US $371.68 |
||
|
13
|
13
11189-71C00-000 GASKET,CYL HEAD COVERGasket, cylinder head cover G16A; 2000-04-01~2002-09-01 |
11189-71C00-000 |
from US $11.12 |
||
|
14
|
14
11178-71C10-000 BOLT,CYLINDER HEAD COVERG16A; 2000-04-01~2002-09-01 |
11178-71C10-000 |
from US $1.17 |
||
|
15
|
15
11179-71C01-000 O-RINGG16A; 2000-04-01~2002-09-01 |
11179-71C01-000 |
from US $1.98 |
||
|
16
|
16
09482-00550-000 PLUG,SPARK(NGK IFR6J11)NGK; G16A; 2000-04-01~2002-09-01 |
09482-00550-000 |
from US $25.84 |
||
|
17
|
17
16920-69G10-000
キャップ,オイルフィラ
G16A; 2000-04-01~2002-09-01 |
16920-69G10-000 |
— | ||
| replacements | |||||
|
17
|
17
16920-83G00-000
Cap,oil filler
G16A; 2000-04-01~2002-09-01 |
16920-83G00-000 |
— | ||
|
17
|
17
16920-83G01-000
CAP OIL FILLER
G16A; 2000-04-01~2002-09-01 |
16920-83G01-000 |
— | ||
|
18
|
18
11160-52810-000 CASE SET,DLI SENSORG16A; 2000-04-01~2002-09-01 |
11160-52810-000 |
US $132 |
||
|
19
|
19
11162-71C10-000 O-RING,CASEO ring, dli sensor case G16A; 2000-04-01~2002-09-01 |
11162-71C10-000 |
from US $2.24 |
||
|
20
|
20
01550-06253-000
Bolt (6x25)
G16A; 2000-04-01~2002-09-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0625B-000 BOLTBolt, head cover G16A; 2000-04-01~2002-09-01 |
01550-0625B-000 |
from US $0.91 |
||
|
20
|
20
01550-0625A-000 BOLTBolt G16A; 2000-04-01~2002-09-01 |
01550-0625A-000 |
from US $0.96 |
||
|
21
|
21
11191-66D00-000 HOSE,BREATHERG16A; 2000-04-01~2002-09-01 |
11191-66D00-000 |
US $19.20 |
||
|
22
|
22
09401-18404-000 CLIPG16A; 2000-04-01~2002-09-01 |
09401-18404-000 |
from US $1.33 |
||
