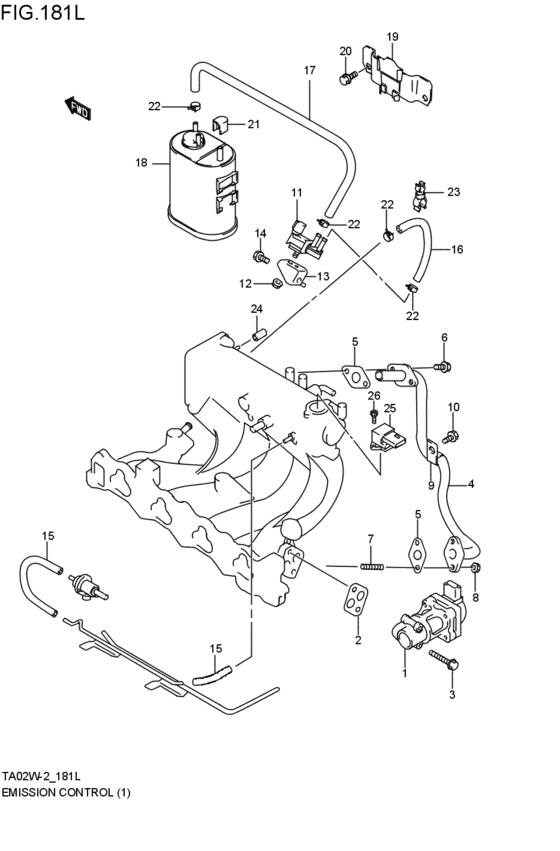

emission control (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-77E00-000
Valve, egr
G16A; 2000-04-01~2002-09-01 |
18111-77E00-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-77E02-000 VALVE,EGRG16A; 2000-04-01~2002-09-01 |
18111-77E02-000 |
from US $282.71 |
||
|
2
|
2
18529-77E01-000 GASKET,EGR VALVEG16A; 2000-04-01~2002-09-01 |
18529-77E01-000 |
from US $2.39 |
||
|
3
|
3
01550-08503-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 BoltG16A; 2000-04-01~2002-09-01 |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
18530-66D00-000 PIPE,EGRG16A; 2000-04-01~2002-09-01 |
18530-66D00-000 |
US $79.49 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPEG16A; 2000-04-01~2002-09-01 |
18533-77E00-000 |
US $2.28 |
||
|
6
|
6
01550-06163-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0616B-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
6
|
6
01550-0616A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
7
|
7
01421-06163-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
01421-0616A-000 BOLT,STUDG16A; 2000-04-01~2002-09-01 |
01421-0616A-000 |
from US $1.07 |
||
|
8
|
8
08316-10063-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
18536-85300-000 CLAMP,EGR PIPEG16A; 2000-04-01~2002-09-01 |
18536-85300-000 |
US $3.64 |
||
|
10
|
10
01550-06123-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0612B-000 BOLTBolt, clamp G16A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
10
|
10
01550-0612A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
11
|
11
18117-52G00-000 VALVE ASSY,DUTY FOR PURGEValve assy, evap purge G16A; 2000-04-01~2002-09-01 |
18117-52G00-000 |
from US $70.63 |
||
|
12
|
12
08316-10063-000
Nut
G16A; 2000-04-01~2002-09-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUTG16A; 2000-04-01~2002-09-01 |
08316-1006B-000 |
from US $0.76 |
||
|
13
|
13
18417-66D00-000 BRACKET,PURGE VALVEG16A; 2000-04-01~2002-09-01 |
18417-66D00-000 |
US $7.25 |
||
|
14
|
14
01550-06123-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BOLTBolt, clamp G16A; 2000-04-01~2002-09-01 |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:601>120; G16A; 2000-04-01~2002-09-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:601>120; G16A; 2000-04-01~2002-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>180; G16A; 2000-04-01~2002-09-01 |
09355-54115-600 |
from US $7.20 |
||
|
17
|
17
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>290; G16A; 2000-04-01~2002-09-01 |
09355-54115-600 |
from US $7.20 |
||
|
18
|
18
18560-76A31-000 CANISTERG16A; 2000-04-01~2002-09-01 |
18560-76A31-000 |
from US $84.02 |
||
|
19
|
19
18570-54D00-000
BRACKET,CANISTER
G16A; 2000-04-01~2002-09-01 |
18570-54D00-000 |
— | ||
|
20
|
20
01550-08123-000
Bolt
G16A; 2000-04-01~2002-09-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0812B-000 BoltPlug, drain G16A; 2000-04-01~2002-09-01 |
01550-0812B-000 |
from US $0.96 |
||
|
20
|
20
01550-0812A-000 BOLTG16A; 2000-04-01~2002-09-01 |
01550-0812A-000 |
from US $0.91 |
||
|
21
|
21
18571-65D00-000 CAP,CANISTERG16A; 2000-04-01~2002-09-01 |
18571-65D00-000 |
US $8.48 |
||
|
22
|
22
09401-10409-000 CLIPG16A; 2000-04-01~2002-09-01 |
09401-10409-000 |
from US $1.12 |
||
|
23
|
23
09408-00138-000 CLAMPG16A; 2000-04-01~2002-09-01 |
09408-00138-000 |
US $27.20 |
||
|
24
|
24
09250-04003-000 PLUG(OD:8)Plug (od:8) G16A; 2000-04-01~2002-09-01 |
09250-04003-000 |
US $1.12 |
||
| replacement | |||||
|
24
|
24
07130-0510B-000 BOLTBolt, sensor G16A; 2000-04-01~2002-09-01 |
07130-0510B-000 |
from US $0.96 |
||
|
25
|
25
18590-72F21-000
SENSOR,PRESSURE
G16A; 2000-04-01~2002-09-01 |
18590-72F21-000 |
— | ||
| replacement | |||||
|
25
|
25
18590-68H00-000 SENSOR,PRESSURESensor, pressure G16A; 2000-04-01~2002-09-01 |
18590-68H00-000 |
from US $196.47 |
||
|
26
|
26
07130-05163-000
Bolt
G16A; 2000-04-01~2002-09-01 |
07130-05163-000 |
— | ||
| replacement | |||||
|
26
|
26
07130-0516A-000 BoltG16A; 2000-04-01~2002-09-01 |
07130-0516A-000 |
from US $3.67 |
||
