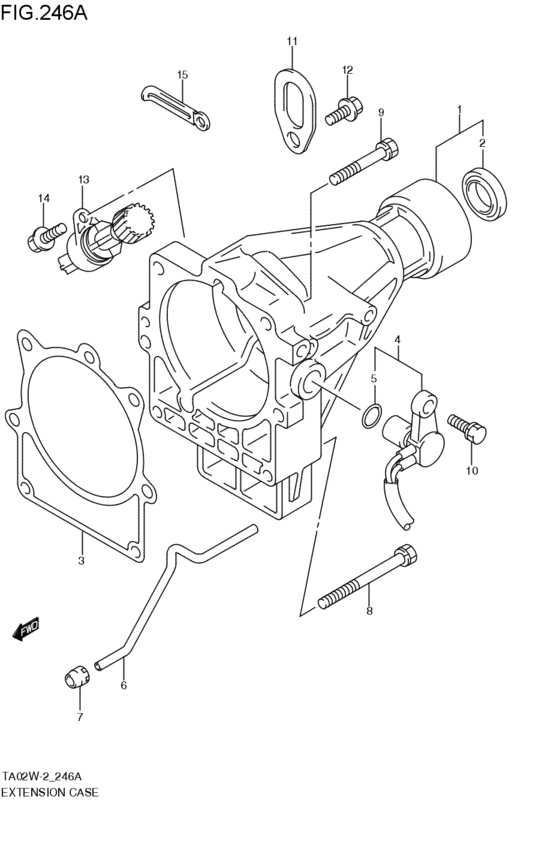

extension case (AT:2WD; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24770-57BG0-000 CASE ASSY,EXTENSIONAT:2WD; 2000-04-01~2002-09-01 |
24770-57BG0-000 |
US $841.28 |
||
|
2
|
2
29792-57BG0-000 OIL SEAL,EXTENSIONAT:2WD; 2000-04-01~2002-09-01 |
29792-57BG0-000 |
from US $20.24 |
||
|
3
|
3
24784-57B00-000 GASKET,ADAPTOR T/M CASEAT:2WD; 2000-04-01~2002-09-01 |
24784-57B00-000 |
from US $19.87 |
||
|
4
|
4
24791-57B00-000 SENSOR,SPEEDAT:2WD; 2000-04-01~2002-09-01 |
24791-57B00-000 |
US $342.16 |
||
|
5
|
5
29725-57B00-000 O-RING,SPEED SENSORAT:2WD; 2000-04-01~2002-09-01 |
29725-57B00-000 |
US $8.10 |
||
|
6
|
6
26535-57BG0-000 TUBE,EXTENSION HOUSINGAT:2WD; 2000-04-01~2002-09-01 |
26535-57BG0-000 |
US $12.36 |
||
|
7
|
7
29846-57BG0-000 PACKING,EXTENSION HOUSINGAT:2WD; 2000-04-01~2002-09-01 |
29846-57BG0-000 |
US $5.48 |
||
|
8
|
8
29972-57BG0-000
Bolt
AT:2WD; 2000-04-01~2002-09-01 |
29972-57BG0-000 |
— | ||
|
9
|
9
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3AT:2WD; 2000-04-01~2002-09-01 |
29972-57B00-000 |
US $16.34 |
||
|
10
|
10
29989-57B00-000 BoltAT:2WD; 2000-04-01~2002-09-01 |
29989-57B00-000 |
US $5.59 |
||
|
11
|
11
11851-62B00-000 HOOKAT:2WD; 2000-04-01~2002-09-01 |
11851-62B00-000 |
US $5.02 |
||
|
12
|
12
01550-08163-000
Bolt, holder
AT:2WD; 2000-04-01~2002-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0816B-000 BOLTAT:2WD; 2000-04-01~2002-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
12
|
12
01550-0816A-000 BOLTBolt, rear AT:2WD; 2000-04-01~2002-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
34910-65D60-000
Sensor assy,speed
AT:2WD; 2000-04-01~2002-09-01 |
34910-65D60-000 |
— | ||
| replacement | |||||
|
13
|
13
34910-65D61-000 SENSOR ASSY,SPEEDAT:2WD; 2000-04-01~2002-09-01 |
34910-65D61-000 |
US $151.62 |
||
|
14
|
14
01550-08163-000
Bolt, holder
AT:2WD; 2000-04-01~2002-09-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0816B-000 BOLTAT:2WD; 2000-04-01~2002-09-01 |
01550-0816B-000 |
from US $0.91 |
||
|
14
|
14
01550-0816A-000 BOLTBolt, rear AT:2WD; 2000-04-01~2002-09-01 |
01550-0816A-000 |
from US $0.91 |
||
|
15
|
15
24734-65D10-000 CLAMP,WIRE HARNESSAT:2WD; 2000-04-01~2002-09-01 |
24734-65D10-000 |
US $2.72 |
||
