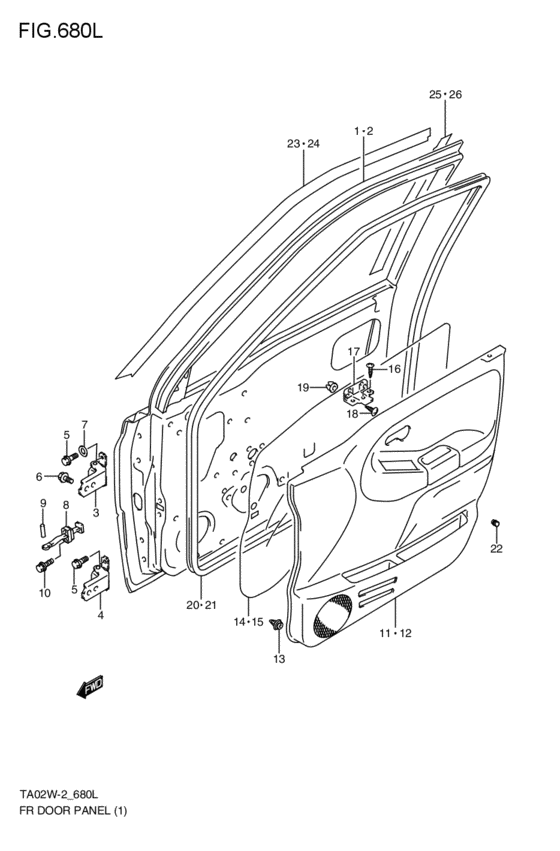

front door panel (3DR; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-66D11-000
パネルアッシ,フロントドア,ライト
3DR; 2000-04-01~2002-09-01 |
68001-66D11-000 |
— | ||
|
2
|
2
68002-66D11-000
PANEL ASSY,FRONT DOOR,L
3DR; 2000-04-01~2002-09-01 |
68002-66D11-000 |
— | ||
|
3
|
3
69310-65D00-000 HINGE,FR DOOR,NO.1アッパ ライト; 3DR; 2000-04-01~2002-09-01 |
69310-65D00-000 |
US $41.95 |
||
|
3
|
3
69320-65D00-000 HINGE,FR DOOR,NO.2アッパ レフト; 3DR; 2000-04-01~2002-09-01 |
69320-65D00-000 |
US $41.95 |
||
|
4
|
4
69310-65D00-000 HINGE,FR DOOR,NO.1ロア レフト; 3DR; 2000-04-01~2002-09-01 |
69310-65D00-000 |
US $41.95 |
||
|
4
|
4
69320-65D00-000 HINGE,FR DOOR,NO.2ロア ライト; 3DR; 2000-04-01~2002-09-01 |
69320-65D00-000 |
US $41.95 |
||
|
5
|
5
09103-08389-000 BOLT(8X24)3DR; 2000-04-01~2002-09-01 |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
01551-08203-000
Bolt
3DR; 2000-04-01~2002-09-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
6
|
6
01551-0820A-000 BOLT3DR; 2000-04-01~2002-09-01 |
01551-0820A-000 |
from US $0.96 |
||
|
7
|
7
69480-65D00-000
Washer
3DR; 2000-04-01~2002-09-01 |
69480-65D00-000 |
— | ||
|
8
|
8
81810-65D00-000 STOP,FRONT DOOR OPEN3DR; 2000-04-01~2002-09-01 |
81810-65D00-000 |
US $37.24 |
||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY3DR; 2000-04-01~2002-09-01 |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
01580-06203-000
Bolt
3DR; 2000-04-01~2002-09-01 |
01580-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0620B-000 BOLT3DR; 2000-04-01~2002-09-01 |
01580-0620B-000 |
from US $4.49 |
||
|
11
|
11
83710-66DC0-DV2
トリム,フロントドア,ライト
グレー; 3DR; 2000-04-01~2002-09-01 |
83710-66DC0-DV2 |
— | ||
| replacement | |||||
|
11
|
11
83710-66DC2-DV2
Trim,front door,r
グレー; 3DR; 2000-04-01~2002-09-01 |
83710-66DC2-DV2 |
— | ||
|
12
|
12
83720-66DG0-DV2
トリム,フロントドア,レフト
グレー; 3DR; 2000-04-01~2002-09-01 |
83720-66DG0-DV2 |
— | ||
| replacement | |||||
|
12
|
12
83720-66DG1-DV2
TRIM,FRONT DOOR,L
グレー; 3DR; 2000-04-01~2002-09-01 |
83720-66DG1-DV2 |
— | ||
|
13
|
13
09409-08320-000 CLIP3DR; 2000-04-01~2002-09-01 |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
83911-66D00-000 COVER,FR DR SEALING,R3DR; 2000-04-01~2002-09-01 |
83911-66D00-000 |
US $13.28 |
||
|
15
|
15
83912-66D00-000 COVER,FR DR SEALING,L3DR; 2000-04-01~2002-09-01 |
83912-66D00-000 |
US $13.28 |
||
|
16
|
16
03142-04163-000
Screw
3DR; 2000-04-01~2002-09-01 |
03142-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0416A-000 SCREW3DR; 2000-04-01~2002-09-01 |
03141-0416A-000 |
from US $0.80 |
||
|
17
|
17
84482-65D00-000 BRACKET,DR INSIDE PULL HANDLE3DR; 2000-04-01~2002-09-01 |
84482-65D00-000 |
US $4.16 |
||
|
18
|
18
03242-06163-000
Screw
3DR; 2000-04-01~2002-09-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0616C-000 SCREW3DR; 2000-04-01~2002-09-01 |
03241-0616C-000 |
from US $0.76 |
||
|
19
|
19
09148-06007-000 NUT3DR; 2000-04-01~2002-09-01 |
09148-06007-000 |
from US $0.86 |
||
|
20
|
20
84641-66D00-000 WEATHERSTRIP,FR DR OPNG,R3DR; 2000-04-01~2002-09-01 |
84641-66D00-000 |
US $98.99 |
||
|
21
|
21
84651-66D00-000 WEATHERSTRIP,FR DR OPNG,L3DR; 2000-04-01~2002-09-01 |
84651-66D00-000 |
US $161.60 |
||
|
22
|
22
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 3DR; 2000-04-01~2002-09-01 |
82711-56B00-000 |
US $2.88 |
||
|
23
|
23
83921-66D00-0CB TAPE,FR DOOR SASH,Rブラック; 3DR; 2000-04-01~2002-09-01 |
83921-66D00-0CB |
US $59.98 |
||
|
24
|
24
83922-66D00-0CB TAPE,FR DOOR SASH,Lブラック; 3DR; 2000-04-01~2002-09-01 |
83922-66D00-0CB |
US $59.98 |
||
|
25
|
25
83923-66D00-0CB TAPE,FR DOOR PILLAR,Rブラック; 3DR; 2000-04-01~2002-09-01 |
83923-66D00-0CB |
US $30.18 |
||
|
26
|
26
83924-66D00-0CB
TAPE,FR DOOR PILLAR,L
ブラック; 3DR; 2000-04-01~2002-09-01 |
83924-66D00-0CB |
— | ||
