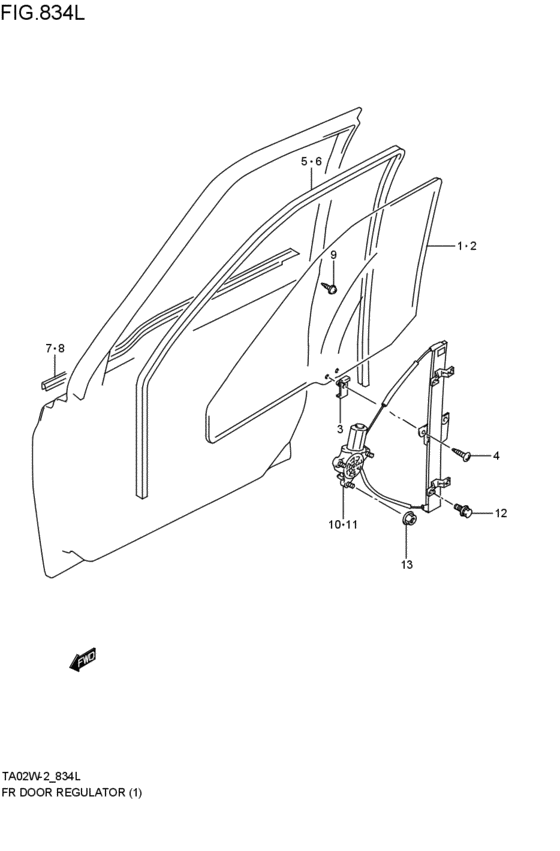

front door regulator (3DR; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-66D30-000
ガラス,フロントドアウィンド,ライト
ASAHI; 3DR; 2000-04-01~2002-09-01 |
84531-66D30-000 |
— | ||
| replacement | |||||
|
1
|
1
84531-66D31-000
ガラス,フロントドアウィンド,ライト
ASAHI; 3DR; 2000-04-01~2002-09-01 |
84531-66D31-000 |
— | ||
|
2
|
2
84536-66D30-000
ガラス,フロントドアウィンド,レフト
ASAHI; 3DR; 2000-04-01~2002-09-01 |
84536-66D30-000 |
— | ||
| replacement | |||||
|
2
|
2
84536-66D31-000
ガラス,フロントドアウィンド,レフト
ASAHI; 3DR; 2000-04-01~2002-09-01 |
84536-66D31-000 |
— | ||
|
3
|
3
83611-65D00-000 HOLDER,SIDE DOOR GLASS3DR; 2000-04-01~2002-09-01 |
83611-65D00-000 |
US $2.08 |
||
|
4
|
4
03241-06203-000
スクリュ
3DR; 2000-04-01~2002-09-01 |
03241-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0620A-000 SCREW3DR; 2000-04-01~2002-09-01 |
03241-0620A-000 |
US $0.80 |
||
|
5
|
5
83660-66D00-000 RUN,FR DOOR GLASS,R3DR; 2000-04-01~2002-09-01 |
83660-66D00-000 |
US $94.24 |
||
|
6
|
6
83680-66D00-000 RUN,FR DOOR GLASS,L3DR; 2000-04-01~2002-09-01 |
83680-66D00-000 |
US $94.24 |
||
|
7
|
7
83810-66D00-000 WEATHERSTRIP,FR DR OUT,R3DR; 2000-04-01~2002-09-01 |
83810-66D00-000 |
US $148 |
||
|
8
|
8
83820-66D00-000 WEATHERSTRIP,FR DR OUT,L3DR; 2000-04-01~2002-09-01 |
83820-66D00-000 |
US $148 |
||
|
9
|
9
09136-05059-000 SCREW(5X12)3DR; 2000-04-01~2002-09-01 |
09136-05059-000 |
US $15.50 |
||
|
10
|
10
83401-65D10-000 REGULATOR ASSY,FR WINDOW,R3DR:G16A; 2000-04-01~2002-09-01 |
83401-65D10-000 |
US $437.76 |
||
|
11
|
11
83402-65D10-000 REGULATOR ASSY,FR WINDOW,L3DR; 2000-04-01~2002-09-01 |
83402-65D10-000 |
from US $366.23 |
||
|
12
|
12
01580-06123-000
Bolt
3DR; 2000-04-01~2002-09-01 |
01580-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01580-0612B-000 Bolt3DR; 2000-04-01~2002-09-01 |
01580-0612B-000 |
US $0.96 |
||
|
12
|
12
01580-0612A-000 Bolt3DR; 2000-04-01~2002-09-01 |
01580-0612A-000 |
from US $0.91 |
||
|
13
|
13
08361-15063-000
Nut
3DR; 2000-04-01~2002-09-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
13
|
13
08361-1506A-000 NUT3DR; 2000-04-01~2002-09-01 |
08361-1506A-000 |
from US $0.74 |
||
