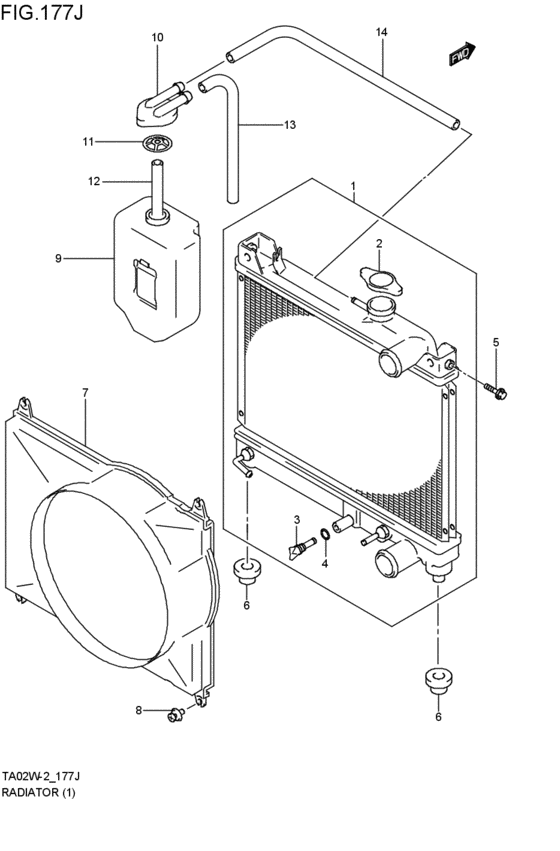

radiator (G16A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-66D11-000
ラジエータアッシ
G16A:AT; 2000-04-01~2002-09-01 |
17700-66D11-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-66D12-000 RADIATOR ASSYG16A:AT; 2000-04-01~2002-09-01 |
17700-66D12-000 |
US $531.52 |
||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.1G16A; 2000-04-01~2002-09-01 |
17920-66F01-000 |
from US $22.55 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAING16A; 2000-04-01~2002-09-01 |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RINGG16A; 2000-04-01~2002-09-01 |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
02162-06253-000
Bolt
G16A; 2000-04-01~2002-09-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0625A-000 SCREWG16A; 2000-04-01~2002-09-01 |
02162-0625A-000 |
from US $0.76 |
||
|
6
|
6
17812-82000-000 BUSHING,RADIATOR SUPPORTG16A; 2000-04-01~2002-09-01 |
17812-82000-000 |
from US $1.80 |
||
|
7
|
7
17761-66D01-000 SHROUD,FANG16A; 2000-04-01~2002-09-01 |
17761-66D01-000 |
US $50.05 |
||
|
8
|
8
17795-65D00-000 CLIP,FAN SHROUDG16A; 2000-04-01~2002-09-01 |
17795-65D00-000 |
from US $1.37 |
||
|
9
|
9
17931-65D00-000 TANK,WATER RESERVEG16A; 2000-04-01~2002-09-01 |
17931-65D00-000 |
from US $30.89 |
||
|
10
|
10
17932-60G10-000 CAP,WATER RESERVE TANKG16A; 2000-04-01~2002-09-01 |
17932-60G10-000 |
US $6.08 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap G16A; 2000-04-01~2002-09-01 |
17933-60B00-000 |
from US $1.85 |
||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:600>190; G16A; 2000-04-01~2002-09-01 |
09352-70111-600 |
from US $6.84 |
||
|
13
|
13
17939-65D00-000 HOSE,RSVR TANK VENTG16A; 2000-04-01~2002-09-01 |
17939-65D00-000 |
US $7.25 |
||
|
14
|
14
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>540; G16A; 2000-04-01~2002-09-01 |
09352-70121-600 |
from US $4.84 |
||
